ADP1052
Data Sheet
Rev. B | Page 12 of 113
TYPICAL PERFORMANCE CHARACTERISTICS
–60
–40
–20
0
20
40
TEMPERATURE (°C)
60
80
100
120
140
MAX SPEC
MIN SPEC
MAX
MEAN
MIN
2.5
2.0
1.5
0.5
–0.5
1.0
0
–1.0
–1.5
–2.0
–2.5

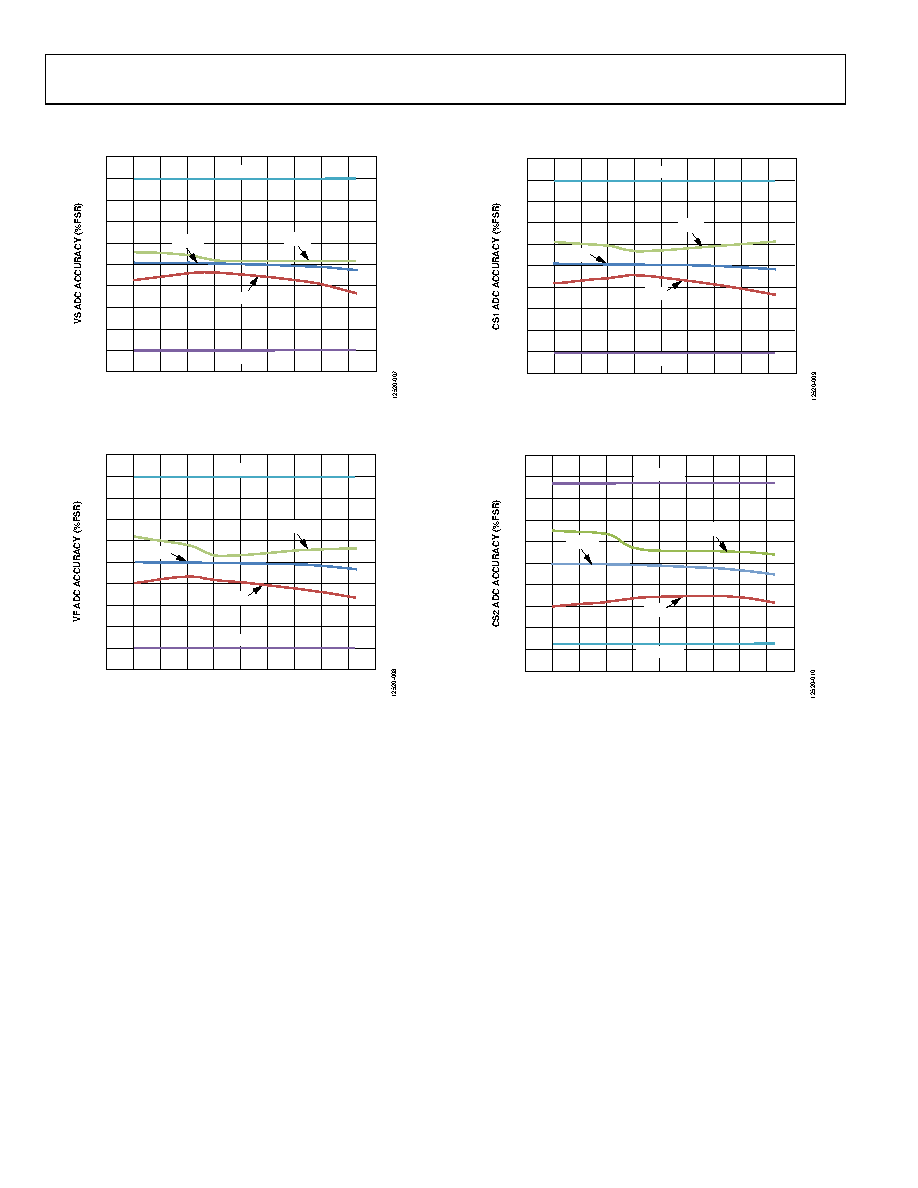

Figure 4. VS ADC Accuracy vs. Temperature (From 10% to 90% of FSR)
–60
–40
–20
0
20
40
TEMPERATURE (°C)
60
80
100
120
140
MAX SPEC
MIN SPEC
MAX
MEAN
MIN
2.5
2.0
1.5
0.5
–0.5
1.0
0
–1.0
–1.5
–2.0
–2.5
Figure 5. VF ADC Accuracy vs. Temperature (From 10% to 90% of FSR)
–60
–40
–20
0
20
40
TEMPERATURE (°C)
60
80
100
120
140
MAX SPEC
MIN SPEC
MAX
MEAN
MIN
2.5
2.0
1.5
0.5
–0.5
1.0
0
–1.0
–1.5
–2.0
–2.5
Figure 6. CS1 ADC Accuracy vs. Temperature (From 10%to 90% of FSR)
–60
–40
–20
0
20
40
TEMPERATURE (°C)
60
80
100
120
140
MAX SPEC
MIN SPEC
MIN
2.5
2.0
1.5
0.5
–0.5
1.0
0
–1.0
–1.5
–2.0
–2.5
MEAN
MAX
Figure 7. CS2 ADC Accuracy vs. Temperature (From 0 mV to 120 mV)
