ADP1055

Data Sheet

Rev. A | Page 34 of 140

PWM edges to be adapted on the fly. The ADT feature is activated

when the primary or secondary current (CS1 or CS2) falls below

the threshold programmed in Register 0xFE1E. The software

GUI allows the user to easily program the dead time values, and

it is recommended that the GUI be used for this purpose.

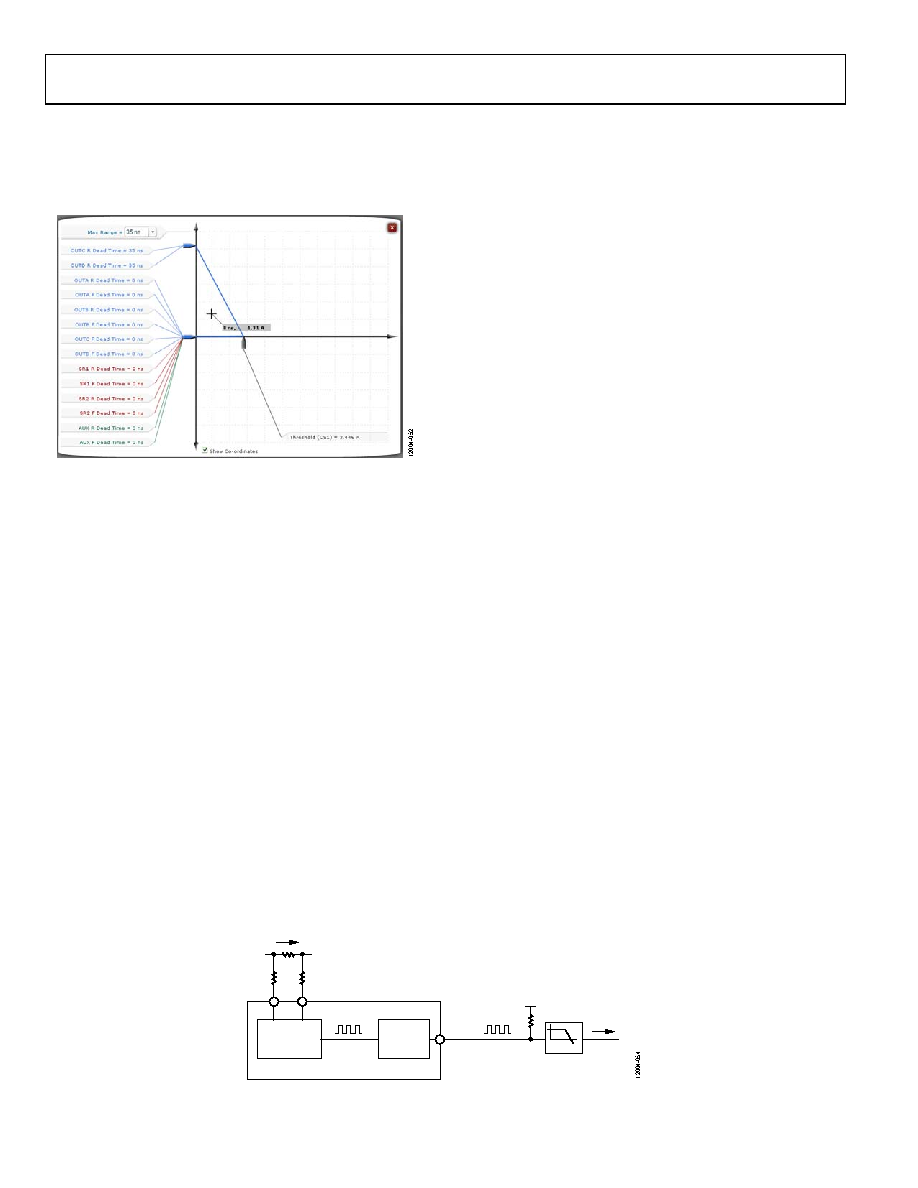

Figure 56. Adaptive Dead Time Window in the GUI

Before ADT is configured, the primary current threshold must

be programmed. Each individual PWM rising and falling edge

(t1 to t12) can then be programmed to have a specific dead time

offset at no load (zero current). This offset can be positive or

negative and is relative to the nominal edge position. When the

current is between zero and the threshold, the amount of dead time

is linearly adjusted in steps of 5 ns. The averaging period of the

CS1/CS2 current is selected using Register 0xFE1E[7], and the

speed of the dead time adjustment can also be programmed to

accommodate faster or slower adjustment in Register 0xFE1D[5:0].

For example, if the CS1 threshold is set to 2 A, t1 has a nominal

rising edge of 100 ns. If the ADT setting for t1 is 40 ns at no load,

t1 moves to 140 ns when the current is 0 A and to 120 ns when

the current is 1 A. Similarly, ADT can be applied in the negative

direction.

The ADT feature is useful in quasi resonant topologies where an

energy transfer occurs from the inductor (generally, from one or

more of the leakage inductance, magnetizing inductance, and

external inductance) to the capacitor (usually the drain-source

capacitance of the MOSFET power switch) for the purpose of

achieving zero voltage switching (ZVS).

Generally, the condition for ensuring ZVS is that the energy in

the inductor must exceed the energy in the capacitor. A

resonant transition occurs when energy is dumped from the

inductor to the capacitor (capacitor being charged with opposite

polarity voltage). At one point, there is close to 0 V across the

MOSFET, and at this point the power switch is turned on.

If this energy is not sufficient, the MOSFET turns on without

ZVS. In this case, ADT can be used to wait until the resonant

transition reaches its peak value so that a near ZVS turn-on is

achieved.

SR DELAY

The ADP1055 is well suited for dc-to-dc converters in isolated

topologies. Each time a PWM signal crosses the isolation barrier,

an additional propagation delay is added due to the isolating com-

ponents. The ADP1055 allows programming of an adjustable

delay (0 ns to 315 ns in steps of 5 ns) using Register 0xFE52[5:0].

This delay moves both SR1 and SR2 later in time with respect to

OUTA to OUTD to compensate for the added delay due to the

isolating components. In this way, the edges of all PWM outputs

can be aligned, and the SR delay can be applied separately as a

constant dead time.

CURRENT SHARING (ISHARE PIN)

The ADP1055 supports both analog current sharing and digital

current sharing. The ADP1055 can use either the CS1 current

information or the CS2 current information for current sharing.

Analog Current Sharing

Analog current sharing uses the internal current sensing

circuitry to provide a current reading to an external current

error amplifier. Therefore, an additional differential current

amplifier is not necessary.

The current reading from CS1 or CS2 can be output to the ISHARE

pin in the form of a digital bit stream, which is the output of the

current sense ADC (see Figure 57). The bit stream is proportional

to the current delivered by this unit to the load. By filtering this

digital bit stream using an external RC filter, the current infor-

mation is turned into an analog voltage that is proportional to

the current delivered by this unit to the load. This voltage can

be compared to the share bus voltage. If the unit is not supplying

enough current, an error signal can be applied to the VS± feed-

back point. This signal causes the unit to increase its output voltage

and, in turn, its current contribution to the load.

Figure 57. Analog Current Share Configuration

CURRENT

SENSE

ADC

BUS

LPF

BIT STREAM

ISHARE

VOLTAGE

CURRENT

CS2–

CS2+
