ADP5600
Data Sheet
Rev. 0 | Page 24 of 25
CIRCUIT BOARD LAYOUT RECOMMENDATIONS
Because the internal switches of the ADP5600 turn on and off
very fast, good printed circuit board (PCB) layout practices are
critical to ensure optimum operation of the device. Improper
layouts result in poor load regulation, especially under heavy
loads. Output performance can be improved by following these
simple layout guidelines:
Place the input capacitor (CIN) as close as possible to the
VIN and GND pins.
Place the output capacitors (CCPOUT) and CLDO_OUT as close
as possible to the CPOUT/LDO_OUT and GND pins.
Place fly capacitors (CC1 and CC2) close to the respective fly
capacitor pins (C1+/C2+ and C1−/C2−).
Use of 0603 and 0402 size capacitors and resistors achieves
the smallest possible footprint solution on boards where
area is limited.
Connect the exposed pad to CPOUT.
Use adequate ground and power traces or planes.
Use a single-point ground for device ground and input and
output capacitor grounds.
Keep external components as close to the device as possible.
Use short and wide traces/planes from the input and
output capacitors to the input and output pins, respectively.

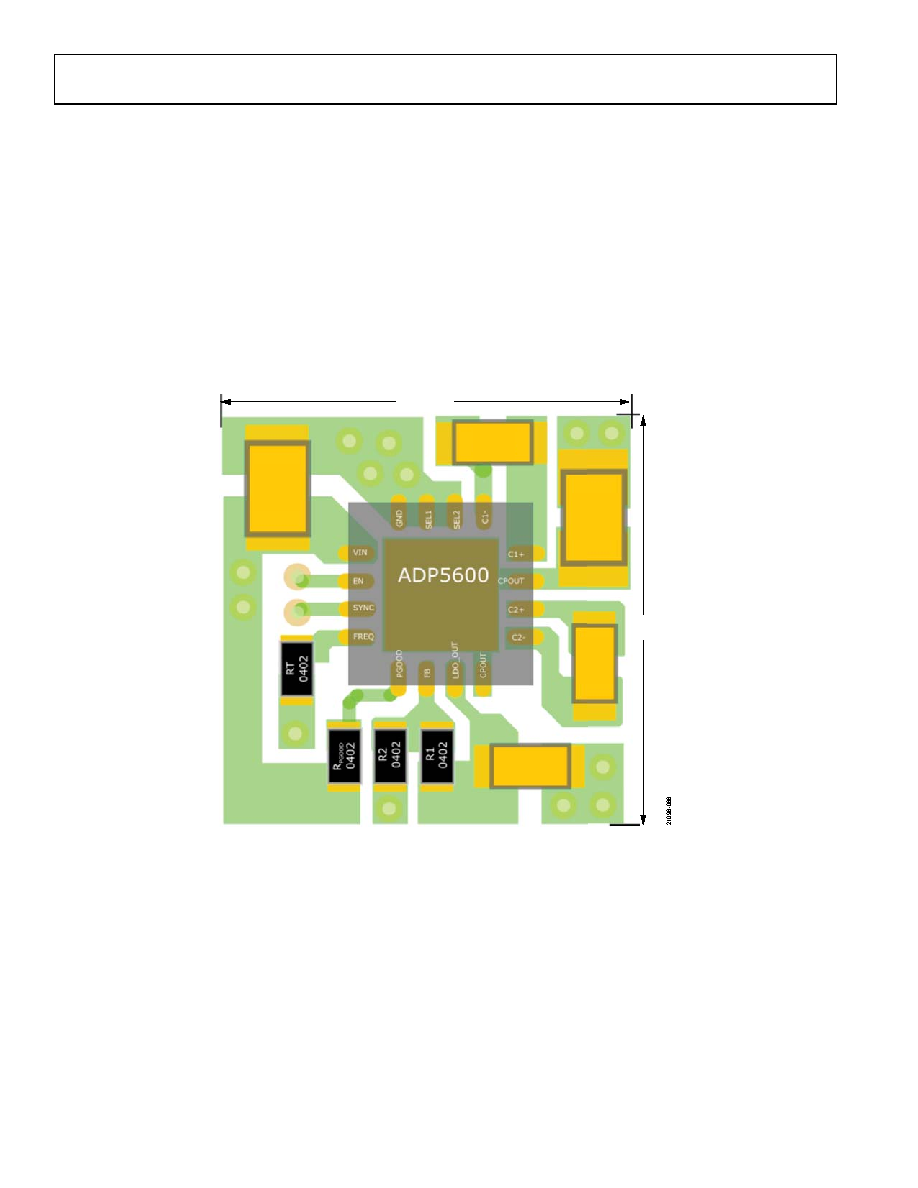

Figure 64. Example PCB Layout
10.2mm
10.2mm
CC1
0603
CIN
0805
CCPOUT
0805
CC2
0603
CLDO_OUT
0603
