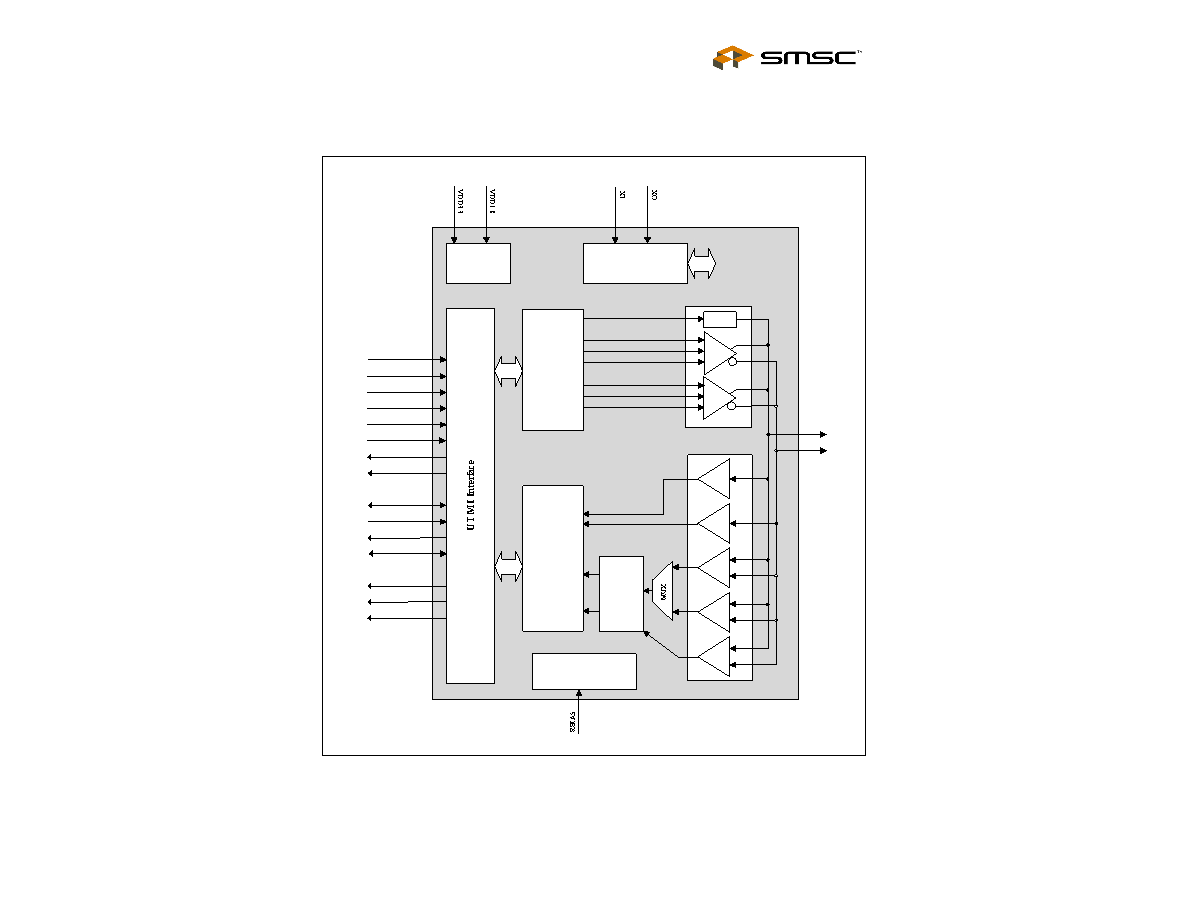

7 / 48 page  USB2.0 PHY IC Datasheet SMSC GT3200, SMSC USB3250 7 Revision 1.5 (03-24-06) DATASHEET Chapter 2 Functional Block Diagram Note: See Section 7.1, "Modes of Operation," on page 23 for a description of the digital interface. Figure 2.1 Block Diagram VALIDH PWR CONTROL FS SE+ RX TX State Machine Parallel to Serial Conversion Bit Stuff NRZI Encode TX LOGIC Clock Recovery Unit Clock and Data Recovery Elasticity Buffer VP VM BIASING Bandgap Voltage Reference Current Reference PLL and XTAL OSC System Clocking FS RX FS SE- HS RX HS SQ RX State Machine Serial to Parallel Conversion Bit Unstuff NRZI Decode RX LOGIC DM TX 1.5kΩ FS TX HS TX HS_DATA HS_CS_ENABLE HS_DRIVE_ENABLE OEB VMO VPO RPU_EN DP RXVALID RXACTIVE RXERROR TXREADY RESET SUSPENDN XCVRSELECT TERMSELECT OPMODE[1:0] LINESTATE[1:0] CLKOUT TXVALID DATABUS16_8 DATA[15:0] * |
|
