Data Sheet

ADA4097-1/ADA4097-2

THEORY OF OPERATION

analog.com

Rev. A | 21 of 31

INPUT PROTECTION

The inputs are protected against temporary voltage excursions

to 15 V below –VS (see Figure 56) by internal 880 Ω resistors

(see Figure 55). These resistors limit the current in the series

D1 diode and D2 diode that are tied to the bases of the Q1

and Q2 transistors, respectively. Adding additional external series

resistance extends the protection to >15 V below −VS, at the

cost of stability and added thermal noise. The input stage of the

ADA4097-1/ADA4097-2 incorporates phase reversal protection to

prevent the output from phase reversing for inputs below −VS. The

ADA4097-1/ADA4097-2 op amp does not have clamping diodes

between the inputs and can be differentially over-driven up to 80 V

without damage, inducing parametric shifts, or drawing appreciable

input current. Figure 57 summarizes the input fault types that can

be applied to the ADA4097-1/ADA4097-2 without compromising

input integrity.

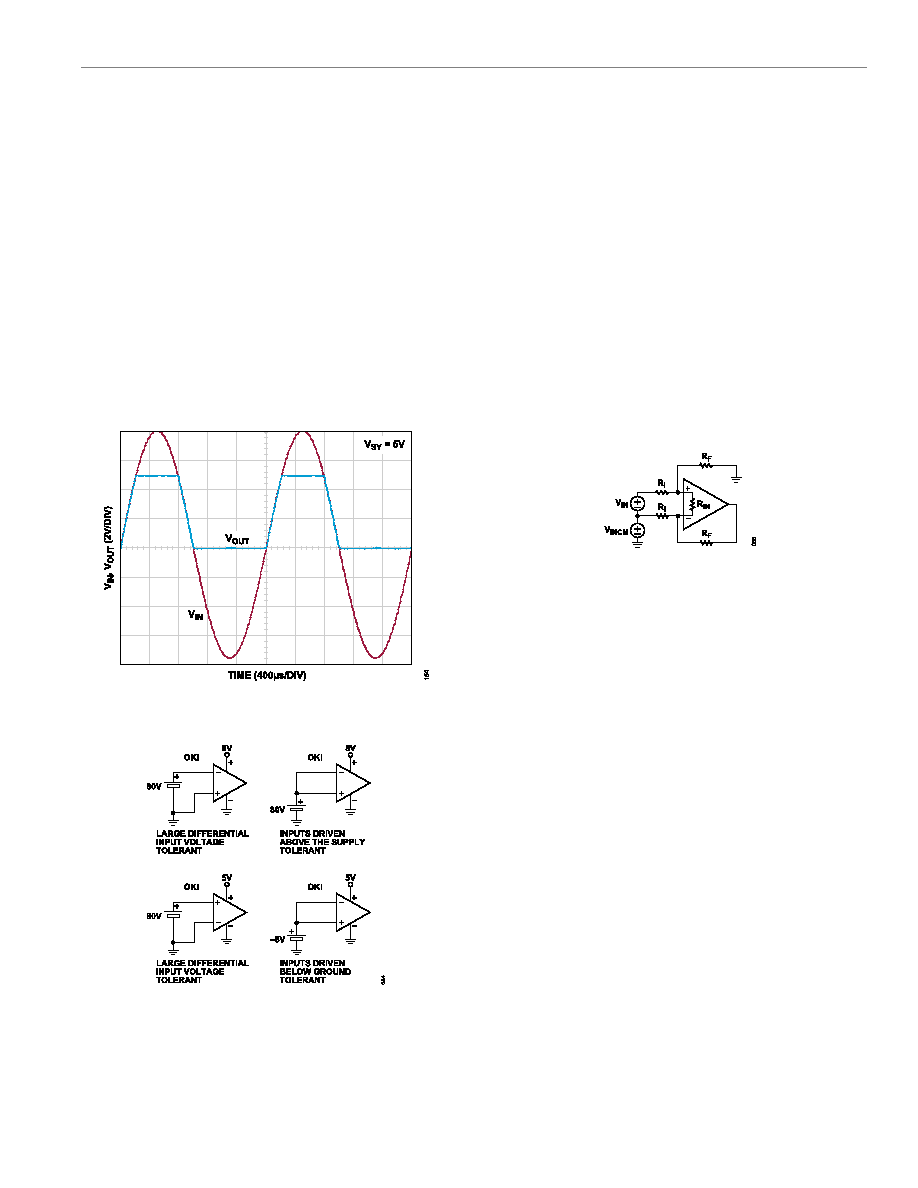

Figure 56. ADA4097-1/ADA4097-2 as Unity-Gain Buffer with Noninverting

Input Driven Beyond the Supply (VSY = 5 V)

Figure 57. ADA4097-1/ADA4097-2 Fault Tolerant Conditions

OVER-THE-TOP OPERATION

CONSIDERATIONS

When the ADA4097-1/ADA4097-2 input common-modes are biased

near or >+VS supply, the amplifiers operate in the Over-The-Top

configuration. The differential input pair that controls amplifier oper-

ation is the common base pair, Q3 to Q6 (see Figure 55).

Input bias currents change from <±0.3 nA in normal operation to

approximately 0.8 μA in Over-The-Top operation when the input

stage transitions from common emitter to common base. The Over-

The-Top input bias currents are well matched, and the associated

offset is typically <50 nA. Ensure that the impedance connected to

the inverting and noninverting inputs is well matched to avoid any

input bias current induced voltage offsets.

Differential input impedance, RIN (see Figure 58), decreases from

>10 MΩ in normal operation to ~60 kΩ in Over-The-Top operation

(see Table 1 and Table 2).

Figure 58. Difference Amplifier Configured for Normal Operation and Over-

The-Top Operation (RI Is a Gain Setting Resistor)

This RIN resistance appears across the summing nodes in Over-

The-Top operation due to the configuration of the common base

input stage.

The RIN value is derived from the specified IB that flows to the op

amp inputs, as expressed in the following equation:

RIN = 2kT/(qIB)

where:

k is Boltzmann constant.

T is the operating temperature.

q is the charge of an electron.

IB is the operating input bias current in Over-The-Top operation.

The inputs are biased proportional to absolute temperature. There-

fore, RIN is relatively constant with temperature. This resistance

appears across the summing nodes of the amplifier, which is forced

to 0 V differentially by the feedback action of the amplifier and

can seem relatively harmless. However, depending on the configu-

ration, this input resistance can boost the noise gain, lower overall

amplifier loop gain and closed-loop bandwidth, and raise output

noise. The singular benefit of this configuration is an increase in

closed-loop amplifier stability.

In normal mode (−VS < VCM < +VS −1 V), RIN is typically large

compared to the value of the gain setting resistors (RF and RI), and

RIN can be ignored.

In this case, the noise gain is defined by the following equation:
