UCD3138A

SLUSC66B – MARCH 2015 – REVISED MAY 2015

www.ti.com

5.6

PMBus/SMBus/I

2C Timing

The timing characteristics and timing diagram for the communications interface that supports I

2C, SMBus, and PMBus in

Slave or Master mode are shown in Section 5.6, Figure 5-1, and Figure 5-2. The numbers in Section 5.6 arµe for 400 kHz

operating frequency. However, the device supports all three speeds, standard (100 kHz), fast (400 kHz).

Typical values at TA = 25°C and VCC = 3.3 V (unless otherwise noted)

PARAMETER

TEST CONDITIONS

MIN

TYP

MAX

UNIT

fSMB

SMBus/PMBus operating frequency

Slave mode, SMBC 50% duty cycle

100

400

kHz

fI2C

Slave mode, SCL 50% duty cycle

100

400

kHz

I2C operating frequency

t(BUF)

Bus free time between start and stop(1)

1.3

µs

t(HD:STA)

Hold time after (repeated) start(1)

0.6

µs

t(SU:STA)

Repeated start setup time(1)

0.6

µs

t(SU:STO)

Stop setup time(1)

0.6

µs

t(HD:DAT)

Data hold time

Receive mode

t(SU:DAT)

Data setup time

100

t(TIMEOUT)

Error signal/detect(2)

t(LOW)

Clock low period

1.3

µs

t(HIGH)

Clock high period(3)

0.6

µs

t(LOW:SEXT)

Cumulative clock low slave extend time(4)

Clock/data fall time

Rise time tr = (VILmax – 0.15) to (VIHmin + 0.15)

20 + 0.1 Cb(5)

300

Clock/data rise time

Fall time tf = 0.9 VDD to (VILmax – 0.15)

20 + 0.1 Cb(5)

300

Total capacitance of one bus line

400

(1)

Fast mode, 400 kHz

(2)

The device times out when any clock low exceeds t(TIMEOUT).

(3)

t(HIGH), Max, is the minimum bus idle time. SMBC = SMBD = 1 for t > 50 ms causes reset of any transaction that is in progress. This

specification is valid when the NC_SMB control bit remains in the default cleared state (CLK[0] = 0).

(4)

t(LOW:SEXT) is the cumulative time a slave device is allowed to extend the clock cycles in one message from initial start to the stop.

(5)

Cb (pF)

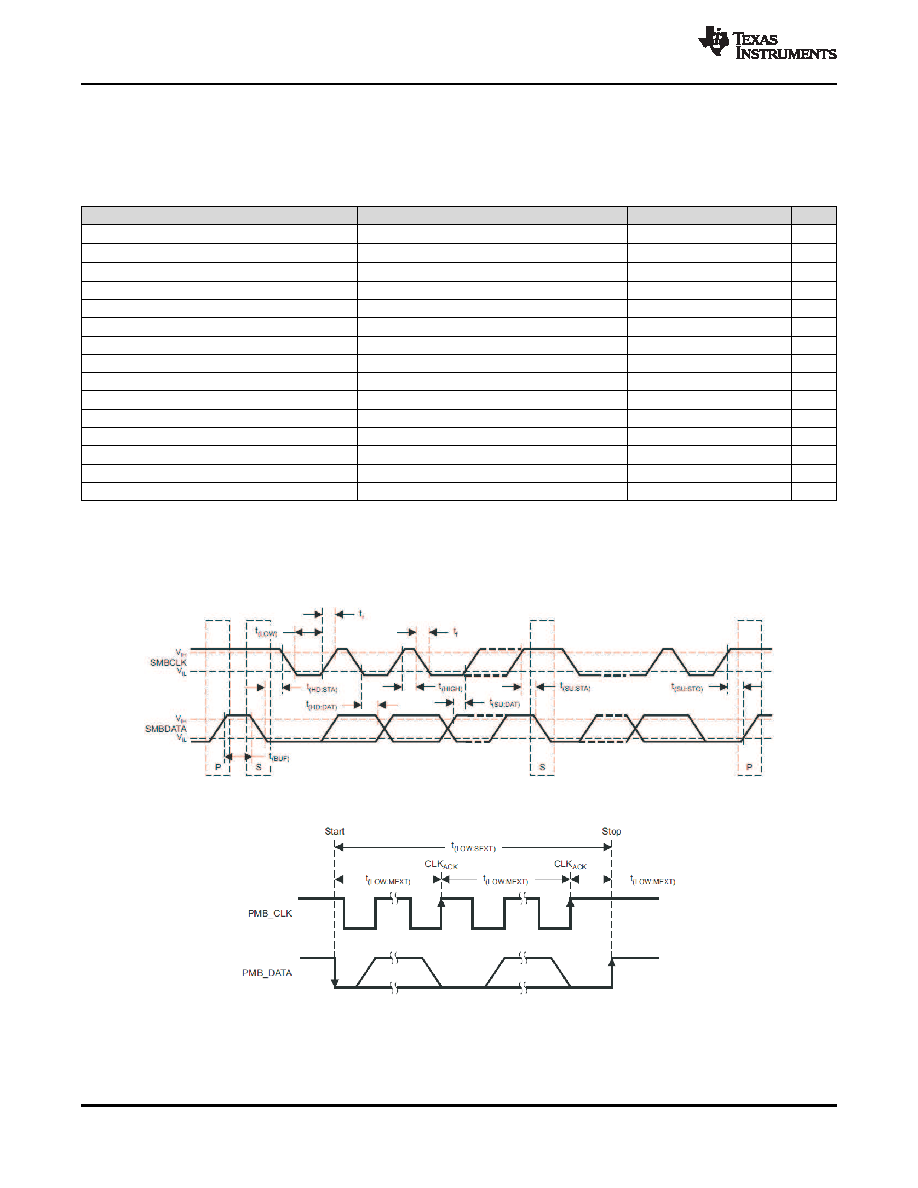

Figure 5-1. I2C/SMBus/PMBus Timing Diagram

Figure 5-2. Bus Timing in Extended Mode

Specifications

Submit Documentation Feedback

Product Folder Links: UCD3138A
