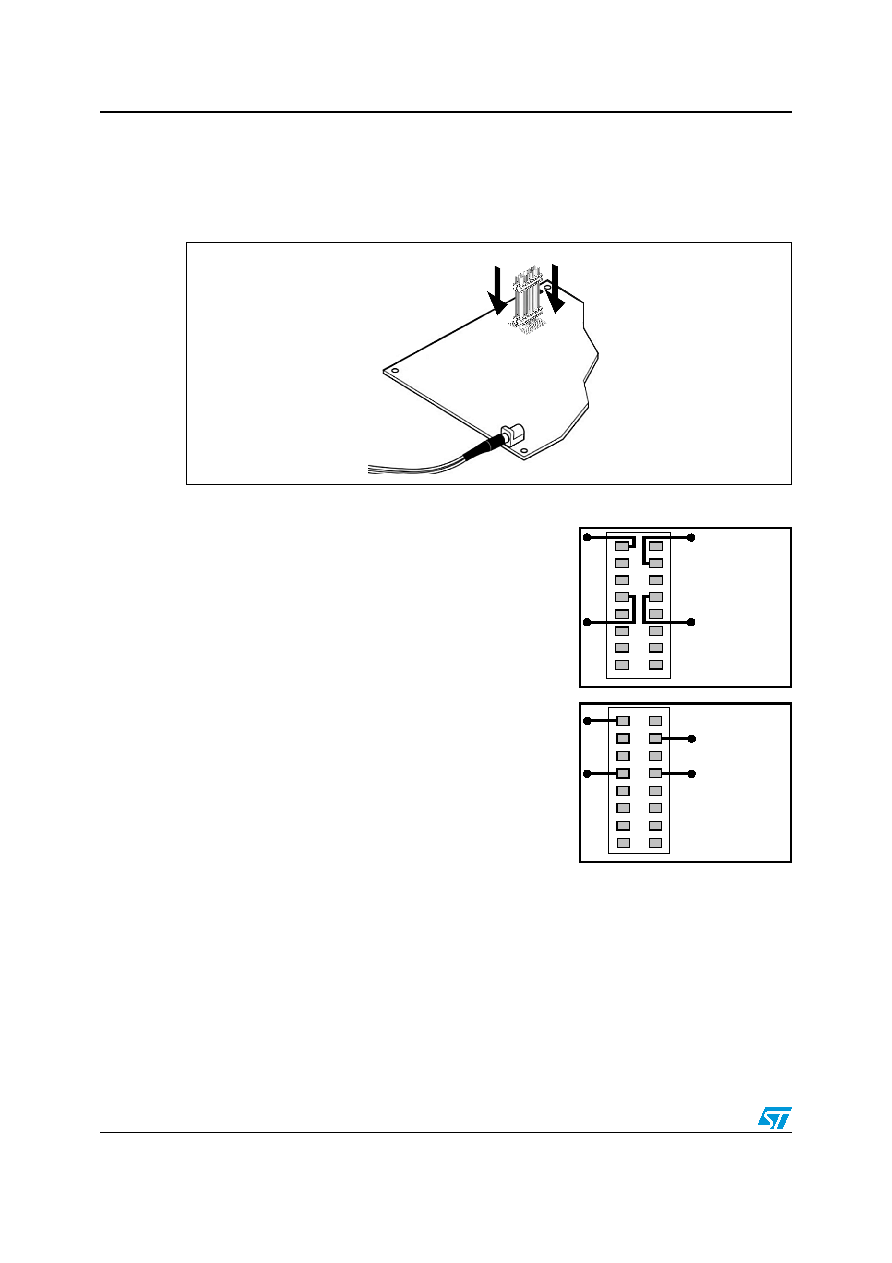

10 / 38 page  Connecting to the application board for emulation UM0139 10/38 2.3 SO16 microcontroller package 1. Solder the connection pins onto your application board in place of your microcontroller in SO16 package. Figure 6. Solder the SO16 socket to your application board 2. Align the pin 1 indicators and then insert the pins of the DB483A flex adapter into the DIP16/SO16 device adapter (DB489) as shown in Figure 7. 3. Align the pin 1 indicators and then insert the pins soldered on your application board into the DIP16/SO16 device adapter (DB489). Note: Care must be taken when designing the circuitry surrounding the component-side footprint for the emulated SO16 device on your application board. This is because the provided set of connection pins has larger pins than the actual SO16 microcontroller package. If wire on wire connections are made on the SO16 (150-mil width) footprint between the two 8-pin rows (as shown on the top-right), a short circuit may occur when soldering the connection pins for the emulator on the same footprint. To avoid short circuits we recommend using wire on wire connections as shown in the illustration on the bottom-right. SO16 (0.15”) footprint SO16 (0.15”) footprint |
|
