CC1010
SWRS047
Page 13 of 152

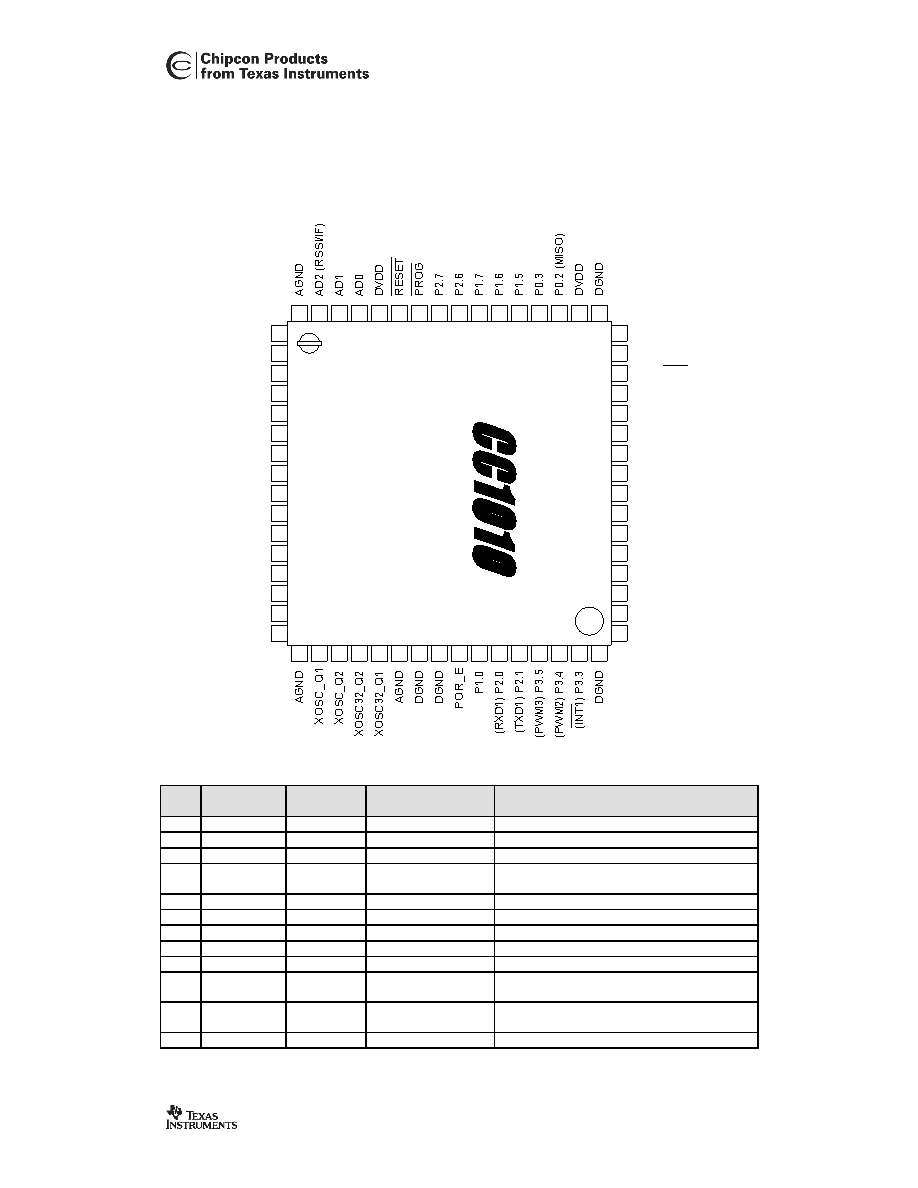

12. Pin Configuration
17
1
AVDD
2
AVDD
3
AGND
4
RF_IN
5
RF_OUT
6
AVDD
7
AGND
8
AGND
9
AGND
10
L1
11
L2
12
AVDD
13
CHP_OUT
14
R_BIAS
15
AVDD
16
AGND
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
P3.0 (RXD0)
P3.1 (TXD0)
P3.2 (INT0)
P2.5
P2.4
DVDD
P2.3
DGND
DVDD
P2.2
P1.4
P1.3
P1.2
P1.1
P0.1 (MOSI)
P0.0 (SCK)
(Top view)
Pin
#
Pin name
Alternate
function
Pin type
Description
1
AVDD
-
Power (A)
Power supply ADC
2
AVDD
-
Power (A)
Power supply Mixer and IF
3
AGND
-
Power (A)
Ground connection Mixer and IF
4
RF_IN
-
RF input
RF signal input from antenna (external AC-
coupling)
5
RF_OUT
-
RF output
RF signal output to antenna
6
AVDD
-
Power (A)
Power supply LNA and PA
7
AGND
-
Power (A)
Ground connection LNA and PA
8
AGND
-
Power (A)
Ground connection PA
9
AGND
-
Power (A)
Ground connection VCO and prescaler
10
L1
-
Analog
Connection #1 for external VCO tank
inductor
11
L2
-
Analog
Connection #2 for external VCO tank
inductor
12
AVDD
-
Power (A)
Power supply VCO and prescaler
