M38B53M4-059FP датащи(PDF) 1 Page - Mitsubishi Electric Semiconductor |
|
|
|||||||||||||||||||||||||||||
M38B53M4-059FP датащи(HTML) 1 Page - Mitsubishi Electric Semiconductor |
|
|

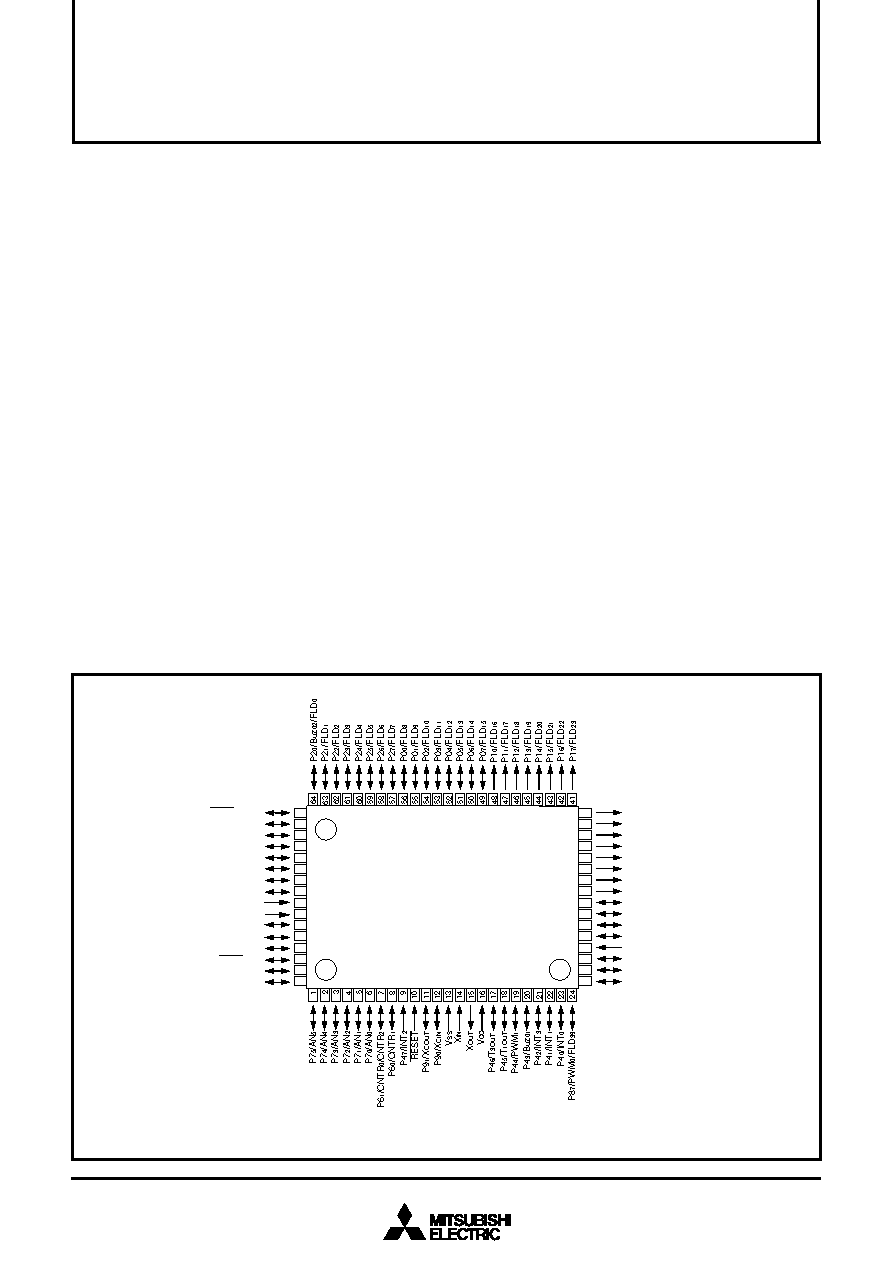

1 / 69 page  DESCRIPTION The 38B5 group is the 8-bit microcomputer based on the 740 family core technology. The 38B5 group has six 8-bit timers, a 16-bit timer, a fluorescent display automatic display circuit, 12-channel 10-bit A-D converter, a serial I/O with automatic transfer function, which are available for controlling musical instruments and household appliances. The 38B5 group has variations of internal memory size and packag- ing. For details, refer to the section on part numbering. For details on availability of microcomputers in the 38B5 group, refer to the section on group expansion. MITSUBISHI MICROCOMPUTERS 38B5 Group SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER FEATURES • Basic machine-language instructions ....................................... 71 • The minimum instruction execution time .......................... 0.48 µs (at 4.19 MHz oscillation frequency) • Memory size ROM ............................................. 24K to 60K bytes RAM ............................................ 512 to 2048 bytes • Programmable input/output ports ............................................. 55 • High-breakdown-voltage output ports....................................... 36 • Software pull-up resistors ...... (Ports P5, P61 to P65, P7, P84 to P87, P9) • Interrupts .................................................. 21 sources, 16 vectors • Timers ........................................................... 8-bit ! 6, 16-bit ! 1 • Serial I/O1 (Clock-synchronized) .................................... 8-bit ! 1 ...................... (max. 256-byte automatic transfer function) • Serial I/O2 (UART or Clock-synchronized) ..................... 8-bit ! 1 Fig. 1 Pin Configuration of M38B57MC-XXXFP Package type : 80P6N-A 80-pin plastic-molded QFP PIN CONFIGURATION (TOP VIEW) 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 P65/SSTB1/AN11 P64/INT4/SBUSY1/AN10 M38B57MC-XXXFP P63/AN9 P62/SRDY1/AN8 VEE P76/AN6 P77/AN7 VREF AVSS P50/SIN1 P51/SOUT1 P52/SCLK11 P53/SCLK12 P54/RxD P55/TxD P56/SCLK21 P57/SRDY2/SCLK22 P86/RTP1/FLD38 P83/FLD35 P82/FLD34 P81/FLD33 P80/FLD32 P37/FLD31 P36/FLD30 P35/FLD29 P34/FLD28 P33/FLD27 P32/FLD26 P31/FLD25 P30/FLD24 P85/RTP0/FLD37 P84/FLD36 • PWM .............................................................................14-bit ! 1 8-bit ! 1 (also functions as timer 6) • A-D converter .............................................. 10-bit ! 12 channels • Fluorescent display function ........................ Total 40 control pins • Interrupt interval determination function ..................................... 1 • Watchdog timer ............................................................. 20-bit ! 1 • Buzzer output ............................................................................. 1 • 2 Clock generating circuit Main clock (XIN–XOUT) ......................... Internal feedback resistor Sub-clock (XCIN–XCOUT) ......... Without internal feedback resistor (connect to external ceramic resonator or quartz-crystal oscillator) • Power source voltage In high-speed mode ................................................... 4.0 to 5.5 V (at 4.19 MHz oscillation frequency and high-speed selected) In middle-speed mode ............................................... 2.7 to 5.5 V (at 4.19 MHz oscillation frequency and middle-speed selected) In low-speed mode .................................................... 2.7 to 5.5 V (at 32 kHz oscillation frequency and low-speed selected) • Power dissipation In high-speed mode .......................................................... 35 mW (at 4.19 MHz oscillation frequency) In low-speed mode ............................................................ 60 µW (at 32 kHz oscillation frequency, at 3 V power source voltage) • Operating temperature range ................................... –20 to 85 °C APPLICATION Musical instruments, VCR, household appliances, etc. PRELIMINAR Y Notice: This is not a final specification. Some parametric limits are subject to change. |
