Data Sheet
ADTR1107
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. C | 21 of 27

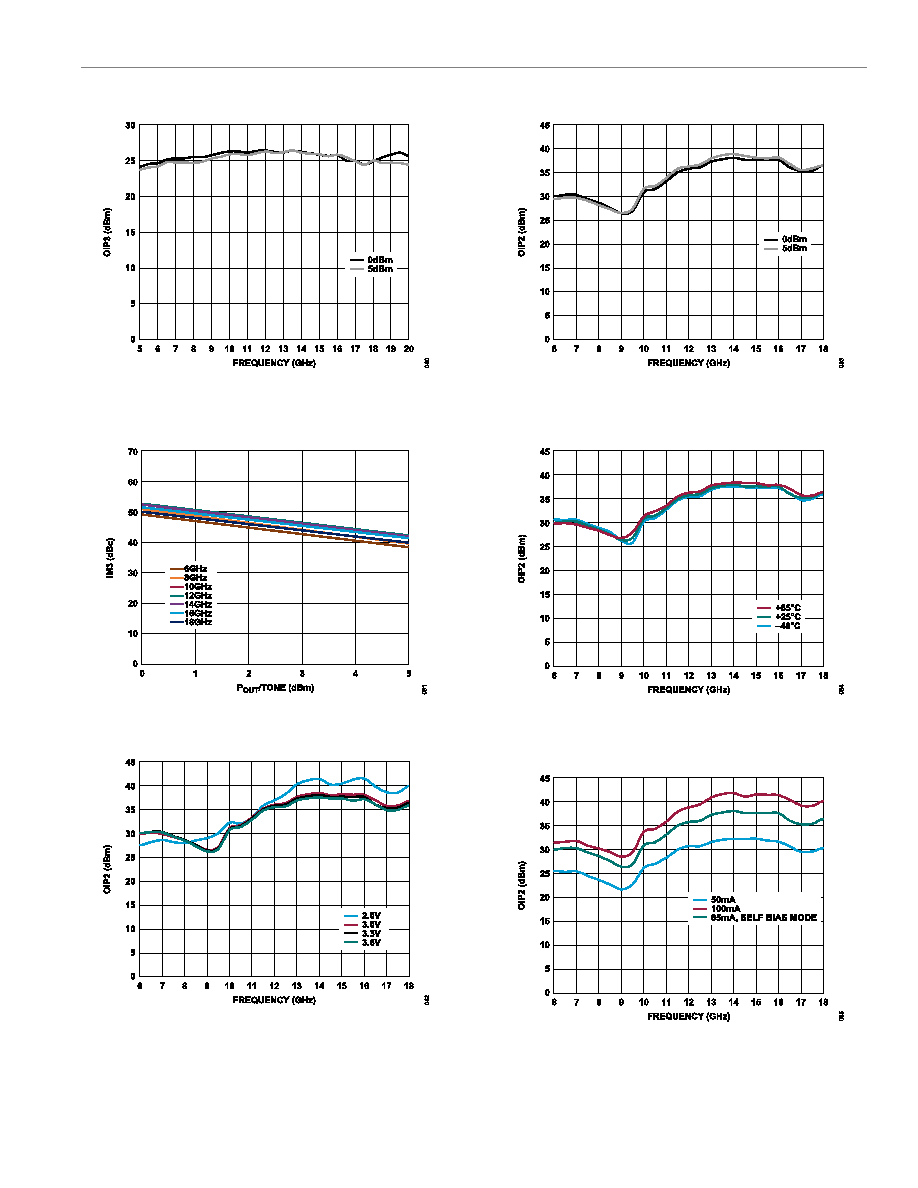

Figure 80. OIP3 vs. Frequency for Various POUT/Tone, Receive State, Path
= ANT to RX_OUT, Self Biased Mode, VDD_LNA = 3.3 V, VGG_LNA = 0 V,
Transmit State Off
Figure 81. IM3 vs. POUT/Tone, Receive State, Path = ANT to RX_OUT, Self
Biased Mode, VDD_LNA = 3.3 V, VGG_LNA = 0 V, Transmit State Off
Figure 82. OIP2 vs. Frequency for Various VDD_LNA, POUT/Tone = 0 dBm,
Receive State, Path = ANT to RX_OUT, Self Biased Mode, VGG_LNA = 0 V,
Transmit State Off
Figure 83. OIP2 vs. Frequency for Various POUT/Tone, Receive State, Path
= ANT to RX_OUT, Self Biased Mode, VDD_LNA = 3.3 V, VGG_LNA = 0 V,
Transmit State Off
Figure 84. OIP2 vs. Frequency for Various Temperatures, POUT/Tone = 0 dBm,
Receive State, Path = ANT to RX_OUT, Self Biased Mode, VDD_LNA = 3.3 V,
VGG_LNA = 0 V, Transmit State Off
Figure 85. OIP2 vs. Frequency for Various IDQ_LNA, POUT/Tone = 0 dBm,
Receive State, Path = ANT to RX_OUT, Self Biased Mode, VDD_LNA = 3.3 V,
Controlled VGG_LNA, Transmit State Off
