AD8231
Rev. 0 | Page 11 of 20
G = +8
G = +32
G = +128
10µs/DIV
20mV/DIV

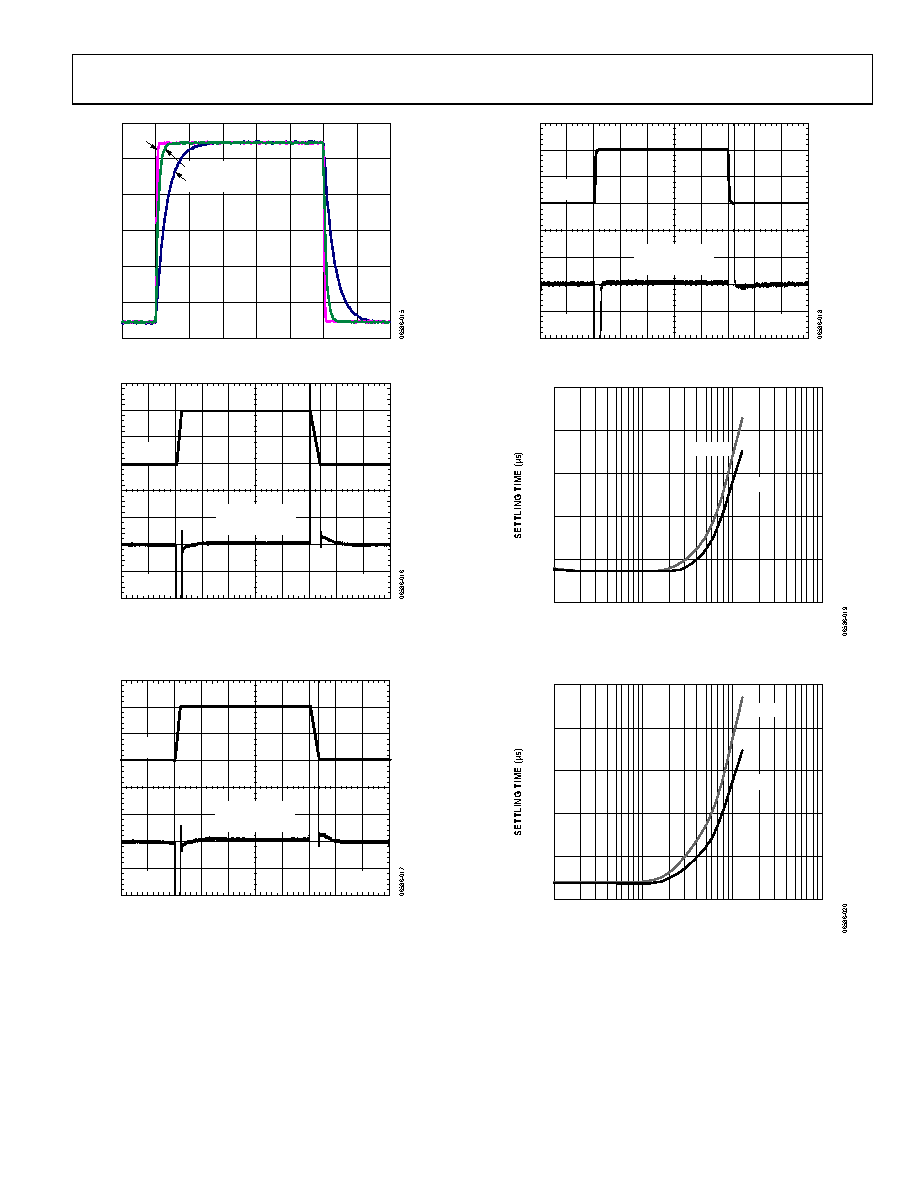

Figure 15. Small Signal Pulse Response, G = 8, 32, 128, RL = 2 kΩ, CL = 500 pF
10µs/DIV
0.001%/DIV
2V/DIV
3.95µs TO 0.01%
4µs TO 0.001%
Figure 16. Large Signal Pulse Response, G = 1, VS = 5 V
10µs/DIV
0.001%/DIV
2V/DIV
3.75µs TO 0.01%
3.8µs TO 0.001%
Figure 17. Large Signal Pulse Response, G = 8, VS = 5 V
100µs/DIV
0.001%/DIV
2V/DIV
17.6µs TO 0.01%
21.4µs TO 0.001%
Figure 18. Large Signal Pulse Response, G = 128, VS = 5 V
25
20
15
10
5
0
11
100
10
GAIN (V/V)
k
0.001%
0.01%
Figure 19. Settling Time vs. Gain for a 4 V p-p Step, VS = 5 V
25
20
15
10
5
0
11
100
10
GAIN (V/V)
k
0.001%
0.01%
Figure 20. Settling Time vs. Gain for a 2 V p-p Step, VS = 3 V
