MPZ2012S221A датащи(PDF) 18 Page - STMicroelectronics

номер детали MPZ2012S221A
подробное описание детали  38 V, 10 W synchronous iso-buck converter for isolated applications
PDF  56 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
производитель  STMICROELECTRONICS [STMicroelectronics]
домашняя страница  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

MPZ2012S221A датащи(HTML) 18 Page - STMicroelectronics

Back Button MPZ2012S221A Datasheet HTML 14Page - STMicroelectronics MPZ2012S221A Datasheet HTML 15Page - STMicroelectronics MPZ2012S221A Datasheet HTML 16Page - STMicroelectronics MPZ2012S221A Datasheet HTML 17Page - STMicroelectronics MPZ2012S221A Datasheet HTML 18Page - STMicroelectronics MPZ2012S221A Datasheet HTML 19Page - STMicroelectronics MPZ2012S221A Datasheet HTML 20Page - STMicroelectronics MPZ2012S221A Datasheet HTML 21Page - STMicroelectronics MPZ2012S221A Datasheet HTML 22Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 18 / 56 page
background image

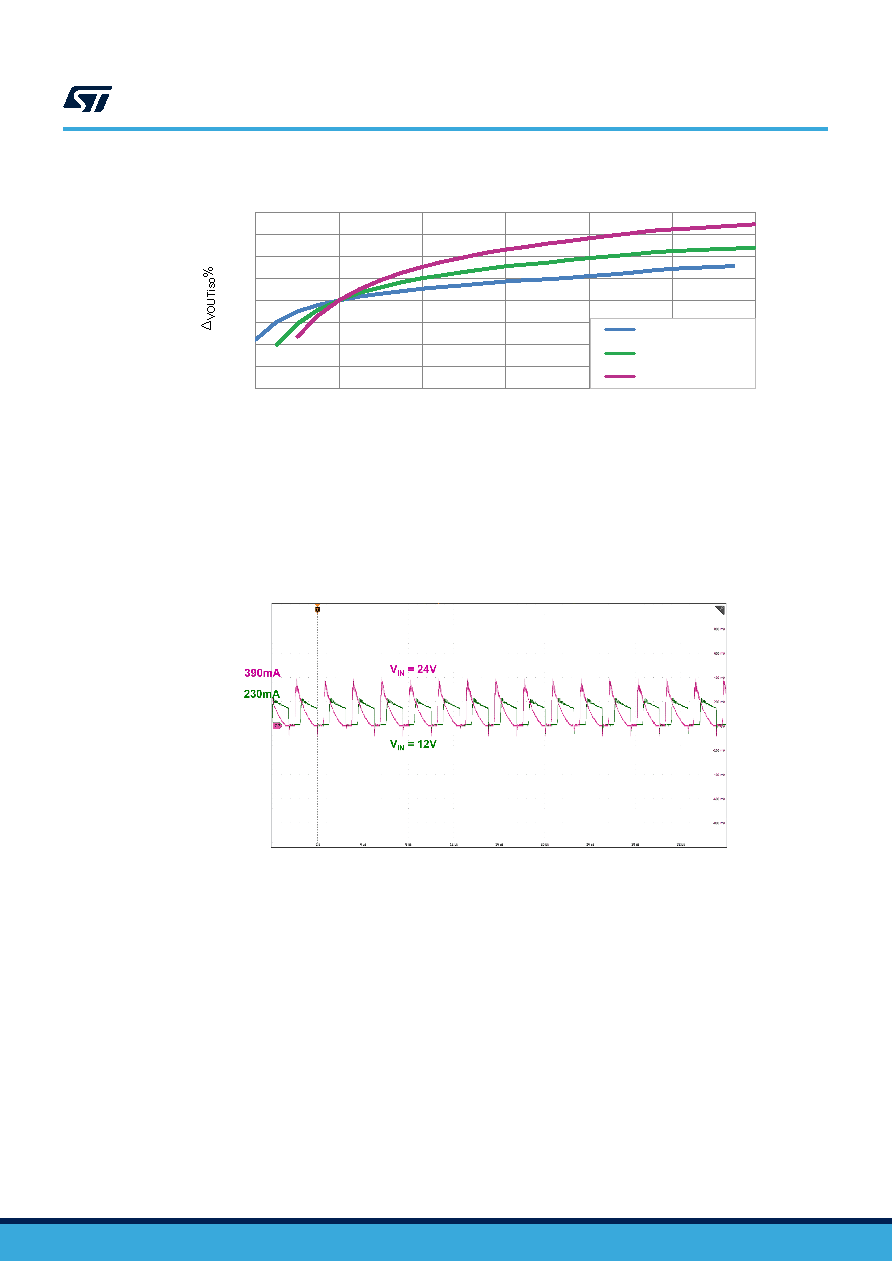

Figure 18. Secondary output line regulation (VOUT_prim = 5 V, fSW = 400 kHz, N = 6 )
-20%
-15%
-10%
-5%
0%
5%
10%
15%
20%
8
12
16
20
24
28
32
Input voltage [V]
Iout_iso = 100mA
Iout_iso = 200mA
Iout_iso = 300mA
The input voltage value influences the peak current in the secondary winding (see Figure 19), hence determining
the amount of energy delivered to the secondary output and in turn the isolated output voltage value.
Figure 19. Secondary winding current at different input voltages
L6983I
Output voltage line regulation
DS14040 - Rev 1
page 18/56
