9.5. STOP BIT FUNCTION

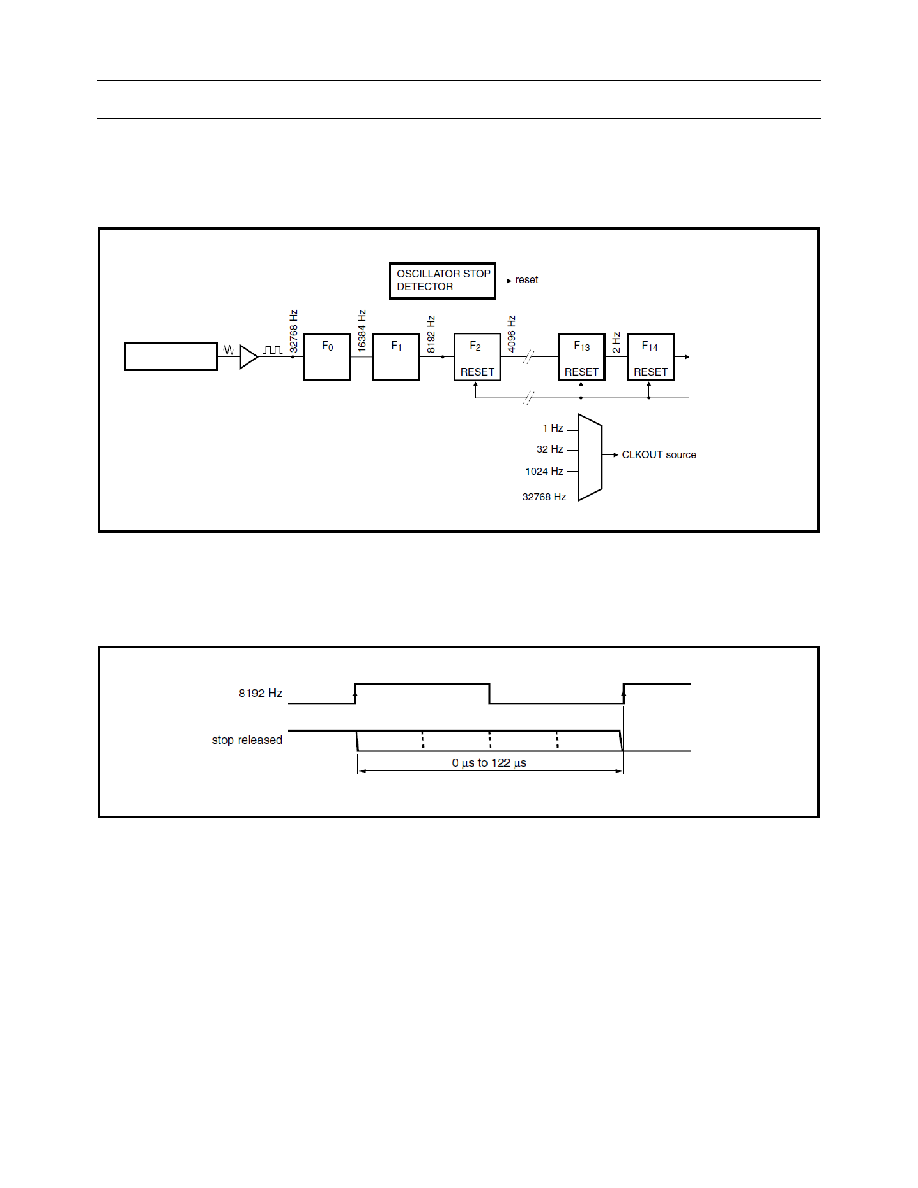

The function of the STOP bit is to allow an accurate starting of the time circuits. The STOP bit function will cause

circuits can then be set and will not increment until the STOP bit is released.

The STOP bit function will not affect the 32.768 kHz output on CLKOUT, but will stop the generation of 1024 Hz,

32 Hz and 1 Hz.

oscillator, the accuracy of re-starting the time circuits will be between zero and one 8192 Hz cycle.

OSCILLATOR

1 Hz

STOP
