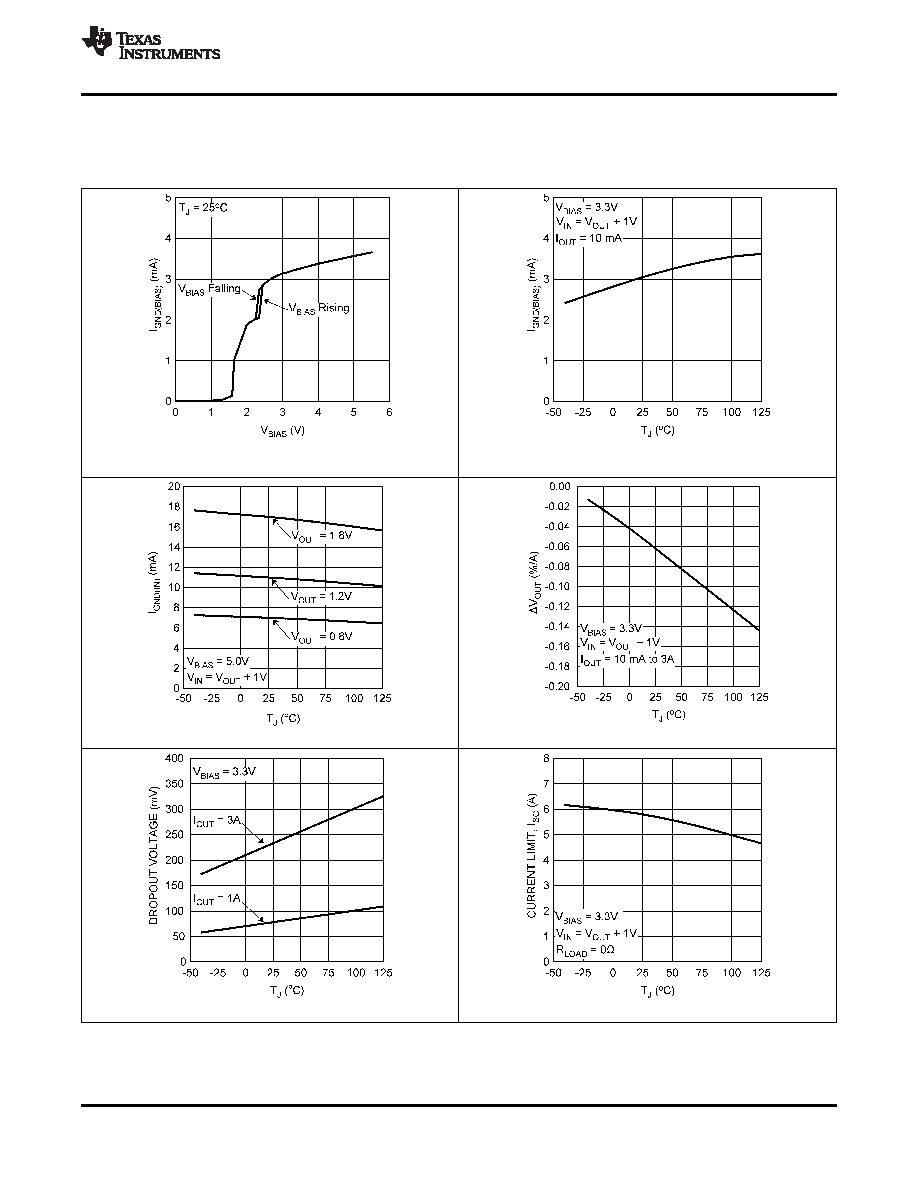

7 / 30 page  LP38853 www.ti.com SNVS335E – DECEMBER 2006 – REVISED NOVEMBER 2015 6.7 Typical Characteristics Refer to the Simplified Schematic. Unless otherwise specified: TJ = 25°C, R1 = 1.4 kΩ, R2 = 1 kΩ, CFF= 0.01 µF, VIN = VOUT(NOM) + 1 V, VBIAS = 3 V, IOUT = 10 mA, CIN = 10-µF ceramic, COUT = 10-µF ceramic, CBIAS = 1-µF ceramic, CSS = open. Figure 1. BIAS Ground Pin Current (IGND(BIAS)) vs VBIAS Figure 2. BIAS Ground Pin Current (IGND(BIAS)) vs Temperature Figure 4. Load Regulation vs Temperature Figure 3. IN Ground Pin Current vs Temperature Figure 5. Dropout Voltage (VDO) vs Temperature Figure 6. Output Current Limit (ISC) vs Temperature Copyright © 2006–2015, Texas Instruments Incorporated Submit Documentation Feedback 7 Product Folder Links: LP38853 |
|
