MicroSmart Series

Programmable Logic Controllers

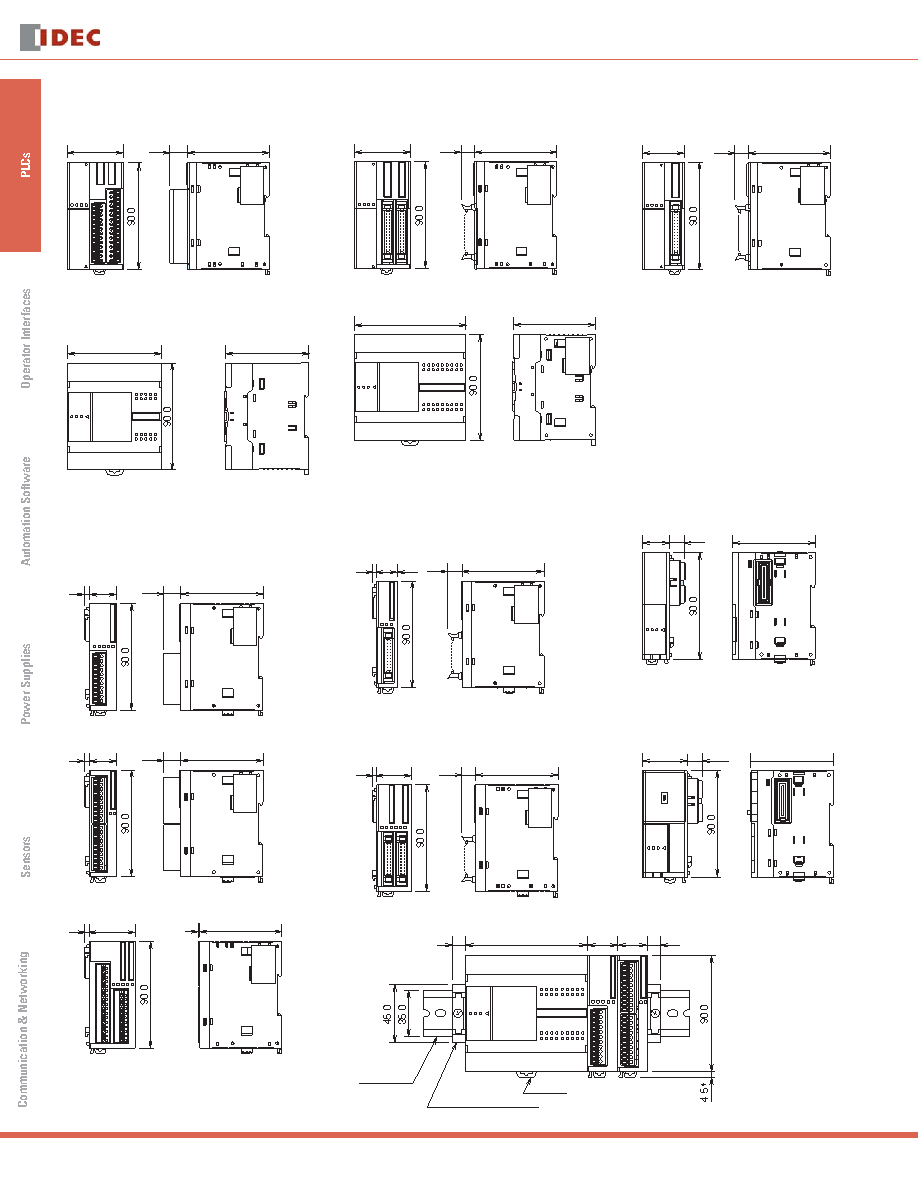

Dimensions (mm)

FC5A-D16RK1,

FC5A-D16RS1

FC4A-D20RK1,

FC4A-D20RS1

47.5

70.0

14.6

FC5A-D32K3, FC5A-D32S3

FC4A-D40K3, FC4A-D40S3

47.5

70.0

11.3

FC5A-EXM1S

FC4A-D20K3, FC4A-D20S3

35.4

70.0

11.3

FC5A-C10R2,

FC5A-C16R2

FC5A-C10R2C,

FC5A-C16R2C

FC4A-C10R2,

FC4A-C16R2

FC4A-C10R2C,

FC4A-C16R2C

80.0

70.0

FC5A-C24R2, FC5A-C24R2C

FC4A-C24R2, FC4A-C24R2C

95.0

70.0

FC4A-N08B1,

FC4A-R081,

FC4A-T08S1,

FC4A-L03A1,

FC4A-J2A1,

FC4A-J4CN1,

FC4A-J8AT1,

FC4A-AS62M,

FC4A-N08A11,

FC4A-T08K1,

FC4A-M08BR1,

FC4A-L03AP1,

FC4A-K1A1,

FC4A-J8C1,

FC4A-K2C1,

70.0

14.6

23.5

3.8

FC4A-EXM1M

FC4A-N16B3, FC4A-T16K3,

FC4A-T16S3

70.0

11.3

17.6

3.8

FC4A-HPC1, FC4A-HPC2,

FC4A-HPC3

70.0

22.5

13.9

FC4A-N16B1, FC4A-R161

70.0

14.6

23.5

3.8

FC4A-N32B3, FC4A-T32K3,

FC4A-T32S3

70.0

11.3

29.7

3.8

FC4A-HPH1

71.0

38.0

13.9

FC5A-EXM2, FC4A-M24BR2

70.0

1.0

39.1

3.8

Example

95.0

DIN Rail

Mounting Clip (BNL6)

23.5 23.5

9.0

Clamp

The ﬁgure illustrates a

system setup consisting

of the all-in-one 24-I/O

CPU module, an 8-point

relay output module,

and a 16-point DC input

module mounted on a 35-

mm-wide-DIN rail using

BNL6 mounting clips.
