ADL5336

Data Sheet

Rev. B | Page 12 of 32

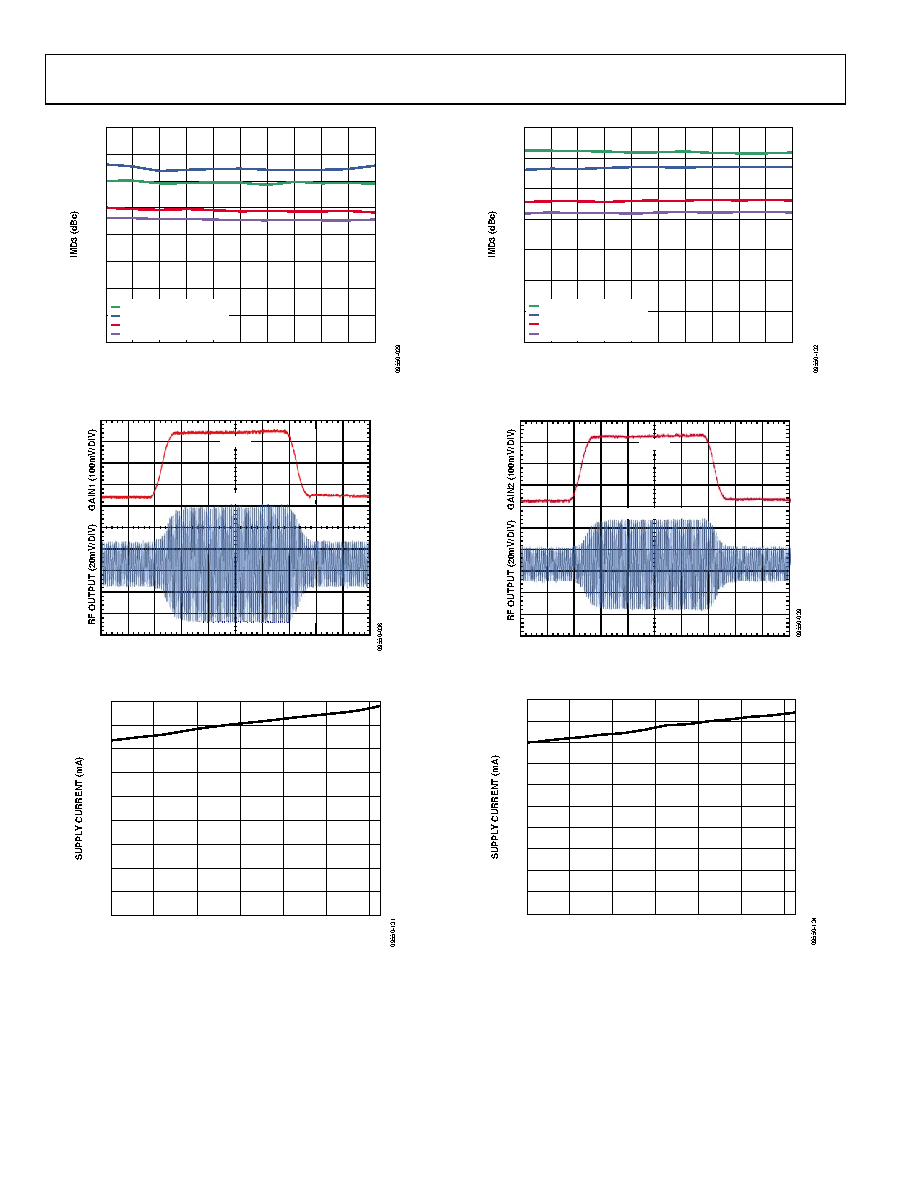

Figure 29. IMD3 vs. VGAIN over Frequency and Gain Code, VOUT = 1 V p-p

Composite, 2 MHz Spacing for VGA1

Figure 30. VGAIN Step Response (VGA Mode) over Gain Step, VIN = 100 mV p-p

for VGA1

Figure 31. Supply Current (VGA1 Switch Disabled) over Temperature

Figure 32. IMD3 vs. VGAIN over Frequency and Gain Code, VOUT = 1 V p-p

Composite, 2 MHz Spacing for VGA2

Figure 33. VGAIN Step Response (VGA Mode) over Gain Step, VIN = 100 mV p-p

for VGA2

Figure 34. Supply Current (VGA2 Switch Enabled) over Temperature

100

200

300

400

500

600

700

800

900

1000

GAIN1 (mV)

GAIN CODE 11, 140MHz

GAIN CODE 00, 140MHz

GAIN CODE 00, 350MHz

GAIN CODE 11, 350MHz

GAIN1

RF OUTPUT

TIME (100ns/DIV)

–40

–20

TEMPERATURE (°C)

100

200

300

400

500

600

700

800

900

1000

GAIN2 (mV)

GAIN CODE 00, 140MHz

GAIN CODE 11, 140MHz

GAIN CODE 00, 350MHz

GAIN CODE 11, 350MHz

GAIN2

RF OUTPUT

TIME (100ns/DIV)

GAIN2

RF OUTPUT

–40

–20

TEMPERATURE (°C)
