ADP1612/ADP1613

Rev. A | Page 7 of 28

2.4

2.2

2.0

1.8

1.6

1.4

1.2

1.8

2.3

2.8

3.3

3.8

4.3

4.8

INPUT VOLTAGE (V)

ADP1612

TA = +25°C

TA = +85°C

TA = –40°C

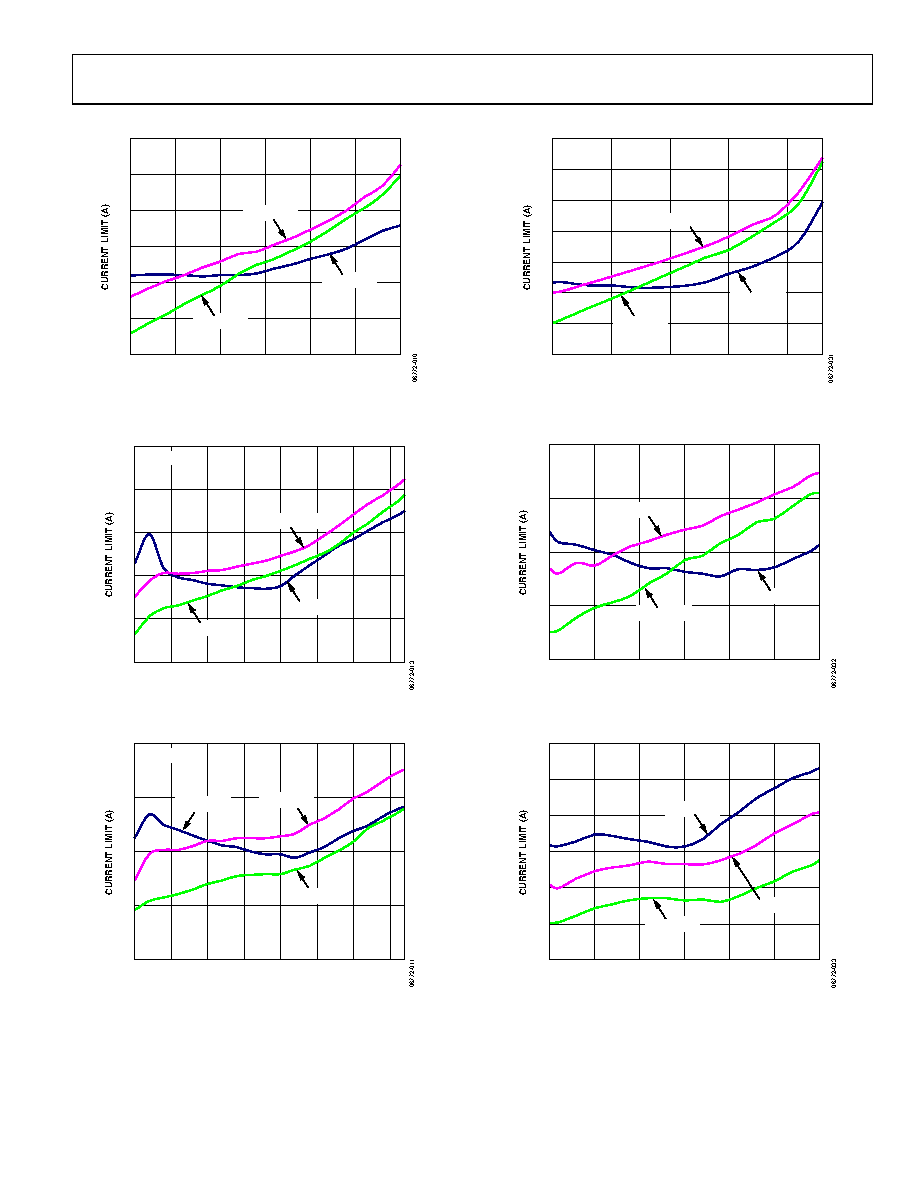

Figure 10. ADP1612 Switch Current Limit vs. Input Voltage, VOUT = 5 V

2.0

1.8

1.6

1.4

1.2

1.0

1.8

2.3

2.8

3.3

3.8

4.3

4.8

5.3

INPUT VOLTAGE (V)

ADP1612

TA = +25°C

TA = +85°C

TA = –40°C

Figure 11. ADP1612 Switch Current Limit vs. Input Voltage, VOUT = 8 V

1.6

1.4

1.2

1.0

0.8

1.8

2.3

2.8

3.3

3.8

4.3

4.8

5.3

INPUT VOLTAGE (V)

ADP1612

TA = +25°C

TA = –40°C

TA = +85°C

Figure 12. ADP1612 Switch Current Limit vs. Input Voltage, VOUT = 15 V

3.4

3.2

3.0

2.8

2.6

2.4

2.2

2.0

2.5

3.0

3.5

4.0

4.5

INPUT VOLTAGE (V)

ADP1613

TA = +25°C

TA = +85°C

TA = –40°C

Figure 13. ADP1613 Switch Current Limit vs. Input Voltage, VOUT = 5 V

2.6

2.4

2.2

2.0

1.8

2.5

3.0

3.5

4.0

INPUT VOLTAGE (V)

4.5

5.0

5.5

ADP1613

TA = +25°C

TA = +85°C

TA = –40°C

Figure 14. ADP1613 Switch Current Limit vs. Input Voltage, VOUT = 8 V

2.6

2.4

2.2

2.0

1.8

1.6

1.4

2.5

3.0

3.5

4.0

INPUT VOLTAGE (V)

4.5

5.0

5.5

ADP1613

TA = +85°C

TA = +25°C

TA = –40°C

Figure 15. ADP1613 Switch Current Limit vs. Input Voltage, VOUT = 15 V
