E3S-A

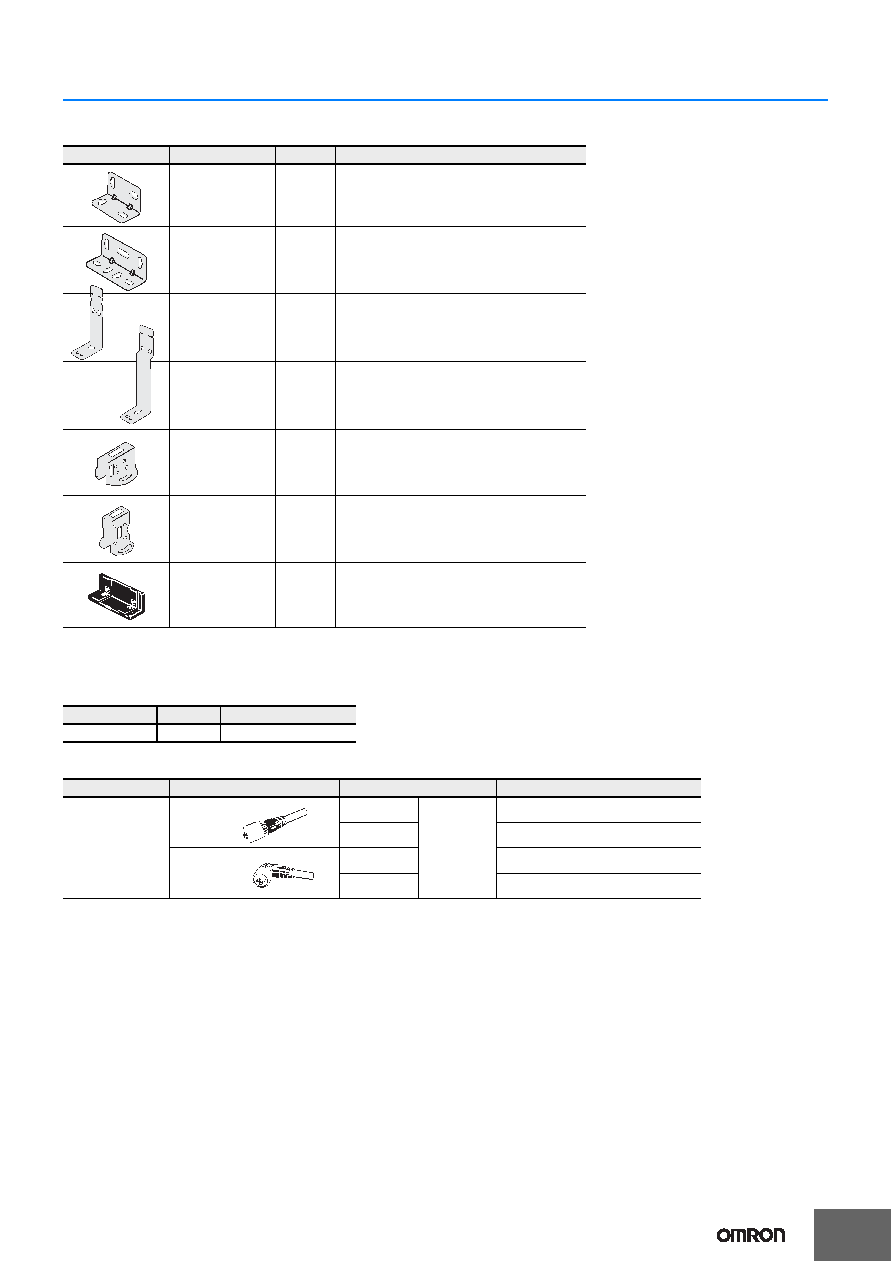

Mounting Brackets/Other

Some Mounting Brackets are provided with the Sensor. Order other Mounting Brackets separately if required.

Note: If a Through-beam Model is used, order two Mounting Brackets, one for the Emitter and one for the Receiver.

*1. Mount a Sensor with a Connector carefully because the Sensor I/O Connector will come into contact with the Mounting Bracket or Mounting Plate.

*2. Usage is not possible with Sensors with Connectors.

Sensors I/O Connectors

Sensors I/O Connectors

Note: When using Through-beam models, order one connector for the Receiver and one for the Emitter.

Appearance

Model

Quantity

Remarks

E39-L69

1

Provided with E3S-A Horizontal Sensors.

Two Brackets are provided with a Through-

beam Sensor.

E39-L70

1

Provided with E3S-A Vertical Sensors.

Two Brackets are provided with a Through-

beam Sensor.

E39-L59

1

Provided with E3S-A Vertical Pre-wired

Sensors.

E39-L81

1

Provided with E3S-A Vertical ConnectSor

Sensors.

E39-L97 *1

1

Protective Cover for Horizontal Sensors

E39-L98 *2

1

Protective Cover for Vertical Sensors

E39-L60

1

Close Mounting Plate:

Provided with E3S-A Connector Sensors.

Two Plates are provided with a Through-

beam Sensor.

Model

Quantity

Remarks

E39-G2

1

Provided with product.

Cable

Appearance

Cable type

Model

Standard

2 m

3-wire

XS2F-D421-DC0-F

5 m

XS2F-D421-GC0-F

2 m

XS2F-D422-DC0-F

5 m

XS2F-D422-GC0-F

Straight

L-shaped
