E3S-A

18

Diffuse-reflective Sensors (Horizontal)

Pre-wired Sensors

Sensors with Connectors

29.2

9

1.2 10.7

3.1

7.2

5

20

30

10.5

7.2

16.9

28.9

Stainless

steel

(SUS304)

*The Mounting Bracket can be attached to side A.

Optical axis

Optical

axis

A*

Two, M3

× 12 screws

With Mounting Bracket Attached

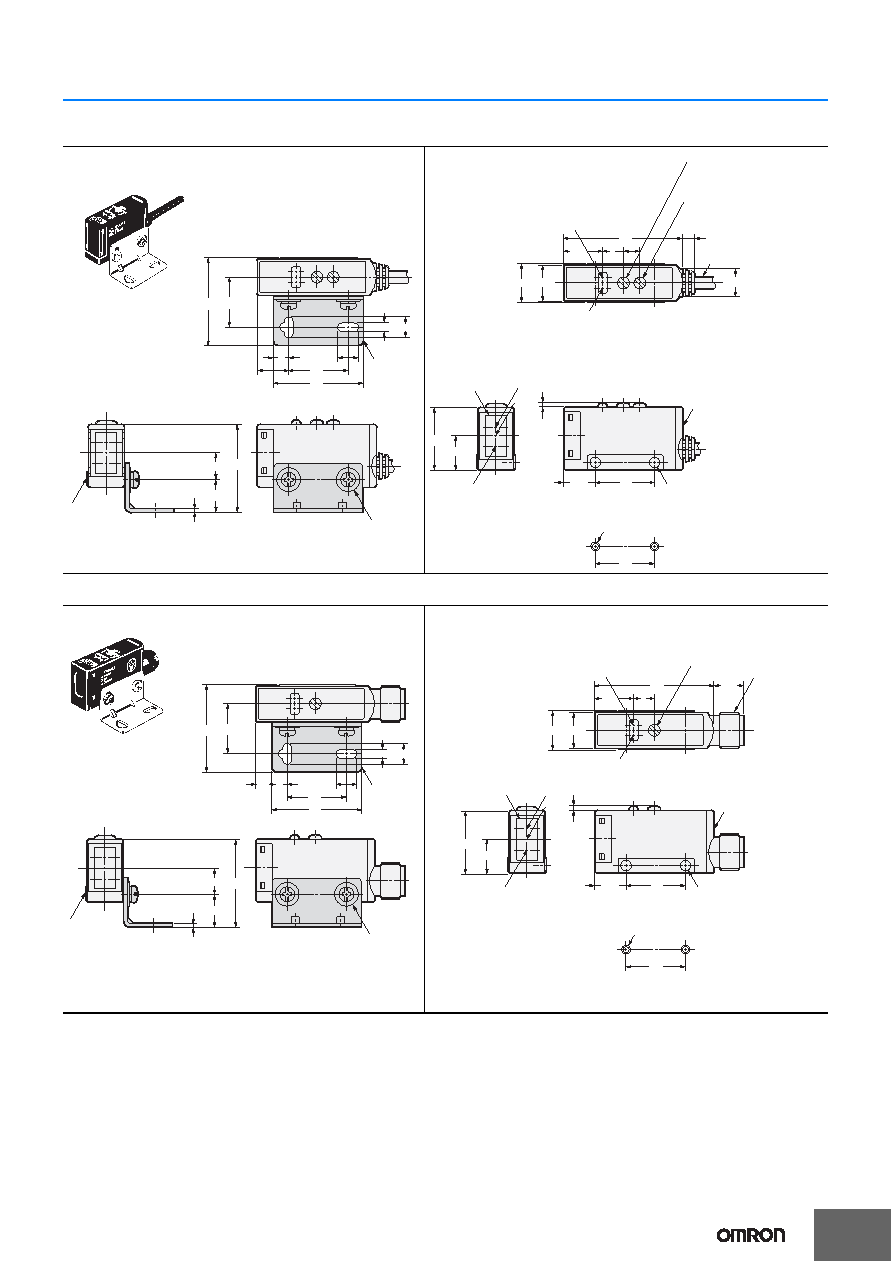

E3S-AD11/12/13/21/22/23

-AD31/32/33/41/42/43

1.3

10.5

20

11.5

21

40

12.9

7

5.5

(4)

8.8 dia.

12

12.4

20

Emitter

Receiver

*1. Timer adjuster: Not available on E3S-AD11, E3S-AD12, E3S-AD13, E3S-AD31,

E3S-AD32 and E3S-AD33.

Turbo switch: Available on E3S-AD21 and E3S-AD41 only.

*2. The E3S-AD11, E3S-AD12, E3S-AD13, E3S-AD31, E3S-AD32, or E3S-AD33 has three conductors.

Lens (7

× 14)

Optical

axis

Two, M3

× 12 screws

Stability indicator (green)

Light indicator (red)

Operation mode

selector switch

Two, M3 holes

4-dia. vinyl-insulated

round cable

with 4 conductors

(Conductor cross section: 0.2 mm2,

Insulator diameter: 1.1 mm),

Standard length: 2 m *2

Sensitivity adjuster (white)

Timer adjuster/

Turbo switch (black) *1

Turn to adjust the timer:

push to switch turbo function

Mounting Holes

5.5

29.2

9

1.2 10.7

3.1

7.2

5

20

30

7.2

16.9

28.9

Stainless

steel

(SUS304)

*The Mounting Bracket can be attached to side A.

Optical axis

Optical

axis

A*

Two, M3

× 12 screws

With Mounting Bracket Attached

E3S-AD16/17/18/36/37/38

11.5

21

10.5

20

40

12.9

7

(10)

12

12.4

20

1.3

Emitter

Receiver

Lens (7

× 14)

Two, M3

× 12 screws

Stability indicator (green)

Light indicator (red)

Operation mode

selector switch

Two, M3 holes

Sensitivity adjuster (white)

Optical

axis

M12 Connector

Mounting Holes
