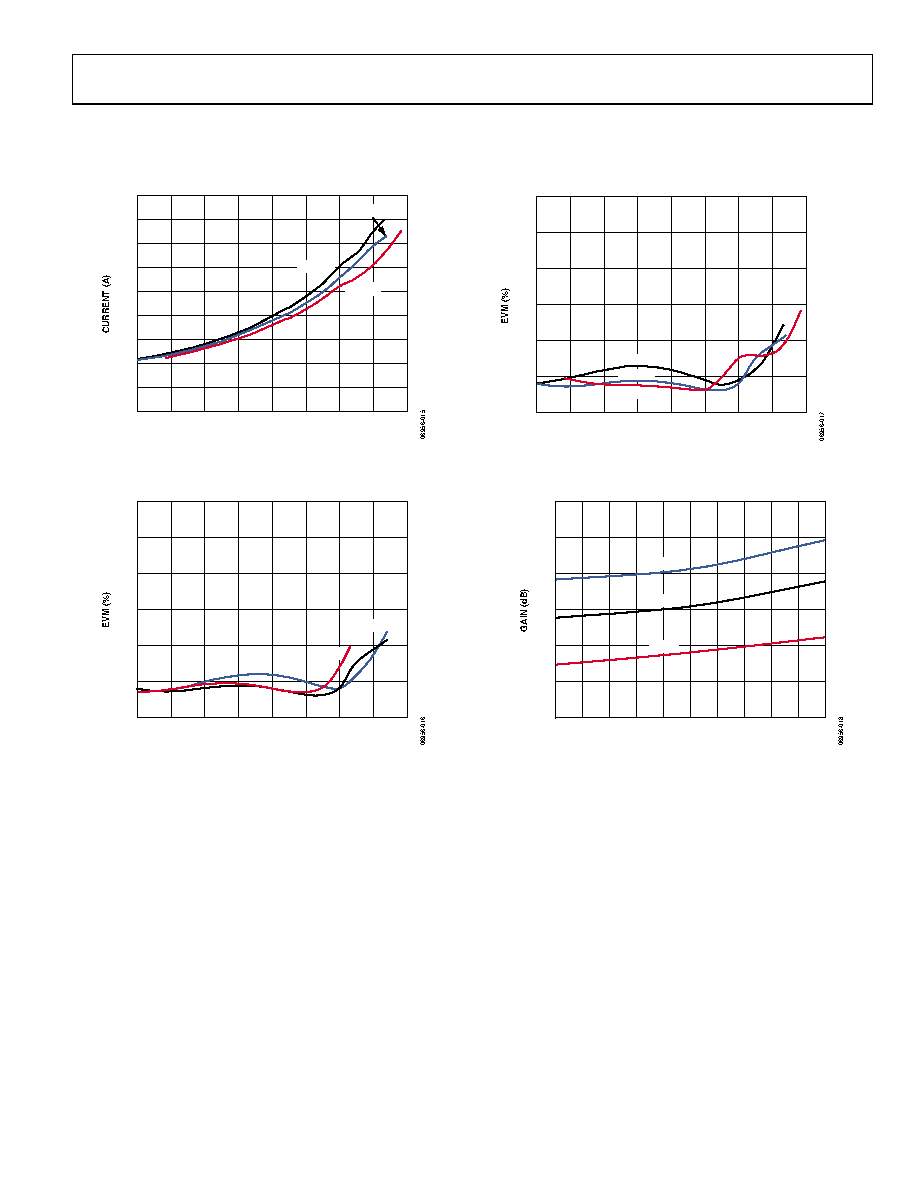

9 / 16 page  ADL5571 Rev. 0 | Page 9 of 16 VCC = 5 V T = 25°C, 1024 FFT, 16 QAM OFDMA modulated carrier, 10 MHz channel BW, ZL = 50 Ω, STBY = 0 V, VREG = 2.85 V, 31% duty cycle, ACPR integration BW = 100 kHz (5.05 MHz offset) or 1 MHz (6.5 MHz, 11 MHz, 15 MHz, and 20.5 MHz offset), unless otherwise noted. 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 14 16 18 20 22 24 26 28 30 POUT (dBm) 2.7GHz 2.5GHz 2.6GHz Figure 11. Burst RMS Current vs. POUT at 2.5 GHz, 2.6 GHz, and 2.7 GHz 14 16 18 20 22 24 26 28 30 POUT (dBm) +85°C +25°C –40°C 0 2 4 6 8 10 12 Figure 12. EVM vs. POUT at 2.6 GHz, Temperatures −40°C, +25°C, and +85°C 0 14 16 18 20 22 24 26 28 30 POUT (dBm) 2 4 6 8 10 12 2.7GHz 2.5GHz 2.6GHz Figure 13. EVM vs. POUT at 2.5 GHz, 2.6 GHz, and 2.7 GHz 22 24 26 28 30 32 34 2500 2520 2540 2560 2580 2600 2620 2640 2660 2680 2700 FREQUENCY (MHz) +85°C +25°C –40°C Figure 14. Gain vs. Frequency at POUT = 25 dBm, Temperatures −40°C, +25°C, and +85°C |
|
|
