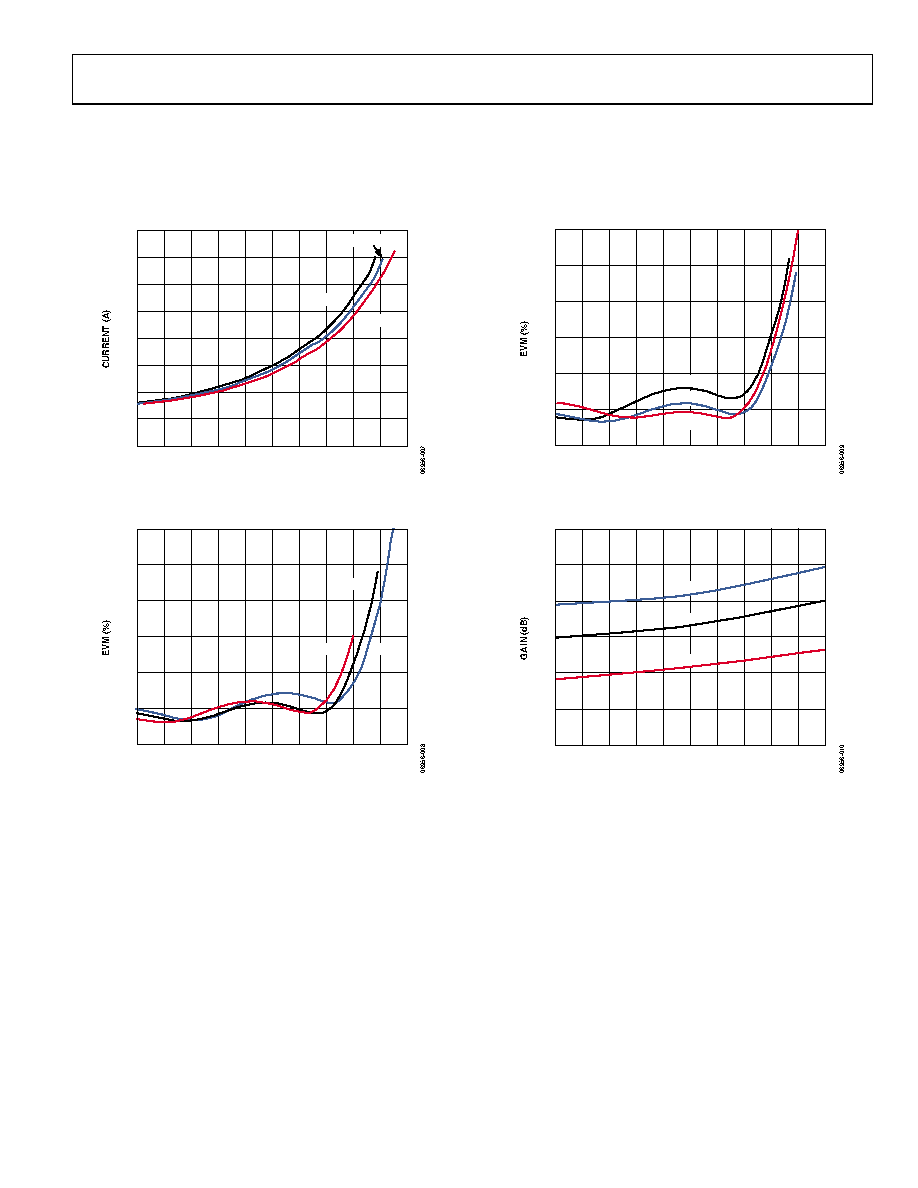

7 / 16 page  ADL5571 Rev. 0 | Page 7 of 16 TYPICAL PERFORMANCE CHARACTERISTICS VCC = 3.3 V T = 25°C, 1024 FFT, 16 QAM OFDMA modulated carrier, 10 MHz channel BW, ZL = 50 Ω, STBY = 0 V, VREG = 2.85 V, 31% duty cycle, ACPR integration BW = 100 kHz (5.05 MHz offset) or 1 MHz (6.5 MHz, 11 MHz, 15 MHz, and 20.5 MHz offset), unless otherwise noted. 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 10 12 14 16 18 20 22 24 26 28 30 POUT (dBm) 2.7GHz 2.5GHz 2.6GHz Figure 3. Burst RMS Current vs. POUT at 2.5 GHz, 2.6 GHz, and 2.7 GHz 10 12 14 16 18 20 22 24 26 28 30 POUT (dBm) +25°C +85°C –40°C 0 2 4 6 8 10 12 Figure 4. EVM vs. POUT at 2.6 GHz, Temperatures −40°C, +25°C, and +85°C 0 10 12 14 16 18 20 22 24 26 28 30 POUT (dBm) 2 4 6 8 10 12 2.7GHz 2.5GHz 2.6GHz Figure 5. EVM vs. POUT at 2.5 GHz, 2.6 GHz, and 2.7 GHz 22 24 26 28 30 32 34 2500 2520 2540 2560 2580 2600 2620 2640 2660 2680 2700 +25°C +85°C –40°C FREQUENCY (MHz) Figure 6. Gain vs. Frequency at POUT = 25 dBm, Temperatures −40°C, +25°C, and +85°C |
|
|
