Data Sheet
ADL8124
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 29

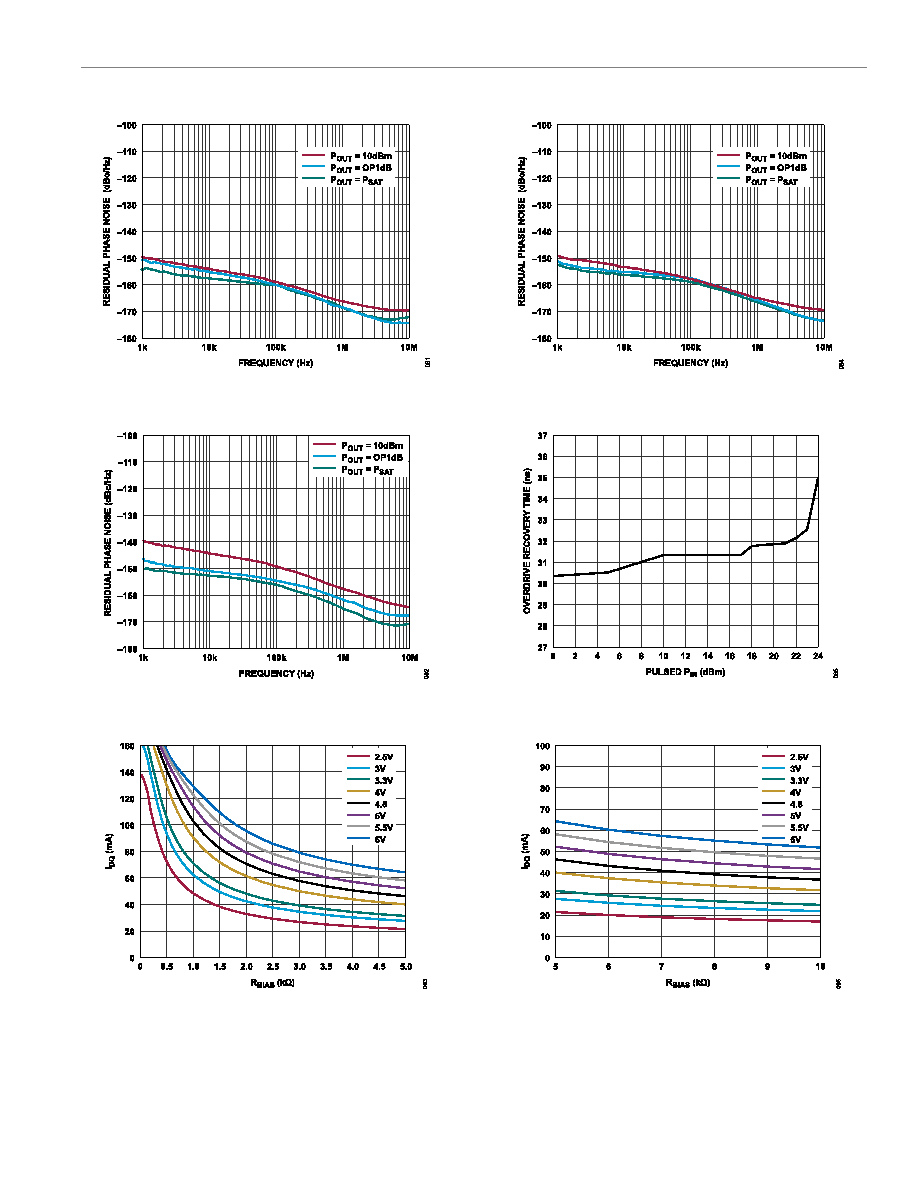

Figure 81. Residual Phase Noise vs. Frequency at 5GHz for Various
POUT Values, VDD = 5V, IDQ = 85mA, RBIAS = 1731Ω
Figure 82. Residual Phase Noise vs. Frequency at 15GHz for Various
POUT Values, VDD = 5V, IDQ = 85mA, RBIAS = 1731Ω
Figure 83. IDQ vs. RBIAS for Various Supply Voltages, 0Ω to 5kΩ
Figure 84. Residual Phase Noise vs. Frequency at 10GHz for Various
POUT Values, VDD = 5V, IDQ = 85mA, RBIAS = 1731Ω
Figure 85. Overdrive Recovery Time vs. Pulsed PIN at 8GHz, Recovery to
Within 90% of Small Signal Gain Value, VDD = 5V, IDQ = 85mA, RBIAS = 1731Ω
Figure 86. IDQ vs. RBIAS for Various Supply Voltages, 5kΩ to 10kΩ
