Data Sheet
ADL8124

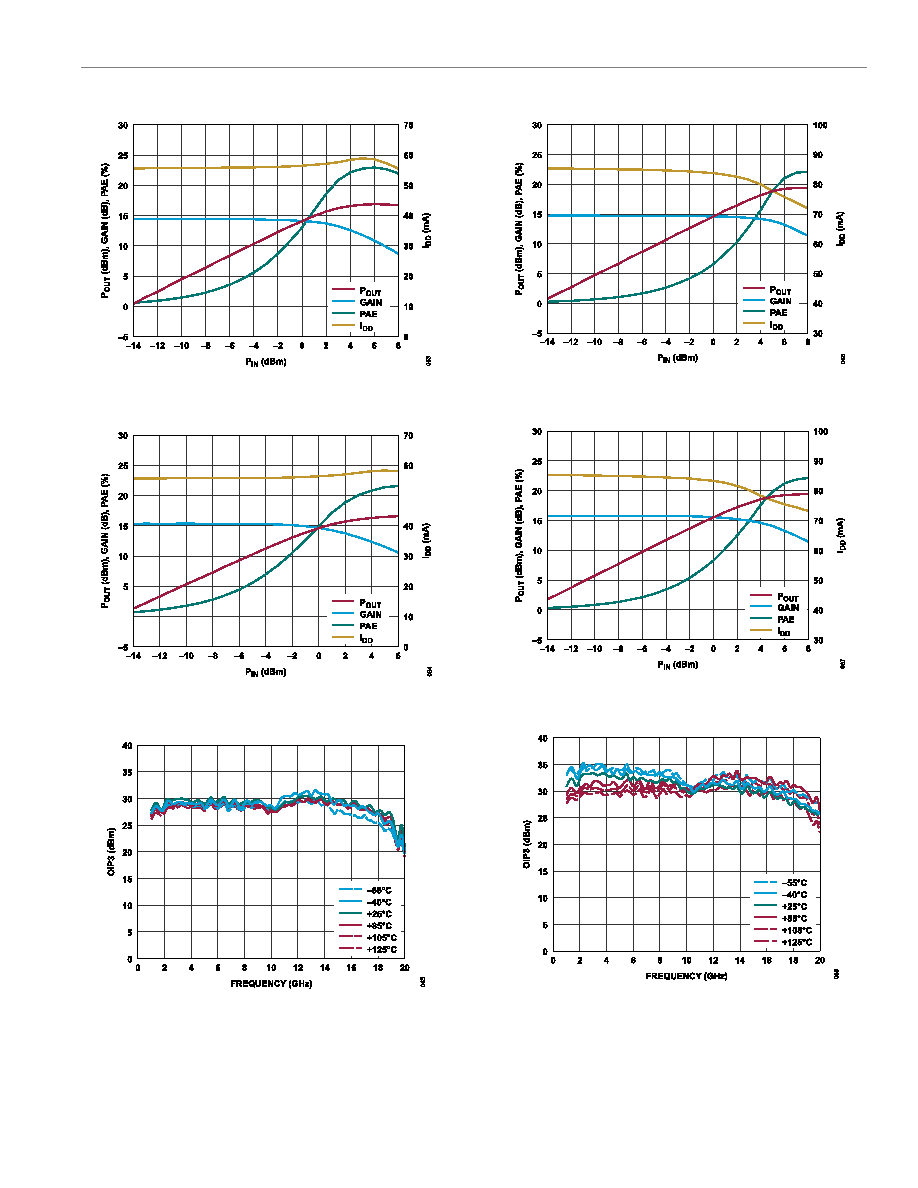

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 18 of 29
Figure 63. POUT, Gain, PAE, and IDD vs. PIN,
Power Compression at 10GHz, VDD = 3.3V, RBIAS = 1540Ω
Figure 64. POUT, Gain, PAE, and IDD vs. PIN,
Power Compression at 15GHz, VDD = 3.3V, RBIAS = 1540Ω
Figure 65. OIP3 vs. Frequency for Various Temperatures, 1GHz to 20GHz,
VDD = 3.3V, IDQ = 55mA, RBIAS = 1540Ω, POUT per Tone = 0dBm
Figure 66. POUT, Gain, PAE, and IDD vs. PIN,
Power Compression at 10GHz, VDD = 5V, RBIAS = 1731Ω
Figure 67. POUT, Gain, PAE, and IDD vs. PIN,
Power Compression at 15GHz, VDD = 5V, RBIAS = 1731Ω
Figure 68. OIP3 vs. Frequency for Various Temperatures, 1GHz to 20GHz,
VDD = 5V, IDQ = 85mA, RBIAS = 1731Ω, POUT per Tone = 0dBm
