Data Sheet
ADAR4002
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 14 of 66
V1P2 = 1.2 V, V1P0 = 1.0 V, TA = 25°C, frequency = 10 GHz, TDU code = 0, and DSA code = 0, unless otherwise specified. IP2 tone spacing
= 1 GHz, and IP3 tone spacing = 10 MHz. Low-side tone reported for IP2. Port 1 = RF1 and Port 2 = RF2. Gain is S21 and reverse gain is S12.
Error plots reference an ideal line. Variation plots are self referenced and are a measure of change from the self reference.

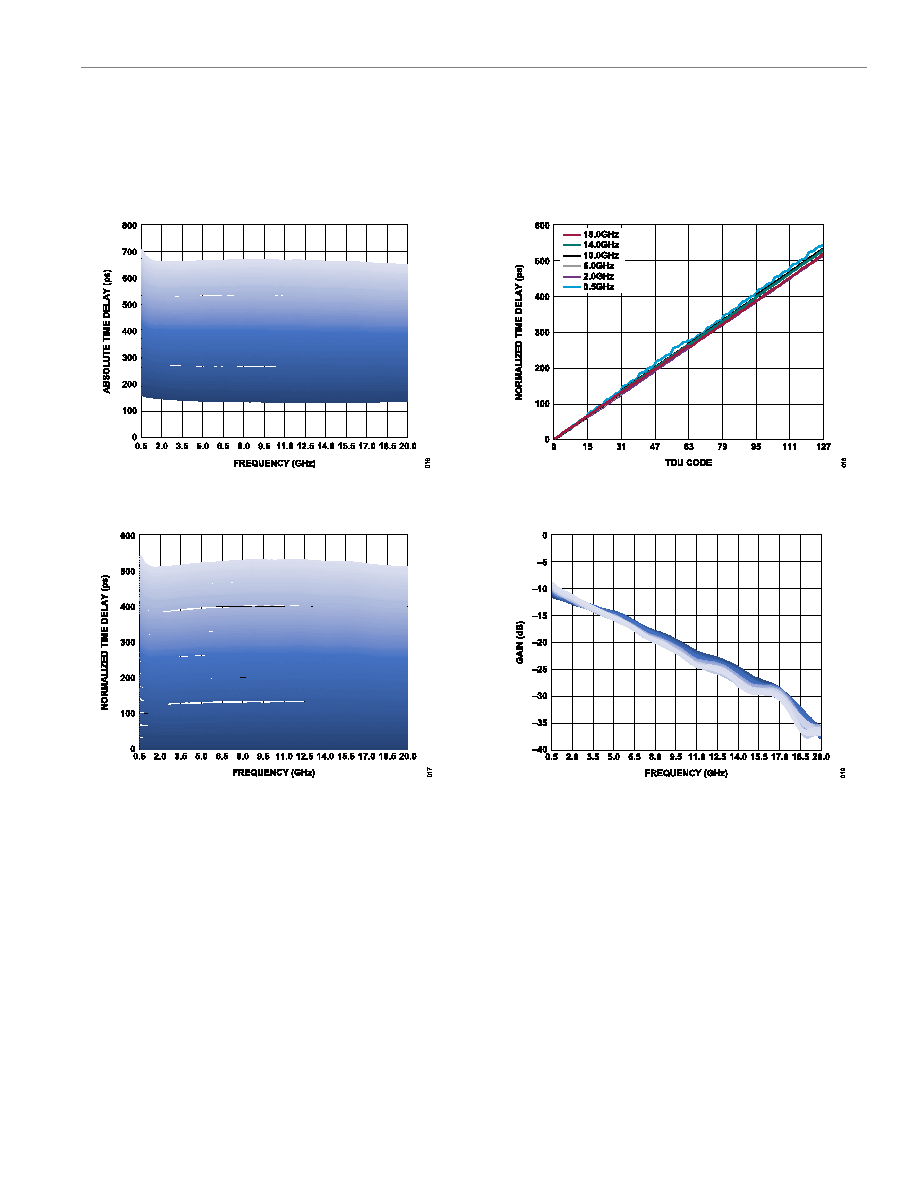

TIME DELAY SWEEP, TIME DELAY RANGE 0
Figure 10. Absolute Time Delay vs. Frequency over TDU Code 0 to TDU Code
127, Darkest Blue Is TDU = 0 and Lightest Blue is TDU = 127
Figure 11. Normalized Time Delay vs. Frequency over TDU Code 0 to TDU
Code 127, Darkest Blue Is TDU = 0 and Lightest Blue is TDU = 127
Figure 12. Normalized Time Delay vs. TDU Code over Frequencies 0.5 GHz,
2.0 GHz, 6.0 GHz, 10.0 GHz, 14.0 GHz, and 18.0 GHz
Figure 13. Gain vs. Frequency over TDU Code 0 to TDU Code 127, Darkest
Blue Is TDU = 0 and Lightest Blue is TDU = 127
