Data Sheet

ADL6337

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. E | 11 of 53

ADL6337-A

V50AMP1 = V50AMP2 = 5 V, TA = 25°C, input power = −25 dBm (−25 dBm per tone for two tones), DSA attenuation= 0 dB, RS = RL = 50 Ω,

TRM_AMP1_IP3_0 = 2, TRM_AMP2_IP3_= 3, TRM_AMP1_IREF_0_0 = TRM_AMP1_IREF_1 = TRM_AMP1_IREF_2 = TRM_AMP1_IREF_3

= 13, TRM_AMP2_IREF_0_0 = TRM_AMP2_IREF_1 = TRM_AMP2_IREF_2 = TRM_AMP2_IREF_3 = 11, unless otherwise noted.

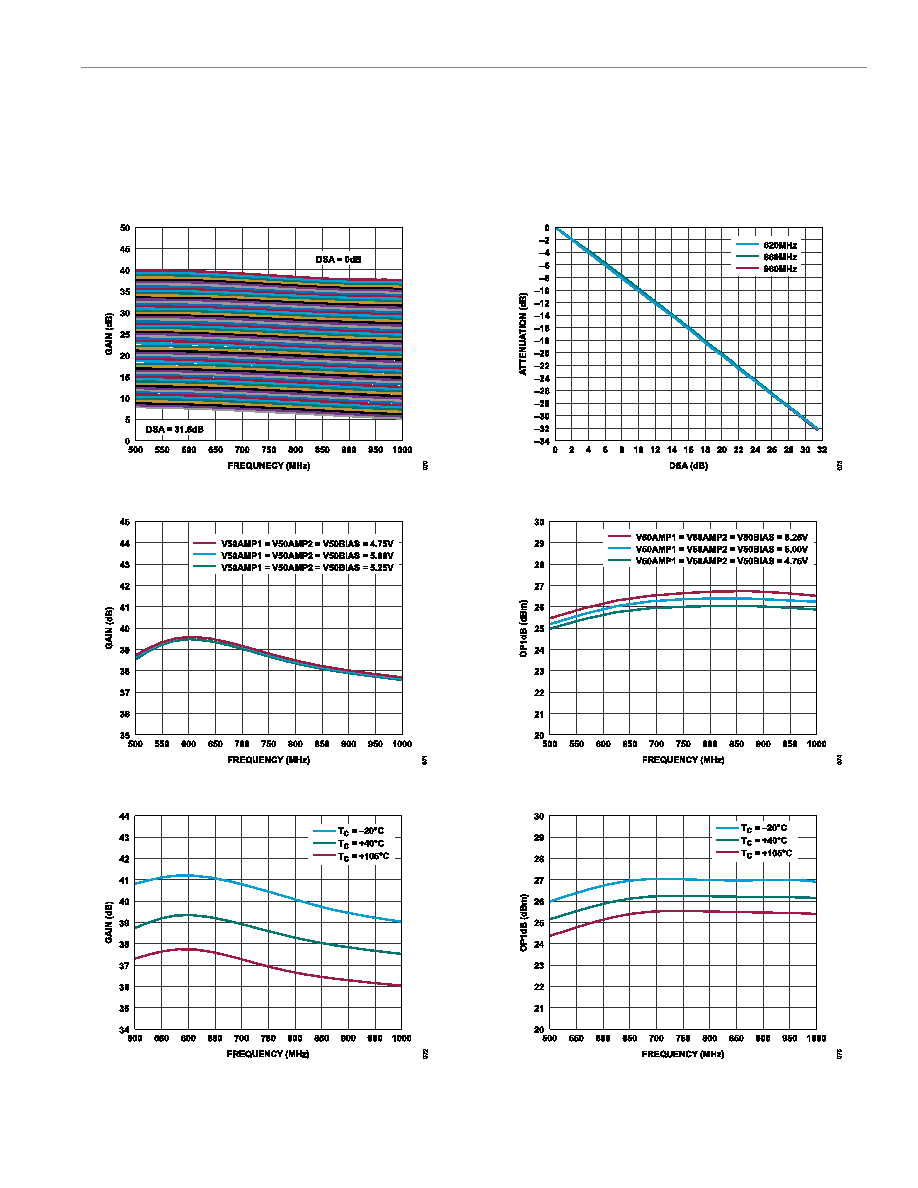

Figure 12. Gain vs. Frequency; 0.5 dB DSA Steps

Figure 13. Gain vs. Frequency for Various Supplies

Figure 14. Gain vs. Frequency for Various Temperatures

Figure 15. Attenuation vs. DSA at 620 MHz, 869 MHz, and 960 MHz

Figure 16. OP1dB vs. Frequency for Various Supplies

Figure 17. OP1dB vs. Frequency for Various Temperatures
