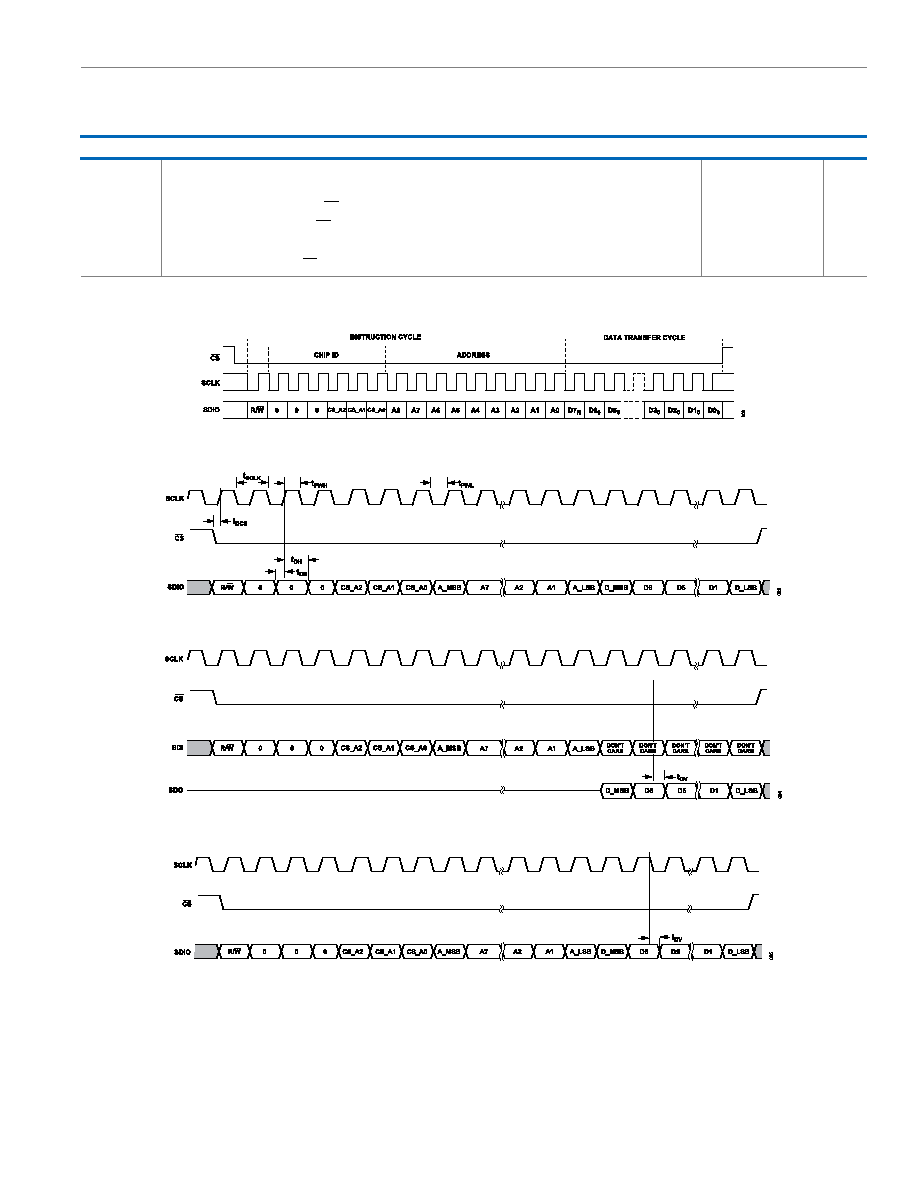

6 / 53 page  Data Sheet ADL6337 SPECIFICATIONS analog.com Rev. E | 6 of 53 Table 3. SPI AC Timing (Continued) Parameter Description Min Typ Max Unit tDS Setup time between data and rising edge of SCLK 5 ns tDH Hold time between data and rising edge of SCLK 5 ns tDCS Setup time between falling edge of CS and rising edge of SCLK 10 ns tH Hold time between rising edge of CS and the last falling edge of SCLK, minimum 10 ns 10 ns tDV Maximum time delay between falling edge of SCLK and output data valid for a read operation 5 14 ns tZ Maximum time delay between CS deactivation and SDIO bus return to high impedance 12 ns Timing Diagrams Figure 2. SPI Register Timing, MSB First Figure 3. Timing Diagram for the SPI Register Write (3- and 4-Wire SPI Mode) Figure 4. Timing Diagram for SPI Register Read (4-Wire SPI Mode) Figure 5. Timing Diagram for SPI Register Read (3-Wire SPI Mode, SDIO Pin is Bidirectional Mode) |
|
