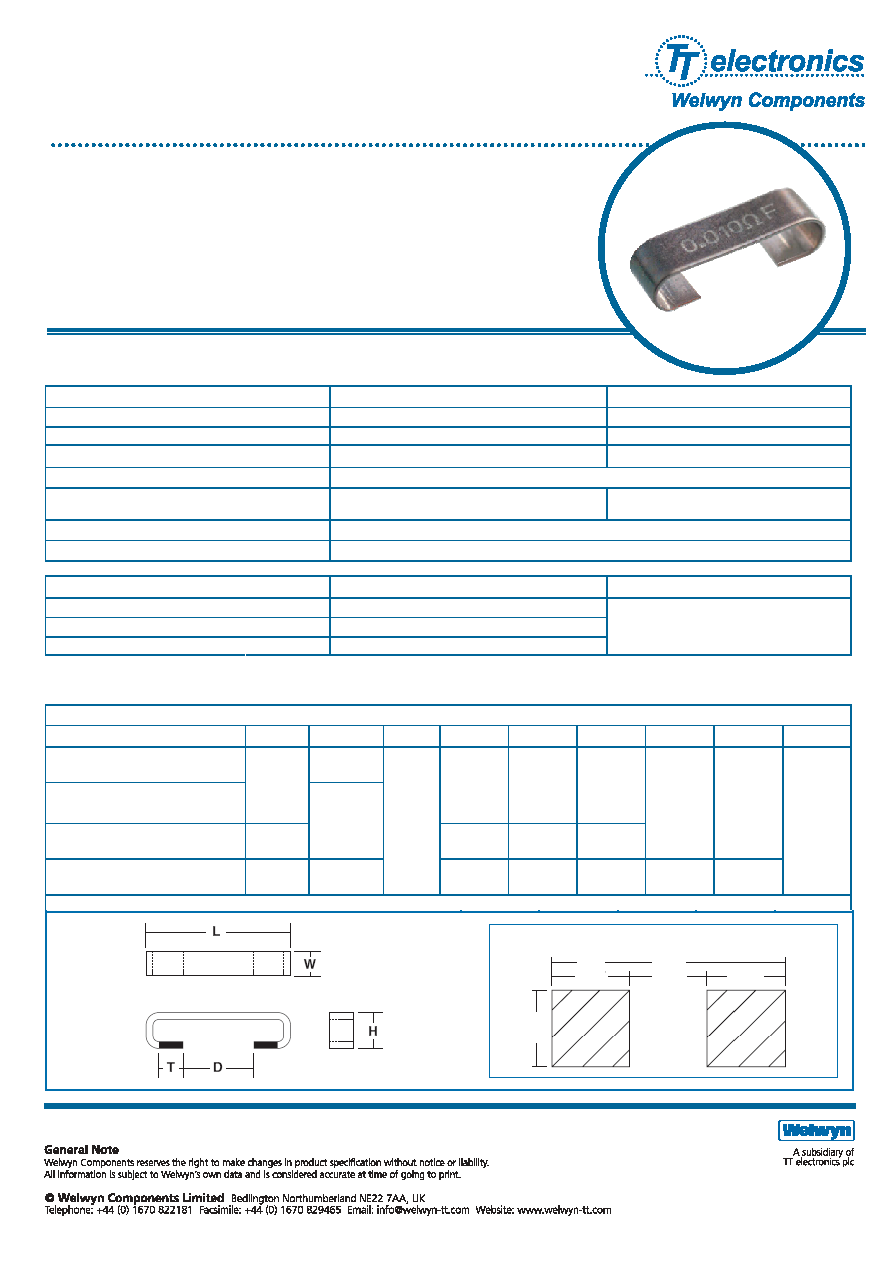

Surface Mount Sense Resistors

OARS, OARS-XP, OARSZ Series

•

Flexible leads for thermal expansion

•

Open-air design reduces PCB heating

•

Values down to 1mΩ

•

Element TCR ±20ppm/ºC

•

Zero-ohm 65A jumper version

•

RoHS compliant

Electrical Data

OARS1

OARS-XP

Power rating at 25°C

watts

2

4

Power rating at 85ºC

watts

1

2

Resistance range

ohms

R002 to R050

R001 to R025

Resistance Tolerance

%

≤

R002: 5, > R002: 1, 5

Standard Values

(Enquire for unlisted values)

milliohms 2, 3, 4, 5, 10, 15, 20, 22, 25, 30, 40, 50

1, 2, 2.5, 5, 7.5, 10, 20, 25

Inductance

nH

<10

Ambient temperature range

°C

-55 to +160

OARS-1Z

Comments

Current rating at 25°C

amps

65

Current rating at 85°C

amps

46

Ambient temperature range

°C

-55 to +160

Zero-ohm jumper

Physical Data

Dimensions (mm) and recommended solder pads

Type

L

H

T

D

W

a nom. b nom. c nom. d nom.

OARS1 >R003, OARS-1Z

3.05

±0.76

OARS1-R003

11.18

±0.38

4.83

±0.76

3.18

±0.38

4.07

OARS1-R002

11.56

±0.38

3.51

±0.76

4.7

±0.76

3.56

±0.38

4.45

9.37

3.07

OARS-XP

10.7 to

12.0*

2.28 to

4.57*

2.36

±0.25

4.83

±0.76

6.35

±0.38

7.24

9.58

3.18

3.23

* Dependent on ohmic value

a

b

d

c

Issue F .09.07
