AT89LS53

0851C–MICRO–3/06

Interrupts

The AT89LS53 has a total of six interrupt vectors: two

external interrupts (INT0 and INT1), three timer interrupts

(Timers 0, 1, and 2), and the serial port interrupt. These

interrupts are all shown in Figure 10.

Each of these interrupt sources can be individually enabled

or disabled by setting or clearing a bit in Special Function

disables all interrupts at once.

Note that Table 10 shows that bit position IE.6 is unimple-

mented. In the AT89C51 and AT89LV51, bit position IE.5 is

also unimplemented. User software should not write 1s to

these bit positions, since they may be used in future AT89

products.

Timer 2 interrupt is generated by the logical OR of bits TF2

and EXF2 in register T2CON. Neither of these flags is

cleared by hardware when the service routine is vectored

to. In fact, the service routine may have to determine

whether it was TF2 or EXF2 that generated the interrupt,

and that bit will have to be cleared in software.

The Timer 0 and Timer 1 flags, TF0 and TF1, are set at

S5P2 of the cycle in which the timers overflow. The values

are then polled by the circuitry in the next cycle. However,

the Timer 2 flag, TF2, is set at S2P2 and is polled in the

same cycle in which the timer overflows.

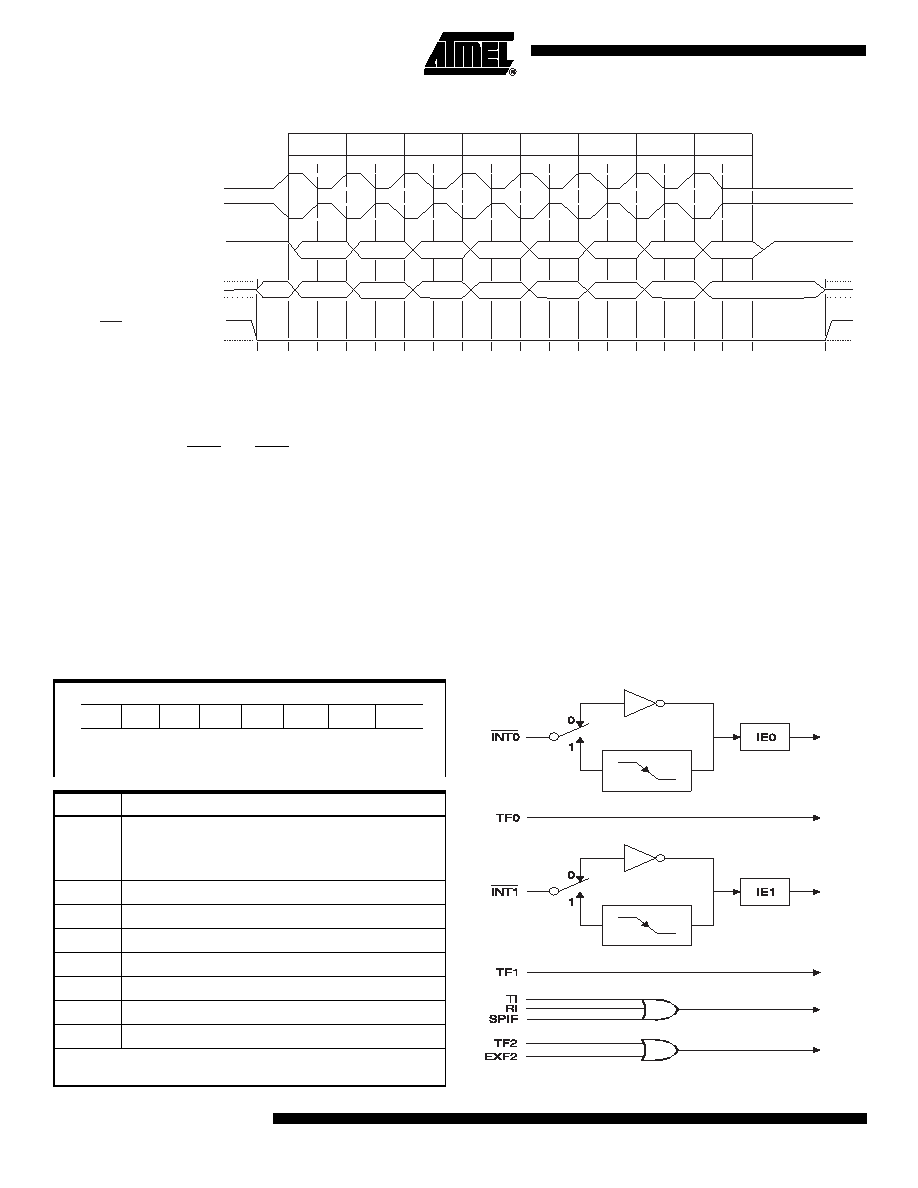

Figure 9. SPI Transfer Format with CPHA = 1

*Not defined but normally LSB of previously transmitted character

MSB

LSB

MSB

LSB

SCK CYCLE #

(FOR REFERENCE)

SCK (CPOL=0)

SCK (CPOL=1)

MOSI

(FROM MASTER)

MISO

(FROM SLAVE)

SS (TO SLAVE)

Figure 10. Interrupt Sources

Table 10. Interrupt Enable (IE) Register

(MSB)

(LSB)

—

ET2

ET1

EX1

ET0

EX0

Enable Bit = 1 enables the interrupt.

Enable Bit = 0 disables the interrupt.

Symbol

Position

Function

IE.7

Disables all interrupts. If EA = 0, no interrupt

is acknowledged. If EA = 1, each interrupt

source is individually enabled or disabled by

setting or clearing its enable bit.

—

IE.6

Reserved.

ET2

IE.5

Timer 2 interrupt enable bit.

IE.4

SPI and UART interrupt enable bit.

ET1

IE.3

Timer 1 interrupt enable bit.

EX1

IE.2

External interrupt 1 enable bit.

ET0

IE.1

Timer 0 interrupt enable bit.

EX0

IE.0

External interrupt 0 enable bit.

User software should never write 1s to unimplemented bits, because

they may be used in future AT89 products.
