6.8
Write Identification page (available only in M95256-D devices)
The Identification page (64 bytes) is an additional page that can be written and (later) permanently locked in
Read-only mode.
Writing this page is achieved with the Write Identification page instruction (see Table 4. Instruction set). The Chip
select signal (S) is first driven low. The bits of the instruction byte, address bytes, and at least one data byte are
then shifted in on Serial data input (D). Address bit A10 must be 0, upper address bits are Don't care, the lower
address bits [A5:A0] define the byte address within the Identification page. The instruction sequence is shown in
Figure 16.

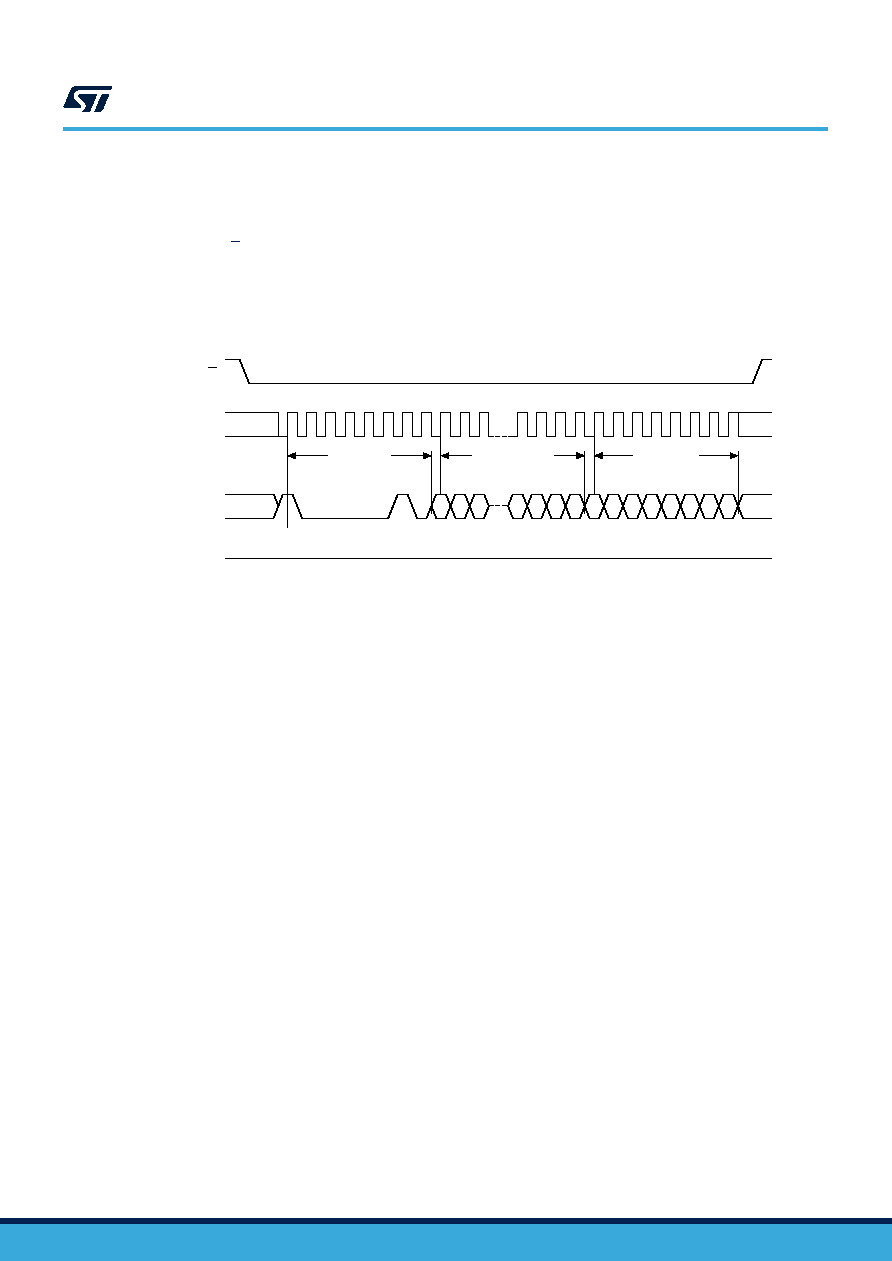

Figure 16. Write Identification page sequence
C
D
S
Q
15
2
1
3
4
5
6
7
8
9 10
20 21 22 23 24 25 26 27
14 13
3
2
1
0
28 29 30
High impedance
Instruction
16-bit address
0
7
6
5
4
3
2
0
1
Data byte
31
M95256-W M95256-R M95256-DF
Write Identification page (available only in M95256-D devices)
DS4712 - Rev 22
page 23/51
