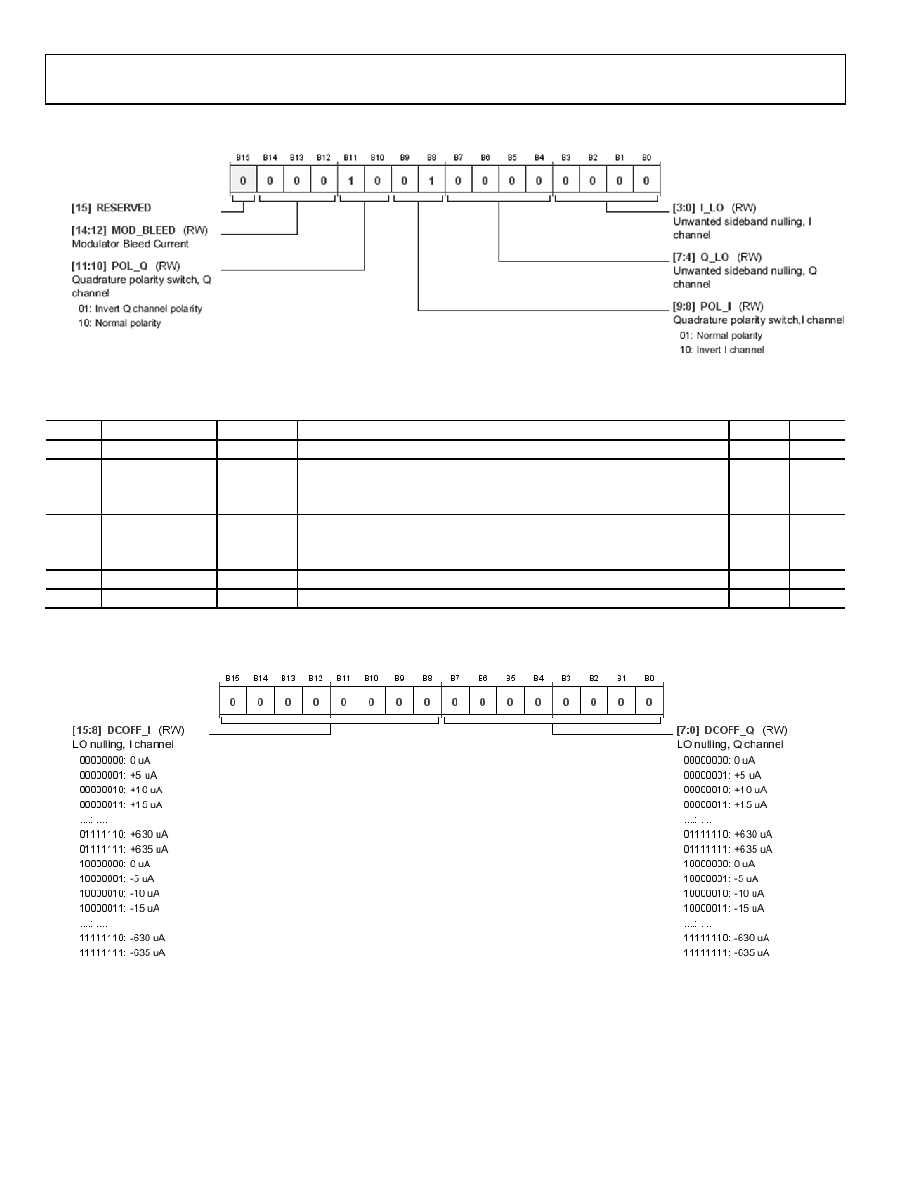

ADRF6720
Data Sheet
Address: 0x32, Reset: 0x0900, Name: MOD_CTL0
Table 26. Bit Descriptions for MOD_CTL0
Bits
Bit Name
Settings
Description
Reset
Access
[14:12]
MOD_BLEED
Modulator Bleed Current.
0x0
RW
[11:10]
POL_Q
Quadrature Polarity Switch, Q Channel.
0x2
RW
01
Inverted Q Channel Polarity.
10
Normal Polarity.
[9:8]
POL_I
Quadrature Polarity Switch, I Channel.
0x1
RW
01
Normal Polarity.
10
Inverted I Channel Polarity.
[7:4]
Q_LO
Unwanted Sideband Nulling, Q Channel.
0x0
RW
[3:0]
I_LO
Unwanted Sideband Nulling, I Channel.
0x0
RW
Address: 0x33, Reset: 0x0000, Name: MOD_CTL1
Rev. 0 | Page 38 of 44
