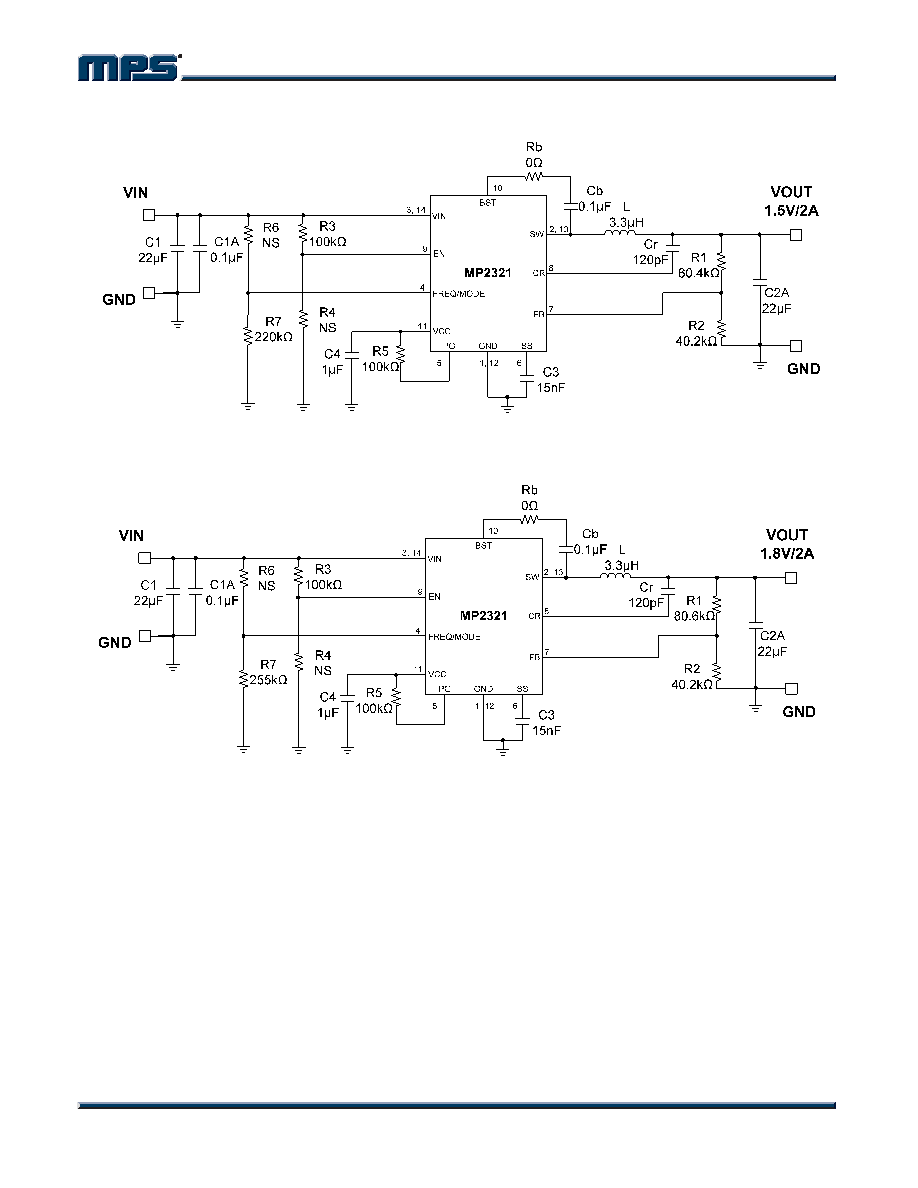

21 / 24 page  MP2321 – 19V, 2A, LOW IQ, STEP-DOWN CONVERTER MP2321 Rev. 1.0 www.MonolithicPower.com 21 10/26/2016 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited. © 2016 MPS. All Rights Reserved. TYPICAL APPLICATION CIRCUITS (continued) Figure 15: VIN = 12V, VOUT = 1.5V, IOUT = 2A, FS = 500kHz NOTE: Use R6 = 196kΩ to set forced PWM. Use R7 = 220kΩ to set auto PFM/PWM. The recommended R6 and R7 values are based on Equation (12) and Equation (13) and optimized according to test results. Figure 16: VIN = 12V, VOUT = 1.8V, IOUT = 2A, FS = 500kHz NOTE: Use R6 = 243kΩ to set forced PWM. Use R7 = 255kΩ to set auto PFM/PWM. The recommended R6 and R7 values are based on Equation (12) and Equation (13) and optimized according to test results. |
|
|
