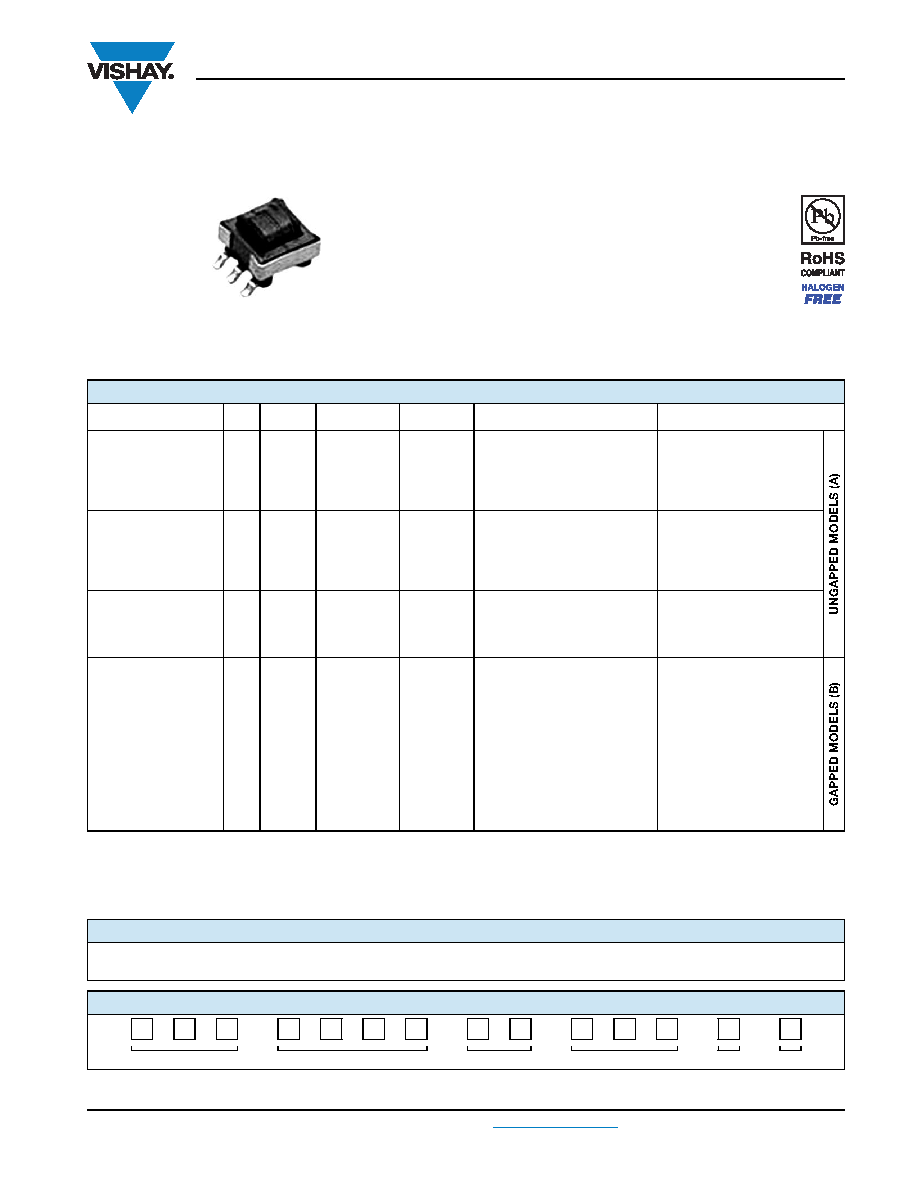

Document Number: 34063

www.vishay.com

Revision: 24-Feb-11

1

Surface Mount Transformers/Inductors,

Gapped and Ungapped, Custom Configurations Available

LPE-3325

Vishay Dale

FEATURES

• Compliant to RoHS Directive 2002/95/EC

• Halogen-free according to IEC 61249-2-21

definition

ELECTRICAL SPECIFICATIONS

Inductance Range: 10 μH to 3900 μH, measured

HP 4263A or 4284A impedance analyzer

DC Resistance Range: 0.06

 to 18.0 , measured at

+ 25 °C ± 5 °C

Rated Current Range: 1.00 A to 0.06 A

Notes

•

UNGAPPED MODELS: Highest possible inductance with the lowest DCR and highest Q capability. Beneficial in filter, impedance matching and

line coupling devices.

GAPPED MODELS: Capable of handling large amounts of DC current, tighter inductance tolerance

with

better

temperature

stability

than

ungapped models. Beneficial in DC/DC converters or other circuits carrying DC currents or requiring inductance stability over a temperature range.

Note

• Series is also available with SnPb terminations by using package code RY for tape and reel (in place of ER) or SM for bulk (in place of EB).

STANDARD ELECTRICAL SPECIFICATIONS

MODEL

IND.

(μH)

IND.

TOL.

SCHEMATIC

LETTER

DCR MAX.

(

)

MAX. RATED DC CURRENT

SATURATING CURRENT

LPE3325ER100NU

10

± 30 %

A

0.06

1.01

N/A

LPE3325ER150NU

15

± 30 %

A

0.08

0.91

N/A

LPE3325ER220NU

22

± 30 %

A

0.09

0.83

N/A

LPE3325ER330NU

33

± 30 %

A

0.11

0.75

N/A

LPE3325ER470NU

47

± 30 %

A

0.14

0.69

N/A

LPE3325ER680NU

68

± 30 %

A

0.16

0.63

N/A

LPE3325ER101NU

100

± 30 %

A

0.20

0.57

N/A

LPE3325ER151NU

150

± 30 %

A

0.76

0.29

N/A

LPE3325ER221NU

220

± 30 %

A

0.92

0.26

N/A

LPE3325ER331NU

330

± 30 %

A

1.13

0.24

N/A

LPE3325ER471NU

470

± 30 %

A

1.35

0.22

N/A

LPE3325ER681NU

680

± 30 %

A

1.62

0.20

N/A

LPE3325ER102NU

1000

± 30 %

A

1.97

0.18

N/A

LPE3325ER152NU

1500

± 30 %

A

2.41

0.16

N/A

LPE3325ER222NU

2200

± 30 %

A

3.00

0.15

N/A

LPE3325ER332NU

3300

± 30 %

A

5.96

0.10

N/A

LPE3325ER392NU

3900

± 30 %

A

7.00

0.10

N/A

LPE3325ER100MG

10

± 20 %

A

0.22

0.54

1.480

LPE3325ER150MG

15

± 20 %

A

0.27

0.48

1.240

LPE3325ER220MG

22

± 20 %

A

0.42

0.39

1.050

LPE3325ER330MG

33

± 20 %

A

0.65

0.31

0.872

LPE3325ER470MG

47

± 20 %

A

0.97

0.26

0.740

LPE3325ER680MG

68

± 20 %

A

1.45

0.21

0.622

LPE3325ER101MG

100

± 20 %

A

2.22

0.17

0.518

LPE3325ER151MG

150

± 20 %

A

3.55

0.13

0.426

LPE3325ER221MG

220

± 20 %

A

4.31

0.12

0.354

LPE3325ER331MG

330

± 20 %

A

6.72

0.10

0.290

LPE3325ER471MG

470

± 20 %

A

9.83

0.08

0.244

LPE3325ER681MG

680

± 20 %

A

14.8

0.07

0.204

LPE3325ER102MG

1000

± 20 %

A

18.0

0.06

0.169

DESCRIPTION

LPE

3325

1000 μH

± 30 %

A

ER

e2

MODEL

SIZE

INDUCTANCE VALUE

INDUCTANCE TOLERANCE

CORE

PACKAGE CODE

JEDEC LEAD (Pb)-FREE STANDARD

GLOBAL PART NUMBER

L

P

E

3

32

5

E

R

1

02

N

U

PRODUCT FAMILY

SIZE

PACKAGE CODE

INDUCTANCE VALUE

TOL.

CORE
