LAYOUT PROCEDURE

To get high efficiency, good regulation, and stability, a well-

designed printed circuit board layout is required. Where

possible, use the sample application board layout as a model.

Follow these guidelines when designing printed circuit boards

(see Figure 1):

•

GND.

•

L1 to SW and PGND as short as possible.

•

possible.

•

Keep high current traces as short and as wide as possible.

•

Place the feedback resistors as close to the FB pin as

possible to prevent noise pickup.

•

Place the compensation components as close as possible to

COMP.

•

Avoid routing high impedance traces near any node

connected to SW or near the inductor to prevent radiated

noise injection.

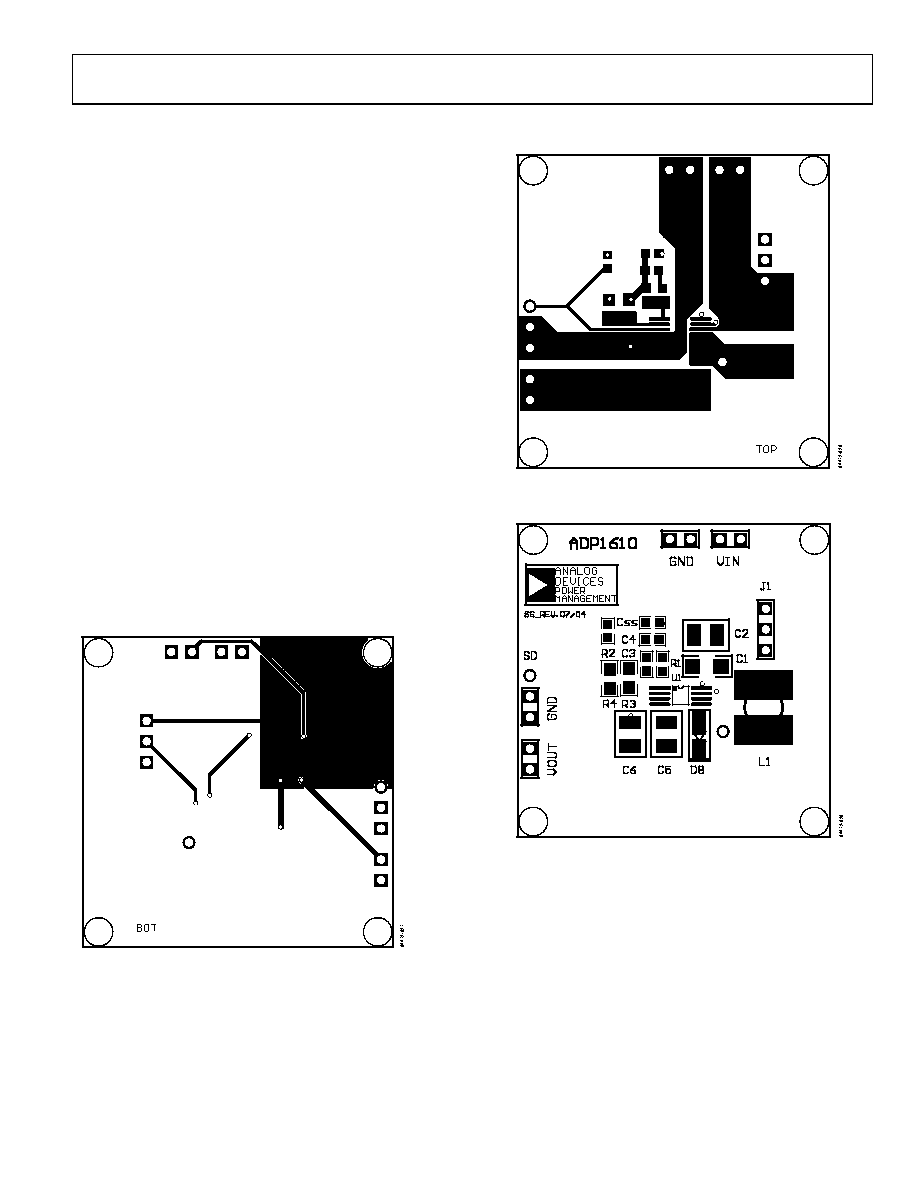

Figure 31. Sample Application Board (Bottom Layer)

Figure 32. Sample Application Board (Top Layer)

Figure 33. Sample Application Board (Silkscreen Layer)
