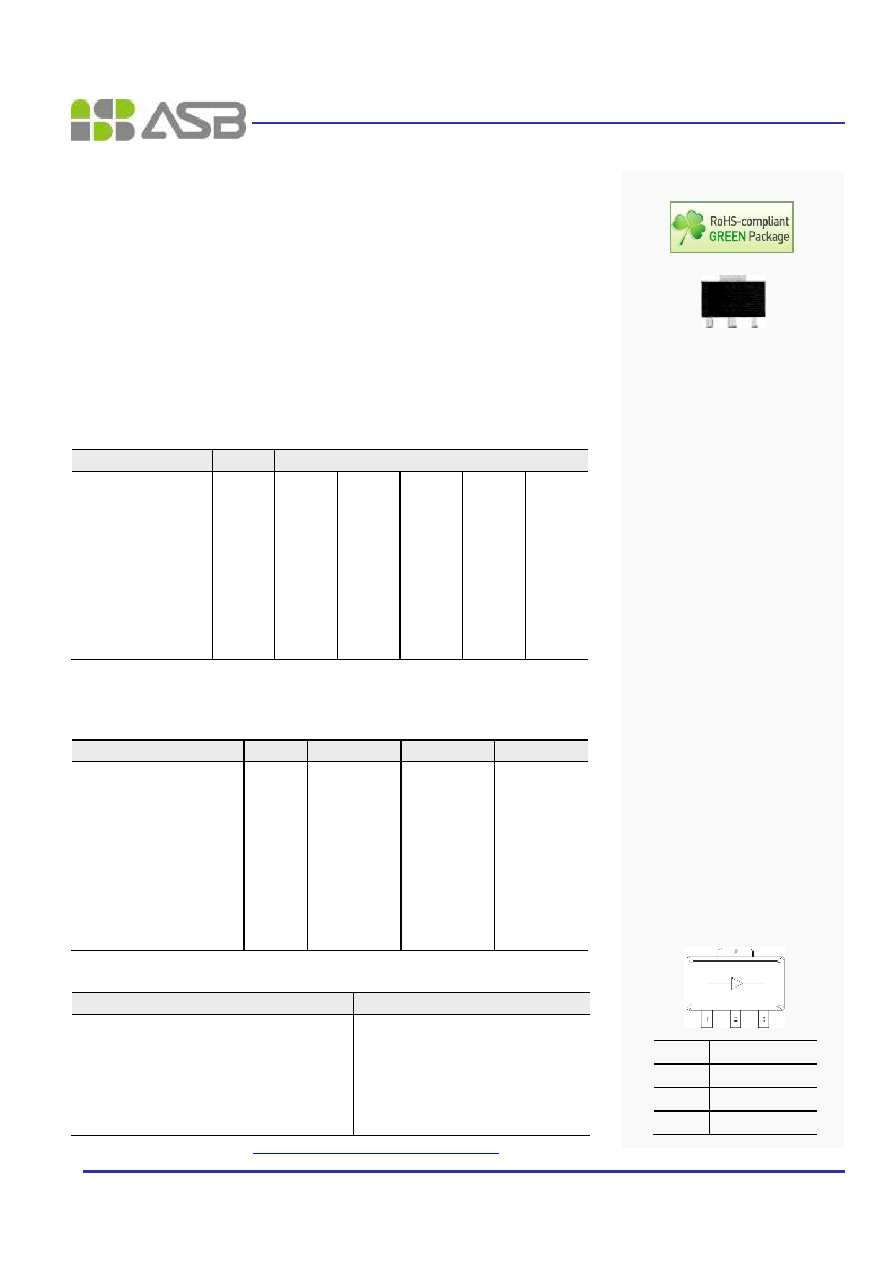

ASX415

250 ~ 4000 MHz MMIC Amplifier

4

Parameters

Units

Typical

Frequency

MHz

900

2000

2000

2000

2600

Gain

dB

20.0

14.5

14.3

14.0

11.5

S11

dB

-14

-7

-7

-7

-7

S22

dB

-13

-11

-11

-11

-10

dBm

42.5

46.0

42.0

40.0

37.0

Noise Figure

dB

4.2

5.6

4.6

4.1

4.2

Output P1dB

dBm

29.0

29.0

27.0

26.5

29.0

Current

mA

155

185

155

123

155

Device Voltage

V

+5.00

+5.30

+5.00

+4.75

+5.00

1) OIP3 is measured with two tones at an output power of +8 dBm/tone @ +5.30 V, +6 dBm/tone @ +5.00 V, +4 dBm/tone @ +4.75 V

separated by 1 MHz.

Parameters

Units

Min

Typ

Max

Testing Frequency

MHz

2000

Gain

dB

13.5

14.3

S11

dB

-9

S22

dB

-11

Output IP3

dBm

40

42

Noise Figure

dB

4.6

Output P1dB

dBm

26.5

27.0

Current

mA

140

155

170

Device Voltage

V

+5

Parameters

Rating

Operating Case Temperature

-40 to

85 C

Storage Temperature

-40 to

150 C

Device Voltage

+6 V

Operating Junction Temperature

+150

C

Input RF Power (Continuous)*

+22 dBm

Thermal Resistance

24

C/W

* Please find the max. input power data from http://www.asb.co.kr/pdf/Maximum_Input_Power_Analysis.pdf

Features

Description

Typical Performance

Absolute Maximum Ratings



14 dB Gain at 2000 MHz



27 dBm P1dB at 2000 MHz



42 dBm OIP3 at 2000 MHz



ACLR @ WCDMA 4FA: -51 dBc

@ Pout = +13 dBm, +/- 5 MHz offset



MTTF > 100 Years



Single Supply

The ASX415, a power amplifier MMIC, has a high

linearity, high gain, and high efficiency over a wide

range of frequency, being suitable for use in both

receiver and transmitter of telecommunication sys-

tems up to 4 GHz. The amplifier is available in a

SOT89 package and passes through the stringent

DC, RF, and reliability tests.

Application Circuit



IF (433 ~ 444 MHz)



CDMA



Satellite Phone



WCDMA



WiMAX



LTE (2300 ~ 2700 MHz)

Product Specifications

ASX415

Package Style: SOT89

Pin Configuration

Pin No.

Function

1

RF IN

2

GND

3

RF OUT / Bias
