CP20.241-R1, CP20.241-R2,

CP20.241-R3

CP-Series

June 2017 / Rev. 0.1 DS-CP20.241-R2-EN

All parameters are typical values specified at 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.

www.pulspower.com Phone +49 89 9278 0

Germany

23/30

P R E L I M I N A R Y

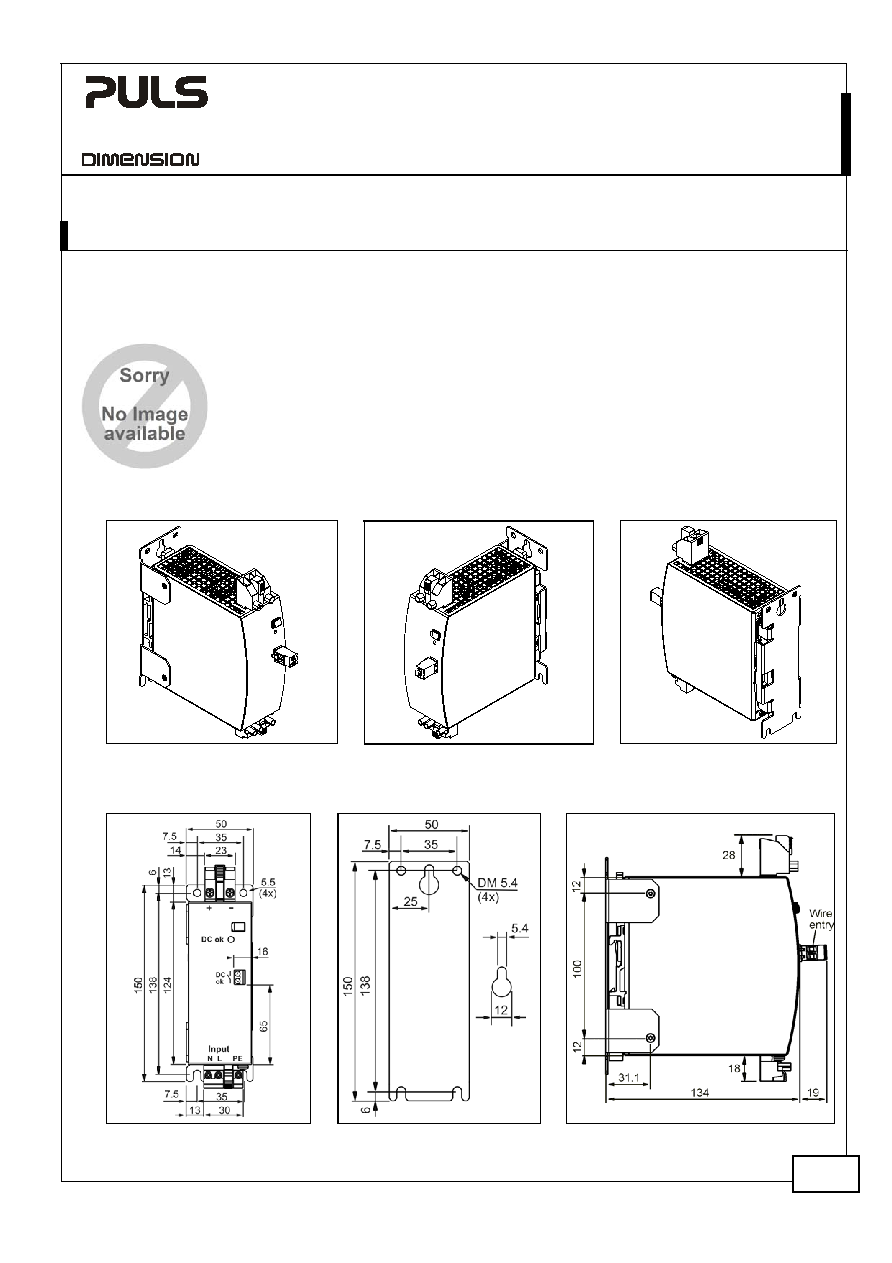

This bracket is used to mount the devices on a wall/panel without utilizing a DIN-Rail. It is

suitable for the CP20.241-R1, CP20.241-R2 and CP20.241-R3.

The bracket can be mounted without detaching the DIN-rail brackets.

Fig. 24-1 Isometric view

(Picture shows the CP20.241-R2)

Fig. 24-2 Isometric view-

(Picture shows the CP20.241-R2)

Fig. 24-3 Isometric view

(Picture shows the CP20.241-R2)

Fig. 24-4 Wall/panel mounting,

front view

(Picture shows the CP20.241-R2)

Fig. 24-5 Hole pattern for wall

mounting

Fig. 24-6 Wall/panel mounting,

side view

(Picture shows the CP20.241-R2)
