CP20.241-R1, CP20.241-R2,

CP20.241-R3

CP-Series

June 2017 / Rev. 0.1 DS-CP20.241-R2-EN

All parameters are typical values specified at 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.

www.pulspower.com Phone +49 89 9278 0

Germany

15/30

P R E L I M I N A R Y

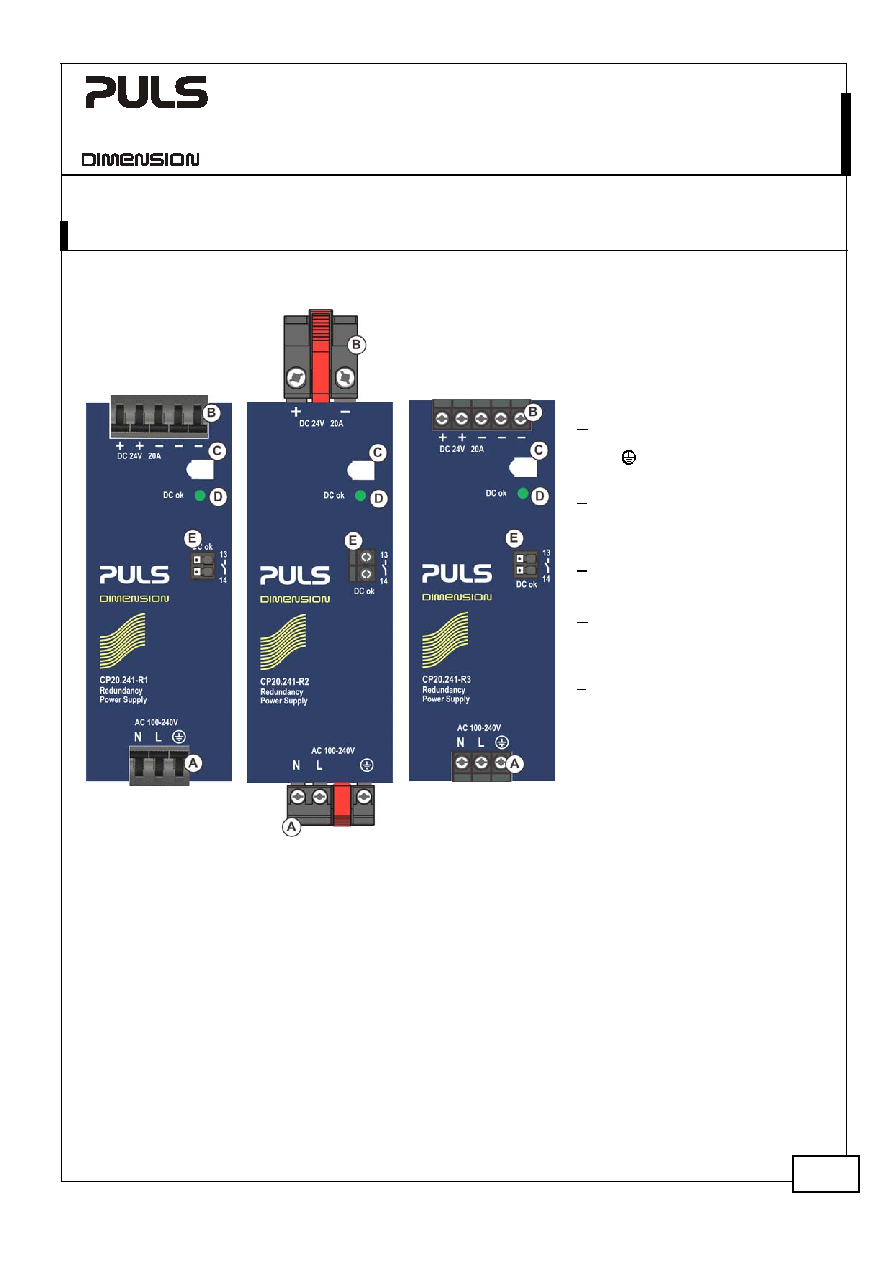

Fig. 15-1 Front side

CP20.241-R1

Fig. 15-2 Front side

CP20.241-R2

Fig. 15-3 Front side

CP20.241-R3

A

Input Terminals

N, L

Line input

PE (Protective Earth) input

B

Output Terminals

+

Positive output

–

Negative (return) output

C

Output voltage potentiometer

See chapter 25.2.

D DC-OK LED (green)

On, when the output voltage is above

22V.

E

DC-OK Relay Contact

The DC-OK relay contact is

synchronized with the DC-OK LED.

See chapter 8 for details.
