1 / 1 page

1 of 1

071999

SPECIAL FEATURES

§ 16384 bits of read/write nonvolatile memory

§ 256-bit scratchpad ensures integrity of data

transfer

§ Overdrive mode boosts communication to

142 kbits per second

§ Memory partitioned into 256-bit pages for

packetizing data

§ Data integrity assured with strict read/write

protocols

§ Operating temperature range from -40

°C to

+70

°C

§ Over 10 years of data retention

COMMON iButton FEATURES

§ Unique, factory-lasered and tested 64-bit

registration number (8-bit family code + 48-

bit serial number + 8-bit CRC tester) assures

absolute traceability because no two parts are

alike

§ Multidrop controller for MicroLANTM

§ Digital identification and information by

momentary contact

§ Chip-based data carrier compactly stores

information

§ Data can be accessed while affixed to object

§ Economically communicates to bus master

with a single digital signal at 16.3k bits per

second

§ Standard 16 mm diameter and 1-Wire

protocol ensure compatibility with iButton

family

§ Button shape is self-aligning with cup-

shaped probes

§ Durable stainless steel case engraved with

registration number withstands harsh

environments

§ Easily affixed with self-stick adhesive

backing, latched by its flange, or locked with

a ring pressed onto its rim

§ Presence detector acknowledges when reader

first applies voltage

§ Meets UL#913 (4th Edit.); Intrinsically Safe

Apparatus, approved under Entity Concept

for use in Class I, Division 1, Group A, B, C

and D Locations (application pending)

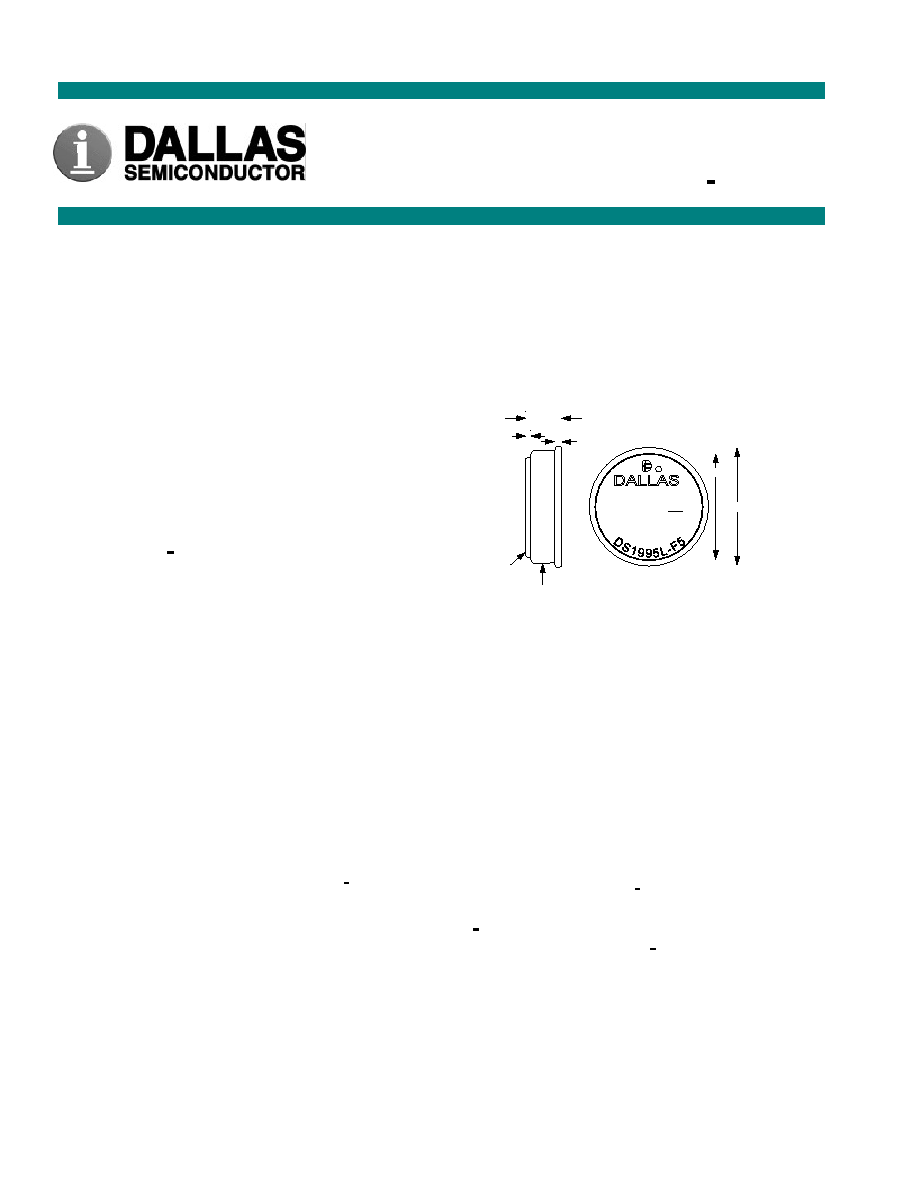

F5 MICROCAN

TM

All dimensions are shown in millimeters.

ORDERING INFORMATION

DS1995L–F5

F5 MicroCan

EXAMPLES OF ACCESSORIES

DS9096P

Self-Stick Adhesive Pad

DS9101

Multi-Purpose Clip

DS9093RA

Mounting Lock Ring

DS9093F

Snap-In Fob

DS9092

iButton Probe

iButton DESCRIPTION

The DS1995 Memory iButton operates nearly

identically to the DS1996. The main differences

are: 16 kbits of memory organized as 64 pages of

32 bytes and a family code of 0A hexadecimal.

For further details please refer to the DS1996

data sheet.

DS1995

16-kbit Memory iButton

TM

www.dalsemi.com

DATA

GROUND

0.36

0.51

5.89

c

1993

YYWW REGISTERED RR

D0

7

0A

000000FBC52B

16.25

17.35
