VIPer0P
Application information
DocID028423 Rev 2
31/36

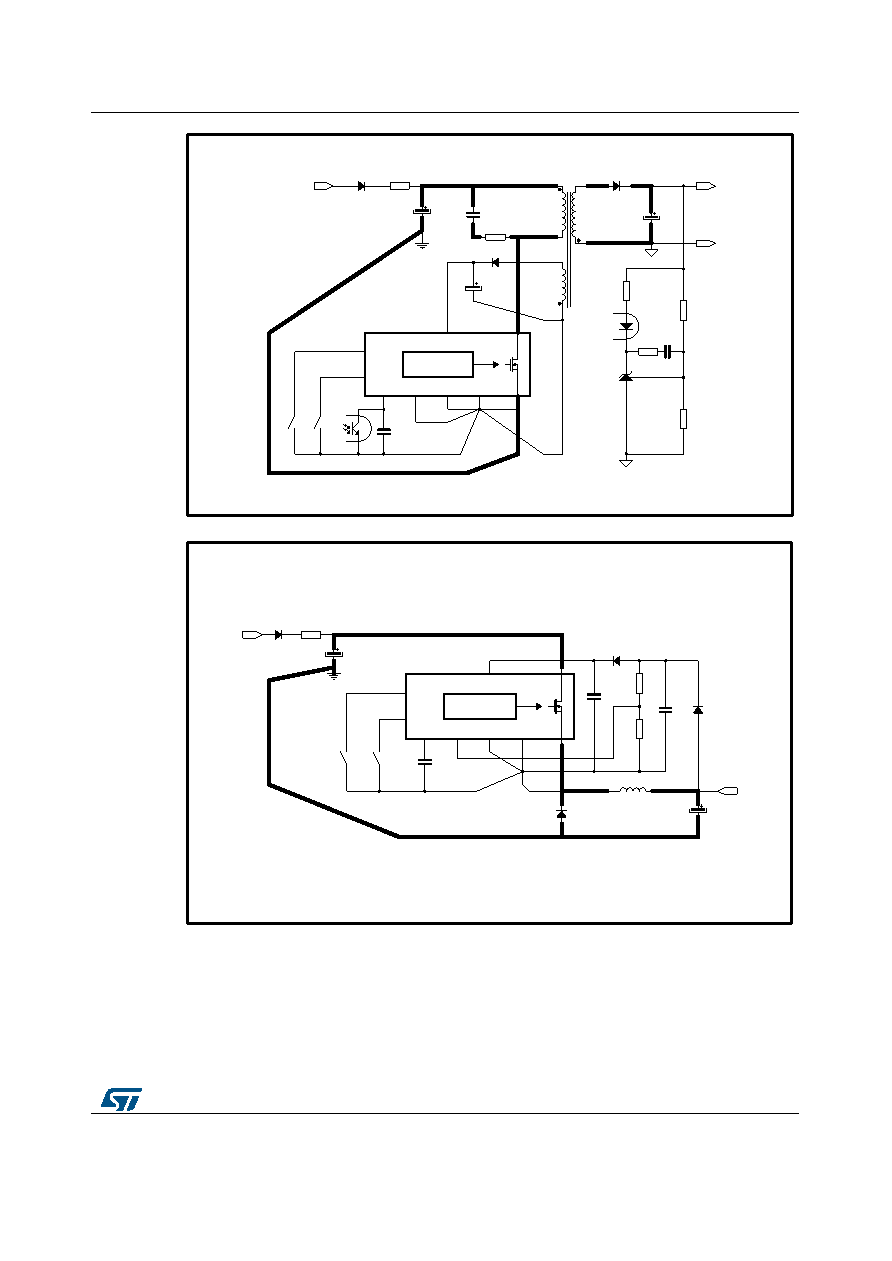

Figure 42: Recommended routing for flyback converter
Figure 43: Recommended routing for buck converter
~ AC
Vout
GND
Rcl
Dout
Ccl
Cs
Cout
Cin
Daux
R1
C1
OPTO
R2
OPTO
Din
T
Rin
COMP
FB
DRAIN
PGND
CONTROL
SGND
ON
OFF
VCC
EAGND
VIPER0P
GIPD030920151537MT
~ AC
Vout
COMP
FB
DRAIN
PGND
CONTROL
SGND
ON
OFF
VCC
EAGND
VIPER0P
Cs
C2
Din
C1
D
Cin
R1
Rin1
R2
Lout
Cout
Dout
Daux
GIPD030920151538MT
