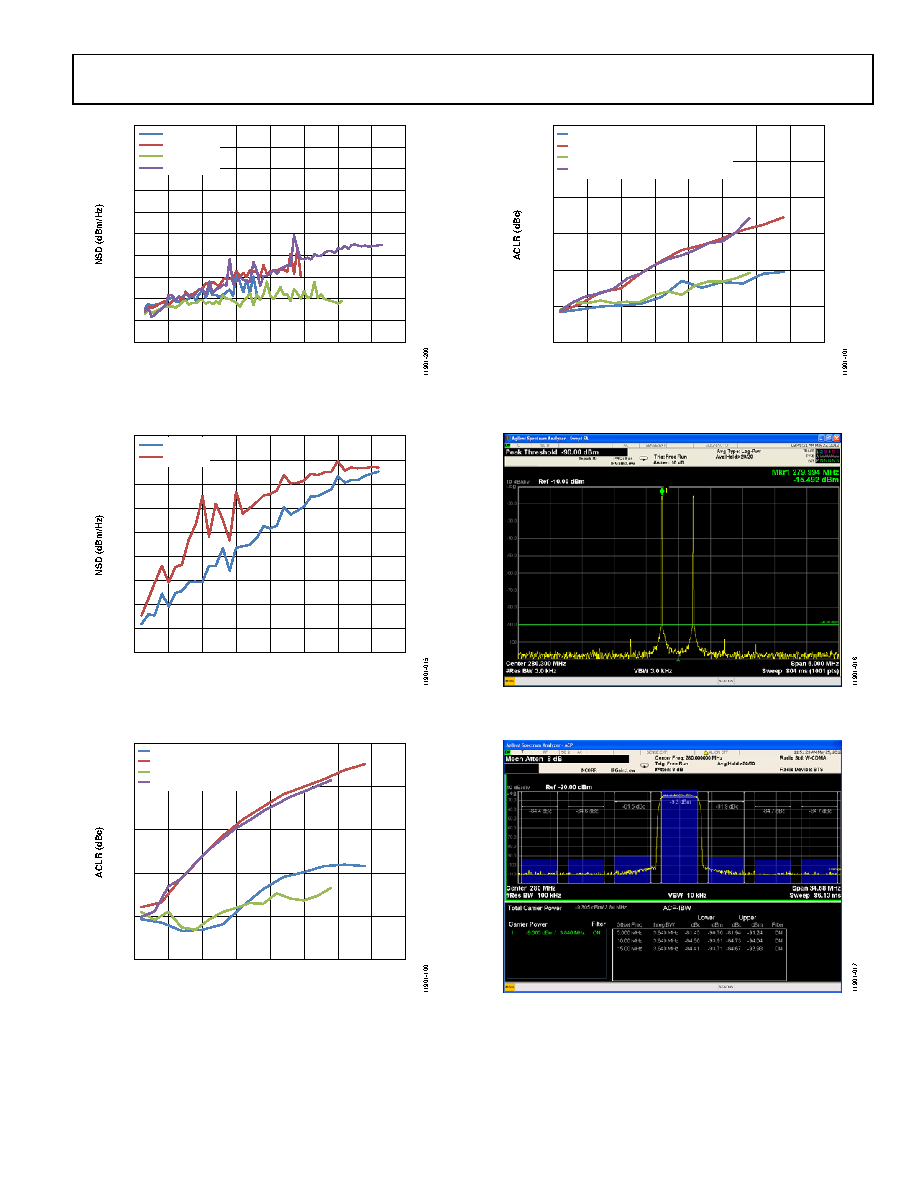

18 / 73 page  Data Sheet AD9142A Figure 15. 1C WCDMA NSD vs. fOUT, over fDAC Figure 16. Single Tone NSD vs. fOUT, fDAC = 1474.28 MHz, PLL On and Off Figure 17. 1C WCDMA, First Adjacent ACLR vs. fOUT, PLL On and Off Figure 18. 1C WCDMA, Second Adjacent ACLR vs. fOUT, PLL On and Off Figure 19. Two Tone, Third IMD Performance, IF = 280 MHz, fDAC = 1474.28 MHz Figure 20. 1C WCDMA ACLR Performance, IF = 280 MHz, fDAC = 1474.28 MHz –150 –152 –170 –168 –166 –164 –162 –160 –158 –156 –154 0 100 200 300 400 500 600 700 800 fOUT (MHz) 737.2MHz 983.04MHz 1228.8MHz 1474.56MHz –150 –152 –168 –166 –164 –162 –160 –158 –156 –154 0 100 200 300 400 500 600 700 800 fOUT (MHz) PLL OFF PLL ON –60 –85 –80 –75 –70 –65 0 100 200 300 400 500 600 700 800 fOUT (MHz) fDAC = 1474.56MHz, PLL OFF, 0dBFS fDAC = 1474.56MHz, PLL ON, 0dBFS fDAC = 1228.8MHz, PLL OFF, 0dBFS fDAC = 1228.8MHz, PLL ON, 0dBFS –60 –90 –85 –80 –75 –70 –65 0 100 200 300 400 500 600 700 800 fOUT (MHz) fDAC = 1474.56MHz, PLL OFF, 0dBFS fDAC = 1474.56MHz, PLL ON, 0dBFS fDAC = 1228.8MHz, PLL OFF, 0dBFS fDAC = 1228.8MHz, PLL ON, 0dBFS Rev. A | Page 17 of 72 |
|
