ADA4638-1
Data Sheet
Rev. 0 | Page 12 of 24
1m
0.01
0.1
1
10
100
1k
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
AV = +1
AV = +100
AV = +10
VSY =±2.5V
VCM =VSY/2

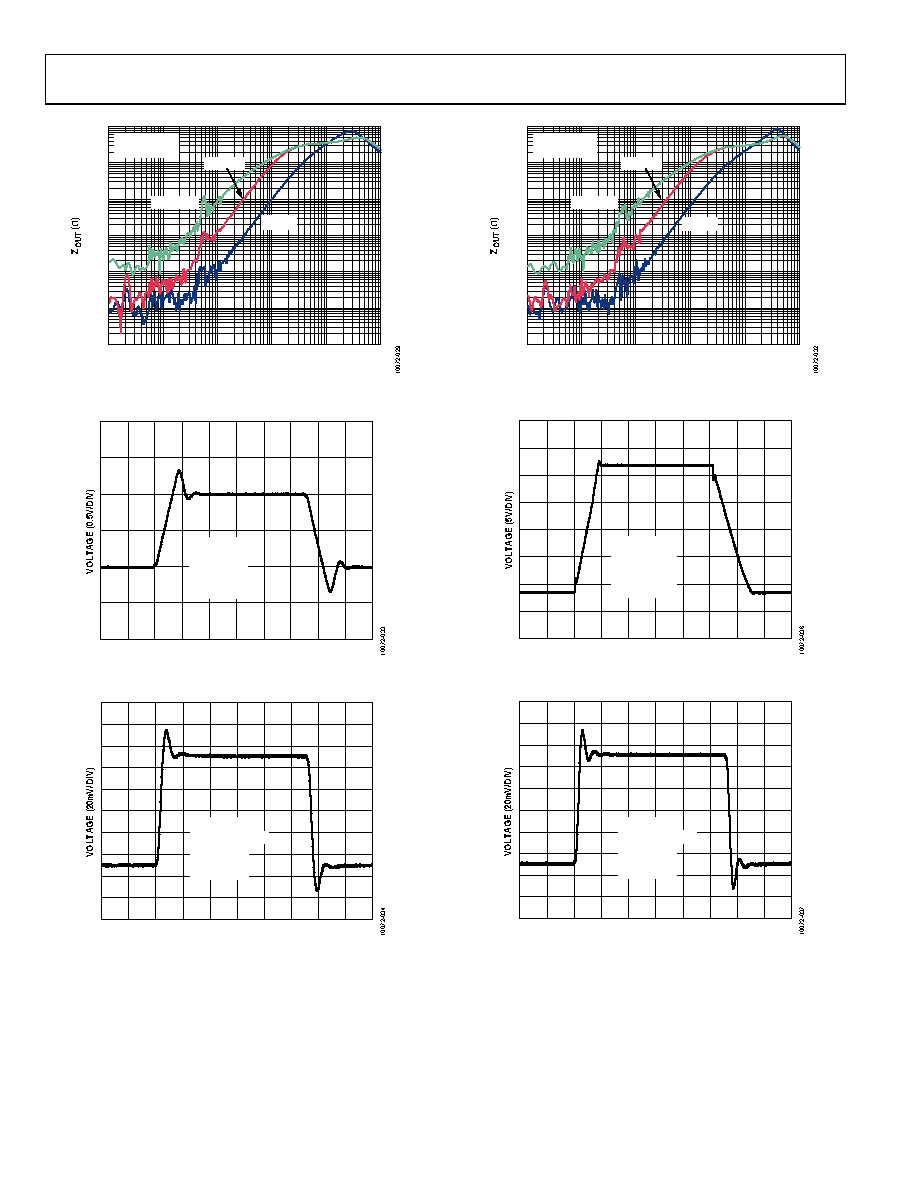

Figure 33. Closed-Loop Output Impedance vs. Frequency
TIME (1µs/DIV)
VSY = ±2.5V
VIN =1V p-p
AV = +1
RL =10kΩ
CL =100pF
Figure 34. Large Signal Transient Response
TIME (1µs/DIV)
VSY = ±2.5V
VIN =100mV p-p
AV = +1
RL =10kΩ
CL =100pF
Figure 35. Small Signal Transient Response
1m
0.01
0.1
1
10
100
1k
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
AV = +1
AV = +100
AV = +10
VSY = ±15V
VCM =VSY/2
Figure 36. Closed-Loop Output Impedance vs. Frequency
TIME (10µs/DIV)
VSY =±15V
VIN =24V p-p
AV = +1
RL =10kΩ
CL =100pF
Figure 37. Large Signal Transient Response
TIME (1µs/DIV)
VSY =±15V
VIN =100mV p-p
AV = +1
RL =10kΩ
CL =100pF
Figure 38. Small Signal Transient Response
