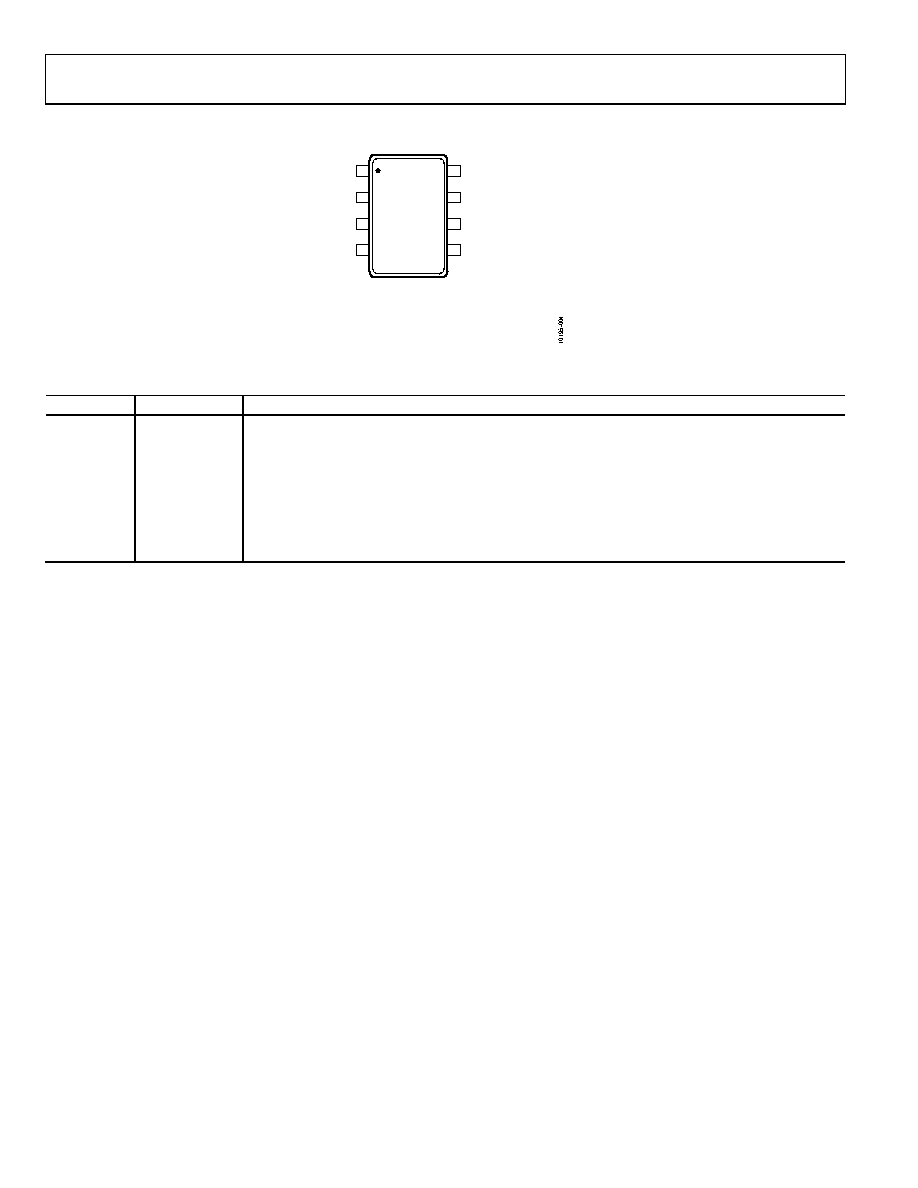

background image
AD8476
Data Sheet
Rev. B | Page 6 of 24
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
INN
1
+VS 2
VOCM
3
+OUT
4
INP
8
–VS
7
NC
6
–OUT
5
AD8476
TOP VIEW
(Not to Scale)
NOTES
1. PINS LABELED NC CAN BE ALLOWED
TO FLOAT, BUT IT IS BETTER TO CONNECT
THESE PINS TO GROUND. AVOID ROUTING
HIGH SPEED SIGNALS THROUGH THESE
PINS BECAUSE NOISE COUPLING MAY RESULT.
Figure 3. 8-Lead MSOP Pin Configuration
Table 4. 8-Lead MSOP Pin Function Descriptions
Pin No.
Mnemonic
Description
1
INN
Negative Input .
2
+VS
Positive Supply.
3
VOCM
Output Common-Mode Adjust.
4
+OUT
Noninverting Output.
5
−OUT
Inverting Output.
6
NC
This pin is not connected internally (see Figure 3).
7
−VS
Negative Supply.
8
INP
Positive Input.
