PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

NC

RSET

GND

NC

NC

NC = NO CONNECT

VCC

ENBL

VOUT

12

11

10

1

3

4

9

2

AD8290

TOP

VIEW

(Not to Scale)

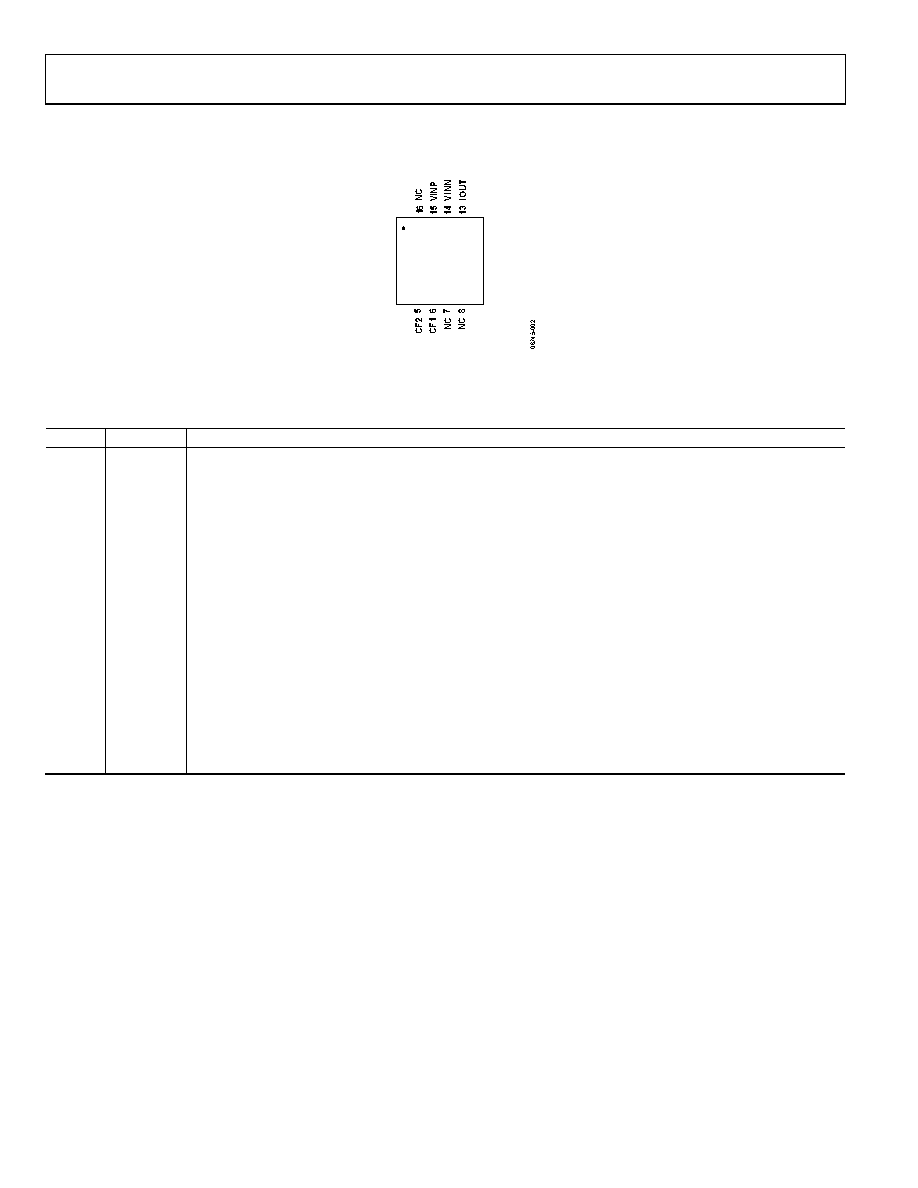

Figure 2. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

NC

Tie to Ground1 or Pin 16.

2

VCC

Positive Power Supply Voltage.

3

ENBL

Logic 1 enables the part, and Logic 0 disables the part.

4

VOUT

Open End of Internal 10 kΩ Resistor. Tie one end of external antialiasing filter capacitor (6.8 nF) to this pin, and tie

the other end to ground.1

5

CF2

6

CF1

7

NC

Tie to Ground.1

8

NC

Tie to Ground.1

9

NC

Tie to Ground.1

10

GND

Ground1 or Negative Power Supply Voltage.

11

RSET

12

NC

Tie to Ground.1

13

IOUT

14

VINN

Negative Input Terminal.

15

VINP

Positive Input Terminal.

16

NC

Tie to Ground1 or Pin 1.

17/Pad

NC

Pad should be floating and not tied to any potential.
