AD8290
Rev. B | Page 11 of 20
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
–16.0 –15.5 –15.0 –14.5 –14.0 –13.5 –13.0 –12.5 –12.0

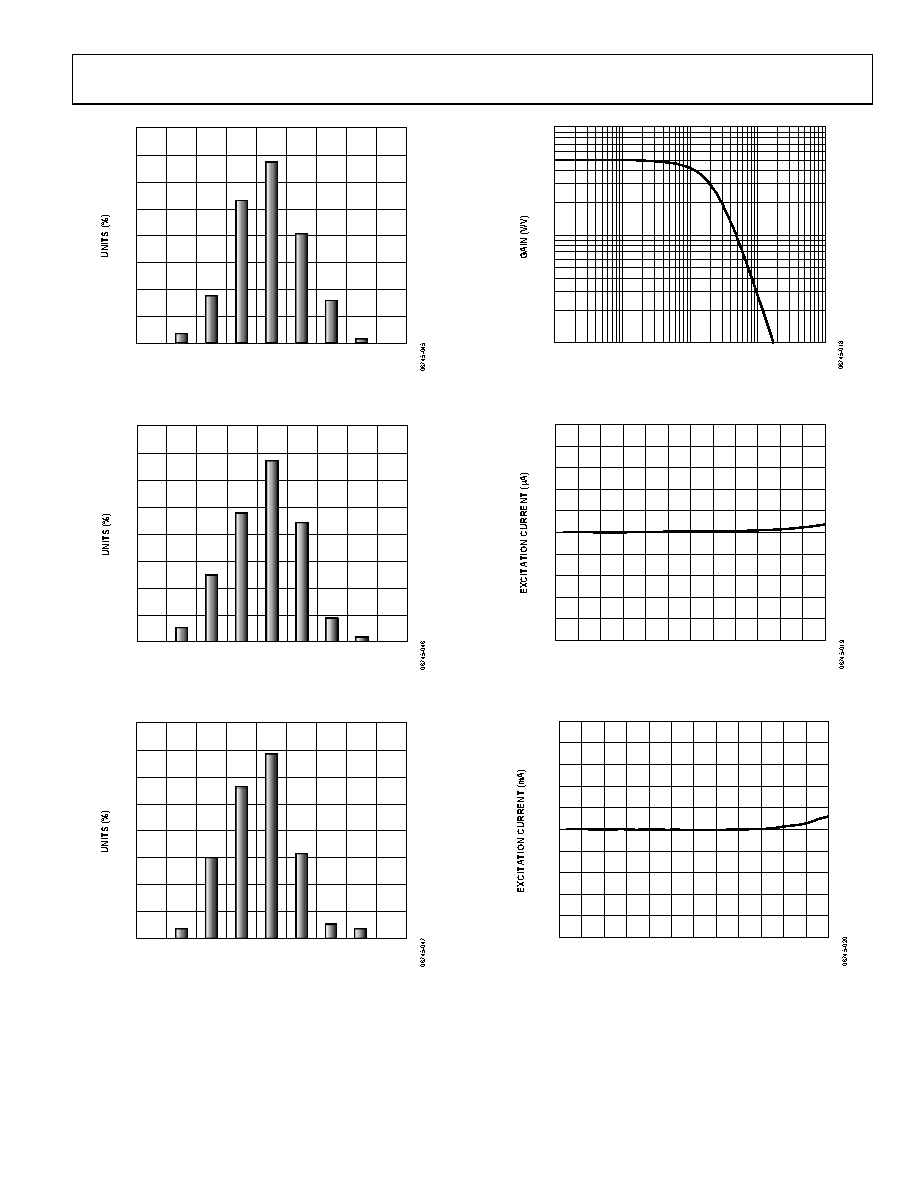

Figure 27. Gain Drift from −40°C to +85°C at 2.6 V Supply
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
–16.0 –15.5 –15.0 –14.5 –14.0 –13.5 –13.0 –12.5 –12.0
Figure 28. Gain Drift from −40°C to +85°C at 3.6 V Supply
DRIFT (ppm/°C)
0
5
10
15
20
25
30
35
40
–16.0 –15.5 –15.0 –14.5 –14.0 –13.5 –13.0 –12.5 –12.0
Figure 29. Gain Drift from −40°C to +85°C at 5.0 V Supply
FREQUENCY (Hz)
1
10
100
1
10
100
1k
10k
Figure 30. Frequency Response for Supply Range of 2.6 V to 5.0 V
(External CFILTER = 6.8 nF, Antialiasing Capacitor = 68 nF)
290
292
294
296
298
300
302
304
306
308
310
2.50 2.75 3.00 3.25 3.50 3.75 4.00 4.25 4.50 4.75 5.00 5.25 5.50
POWER SUPPLY (V)
Figure 31. Low Excitation Current vs. Power Supply
1.290
1.292
1.294
1.296
1.298
1.300
1.302
1.304
1.306
1.308
1.310
2.50 2.75 3.00 3.25 3.50 3.75 4.00 4.25 4.50 4.75 5.00 5.25 5.50
POWER SUPPLY (V)
Figure 32. High Excitation Current vs. Power Supply
