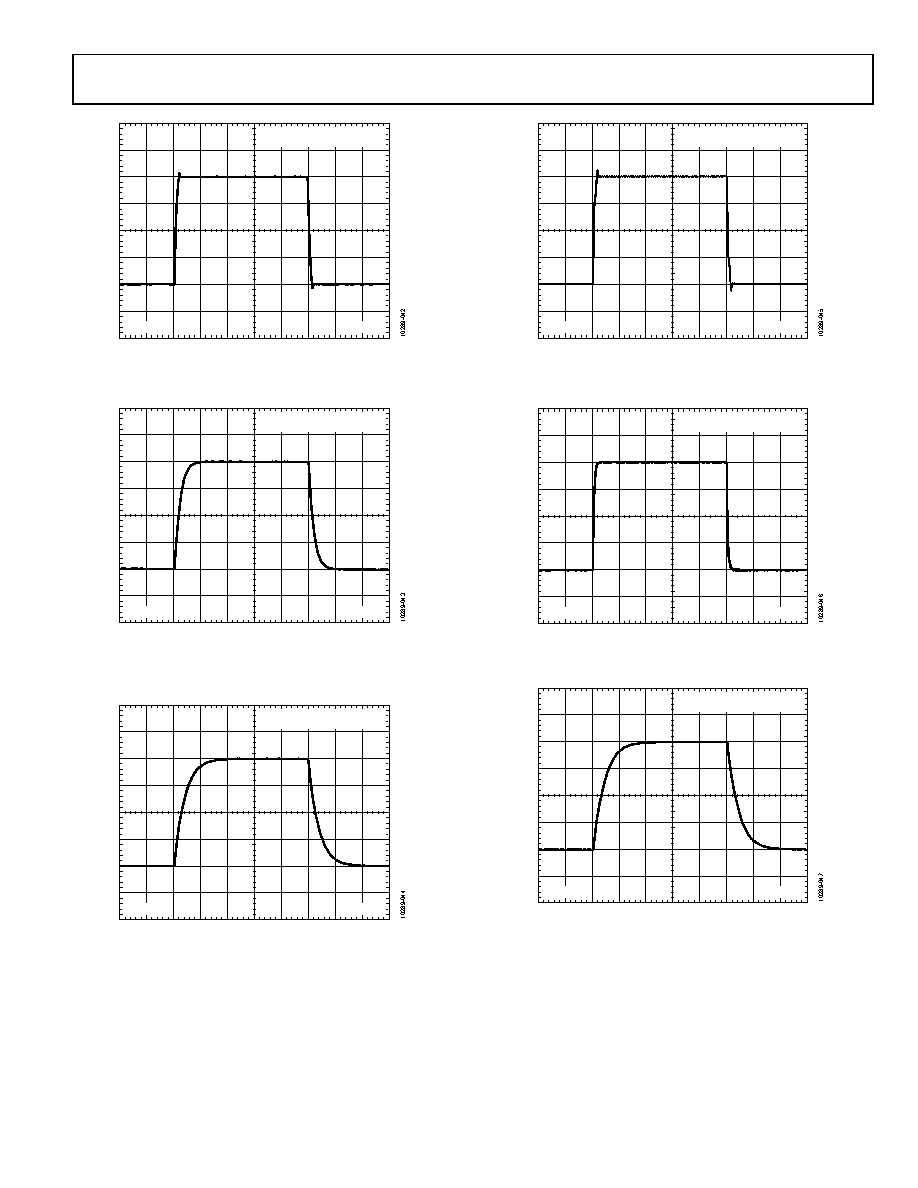

Data Sheet
AD8237
Rev. 0 | Page 15 of 28
G = 10
LOW BANDWIDTH MODE
1V/DIV
400µs/DIV
Figure 40. Large Signal Pulse Response, Low Bandwidth Mode,
G = 10, RL = 10 kΩ, CL = 10 pF
G = 100
LOW BANDWIDTH MODE
1V/DIV
400µs/DIV
Figure 41. Large Signal Pulse Response, Low Bandwidth Mode,
G = 100, RL = 10 kΩ, CL = 10 pF
G = 1000
LOW BANDWIDTH MODE
1V/DIV
2ms/DIV
Figure 42. Large Signal Pulse Response, Low Bandwidth Mode,
G = 1000, RL = 10 kΩ, CL = 10 pF
G = 10
HIGH BANDWIDTH MODE
1V/DIV
400µs/DIV
Figure 43. Large Signal Pulse Response, High Bandwidth Mode,
G = 10, RL = 10 kΩ, CL = 10 pF
G = 100
HIGH BANDWIDTH MODE
1V/DIV
400µs/DIV
Figure 44. Large Signal Pulse Response, High Bandwidth Mode,
G = 100, RL = 10 kΩ, CL = 10 pF
G = 1000
HIGH BANDWIDTH MODE
1V/DIV
400µs/DIV
Figure 45. Large Signal Pulse Response, High Bandwidth Mode,
G = 1000, RL = 10 kΩ, CL = 10 pF
