HSDP2110S, HSDP2111S, HSDP2112S, HSDP2113S, HSDP2114S, HSDP2115S

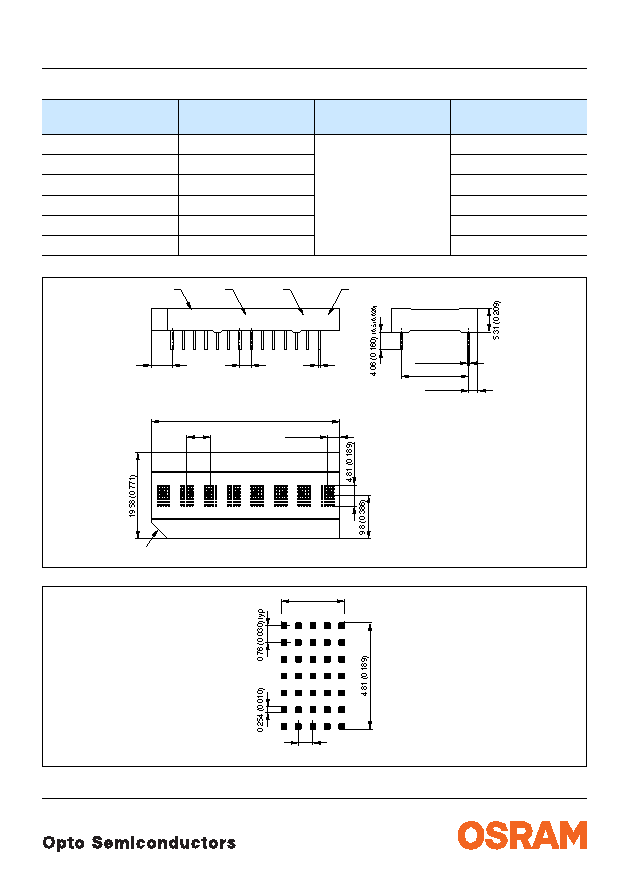

Package Outlines

Dimensions in inch (mm)

Enlarged Character Font

Dimensions in inch (mm)

Ordering Information

Type

Color of Emission

Character Height

[inch] ([mm])

Ordering Code

HSDP2110S

red

0.200 (5.10)

Q68000A8560

HSDP2111S

yellow

Q68000A8561

HSDP2112S

high efficiency red

Q68000A8562

HSDP2113S

green

Q68000A8563

HSDP2114S

high efficiency green

Q68000A8564

HSDP2115S

soft orange

Q68000A8907

IDOD5019

5.34 (0.210)

42.67 (1.680) max.

2.67 (0.105)

Pin 1

Indicator

15.24 (0.600)

0.3 (0.012) typ.

2.19 (0.086)

4.79 (0.189)

2.54 (0.100) typ.

0.46 (0.018) typ.

HDSP211X Z

OSRAM

YYWW

V

Y

Part Number

Code

EIA Date

Intensity

Code

Color Bin

IDOD5201

C1

C2

C3

C4

C5

R1

R2

R3

R4

R5

R6

R7

2.85 (0.112)

0.65 (0.026) typ.
