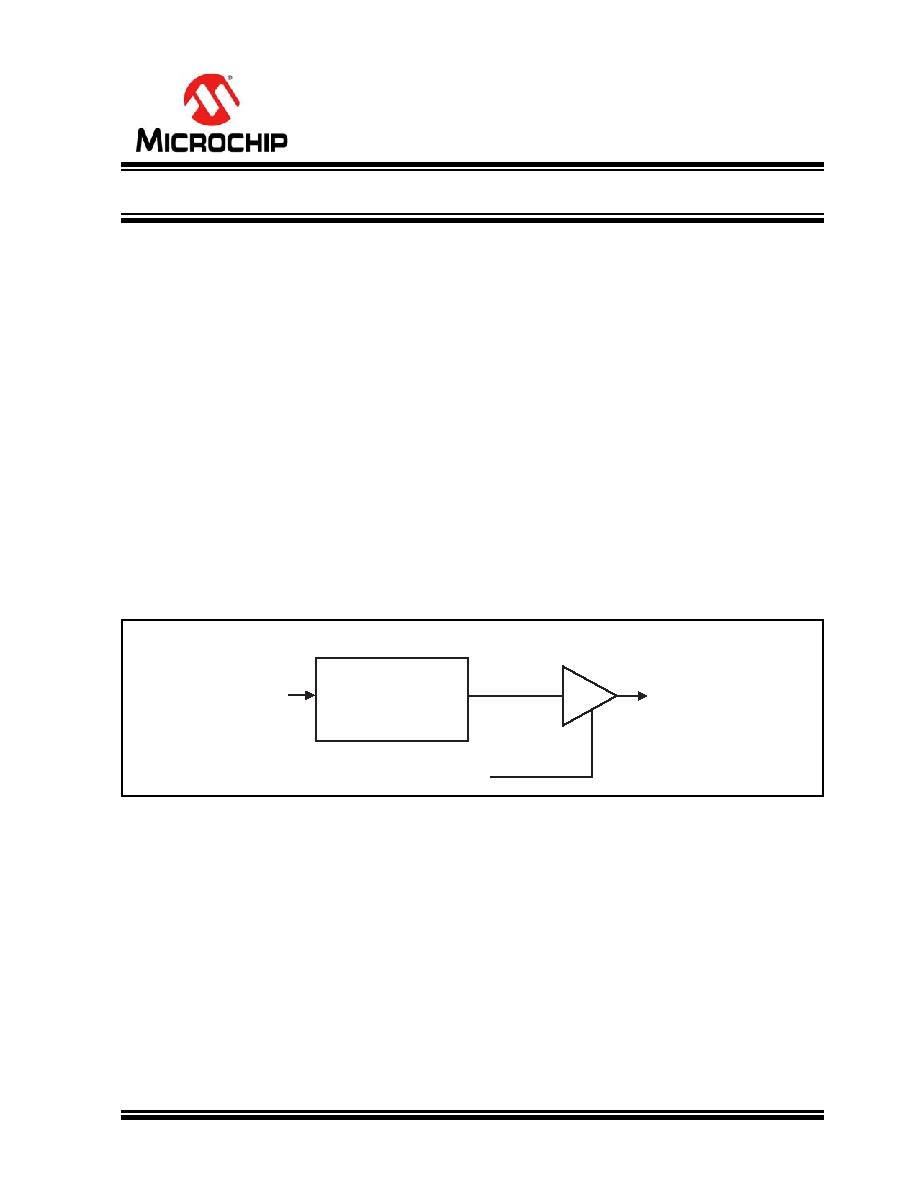

1 / 16 page

 2016 Microchip Technology Inc.

DS20005598A-page 1

PL130-07

Features

• LVCMOS Output

• Selectable Drive Capability

- Drive 15 pF or 30 pF Output Load

• Single AC-Coupled Input (Min. 100 mV Swing)

• Accepts LVCMOS or Sine Wave Inputs

• Input Range from 10 MHz to 200 MHz

• OE High (PL130-07) or OE Low (PL130-07A)

Enable

• 2.5V to 3.3V Operation

• Available in 8-Pin SOIC, 8-Pin TSSOP and 3 mm

x 3 mm 16-Pin QFN

General Description

The PL130-07 is a low cost, high performance, high

speed, buffer that reproduces any input frequency from

10 MHz to 200 MHz. It provides an LVCMOS output

with 15 pF output load drive capability. Any input signal

with at least 100 mV swing can be used as reference

signal. This chip is ideal for conversion from sine wave

to LVCMOS.

Block Diagram

PL130-07

INPUT

AMPLIFIER

CLK_IN

CLK_OUT

OE

High Speed Translator Buffer to LVCMOS
