STRADA WHISPER BACKPLANE CONNECTORS

Applications

•

Servers & Storage

•

Switches

•

Routers

•

Optical Transport

•

Wireless infrastructure

Electrical Specifications

•

Power Sum FEXT is lower than -50 dB for system

implementation at 12.5 GHz

•

Insertion loss is less than 1dB and linear up to 20 GHz

•

Individual shielded pairs offer excellent signal integrity / EMI

performance

•

Little to no skew through high-speed differential pairs

•

Common mode impedance controlled throughout the

connector, including footprint and mating interface

•

Superior 25-Gbps electrical performance maintained even

in a 1.5mm unmated condition

•

No reliance on noise cancellation, unlike some competitive

products, which can be critical in high-speed applications

•

85-Ohm and 100-Ohm versions available

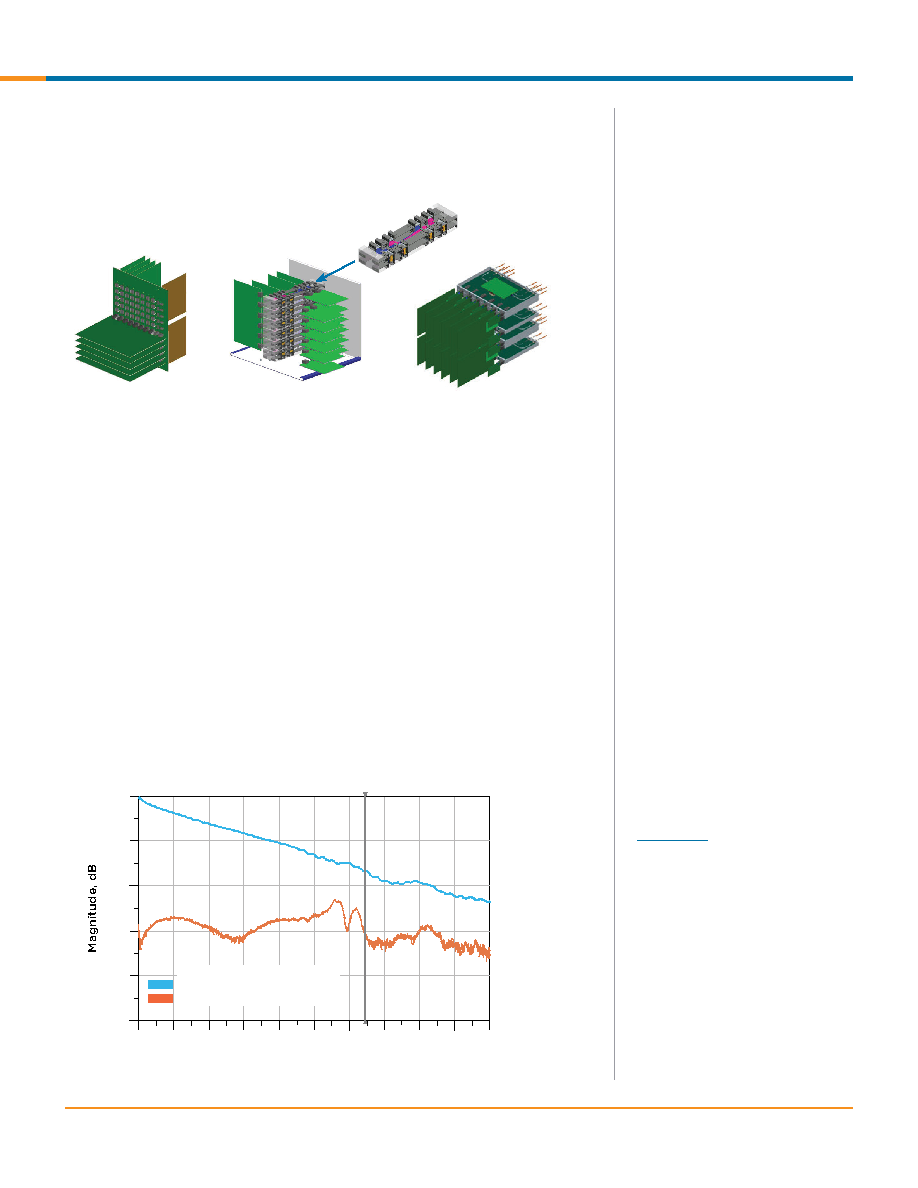

Cabled-Midplane

Orthogonal Midplane

PRODUCT OFFERINGS

TE offers the STRADA Whisper

product family in multiple versions:

standard, orthogonal (for mid-plane

structures), direct plug orthogonal

(DPO) and a cabled version that

allows you to run longer distances

with lower insertion loss than PCB

materials.

• Backplane Configuration

» 4.5mm right-angle receptacle

» 4.5mm vertical header

» 3.9m right-angle receptacle

» 3.9mm vertical header

• Orthogonal Midplane

configuration

» 3.9mm orthogonal right-angle

receptacle

» 3.9mm orthogonal header

• DPO Configuration

» 3.9mm DPO connector

» 3.9mm orthogonal right angle

receptacle

• Cable Assemblies

» 3.9mm cable assembly

• Embedded Cap Receptacles

(in development)

4.5mm products are offered in

100-Ohm and 3.9mm configurations

are offered in 85- and 100-Ohm

versions.

Support Tools:

S-parameter Models

Routing Designs

Application Instructions

Related Links:

Whitepaper

24

68

10

12

14

16

18

020

-80

-60

-40

-20

-100

0

Frequency, GHz

STRADA Whisper 40" Backplane Link

@12.89GHz

Insertion Loss:

-33.3dB

Power Sum XTalk: -61.0dB

Direct Plug Orthogonal
