Powerful Debugging Aids (Continued)

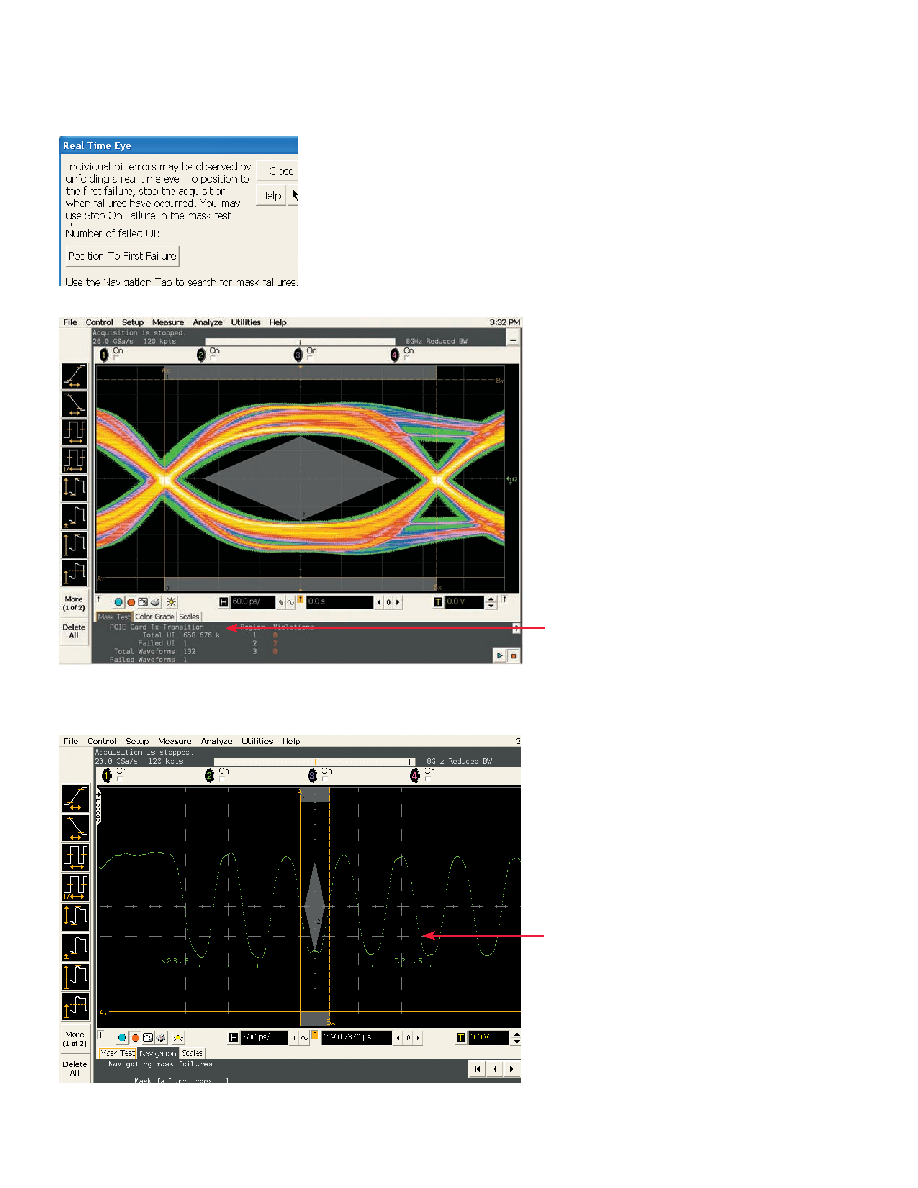

Figure 27. The E2688A allows you to show the specific waveform that caused an eye diagram failure.

Figure 26.

This eye fails after 658K

UIs are analyzed

Here you see the

specific waveform (and

10-bit code) that caused

the eye failure
