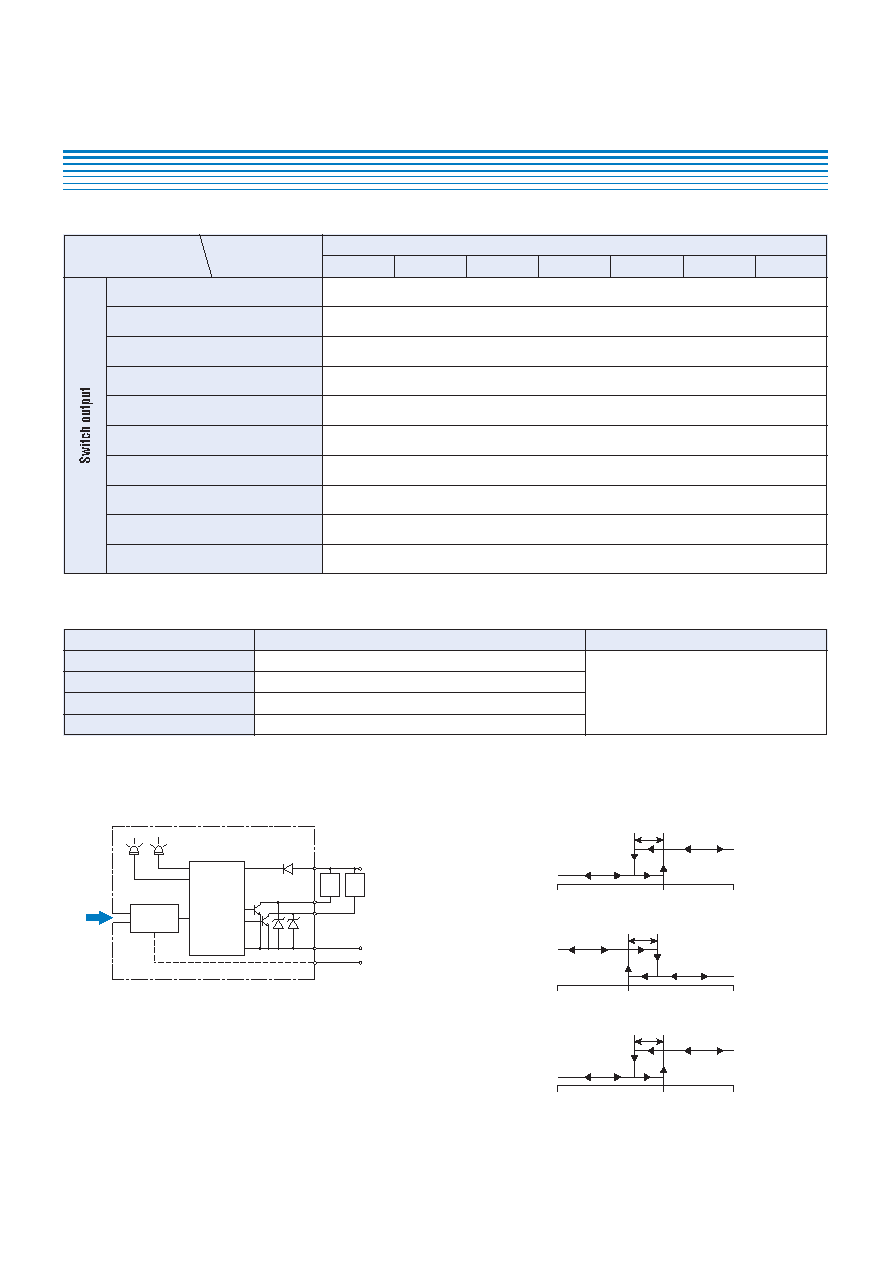

3 / 4 page

Load

S.Output1

Main circuit

Power

Sensor

Common

Shield

S.Output2

Load

ＬＥＤ Indicator

Pressure

OFF

Hysteresis

Set value

–98.1 kPa

Rated pressure

Barometic pressure

OFF

Hysteresis

Set value

98.1 kPa

Absolute vacuum

OFF

No. of output

Output interface

Setting method

Adjustable range

NPN open collector output

Adjustable by VR

Zero through rated pressure, minimum

PS83

PRESSURE SWITCHES

■ ENVIRONMENTAL CHARACTERISTICS

Test item

Test conditions (At 25

± 5 °C)

Permissible change

Vibration

10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s2, 3 directions for 2 hours each

490 m/s2, 3 directions for 3 times each

0 ~ Rated pressure, 106 cycles

40 °C, 90 ~ 95 %RH, 240 hrs.

Switch output setting:

± 1 %F.S. maximum

Shock

Pressure cycling

Moisture resistance

Accuracy

0 ~ 50 °C (Reference temp.: 25 °C)

Hysteresis

Switching capacity

Residual voltage

Response

30 V DC 80 mA maximum

0.8

Approx. 2

V maximum

± 3

% F.S. maximum

% F.S.

Display

Red LED (lighted when output is ON.)

Item

Model number

PS83

501G

102G

102V

352G

103G

351A

102A

■ INTERNAL ELECTRICAL SCHEMATICS

O PS83-102V

O PS83- ＊＊＊ G

O PS83- ＊＊＊ A

■ SWITCHING OPERATION

※ 2 switches show same performance.
