AS09208AR-R datasheet(1/2 Pages) PUI

номер детали	AS09208AR-R

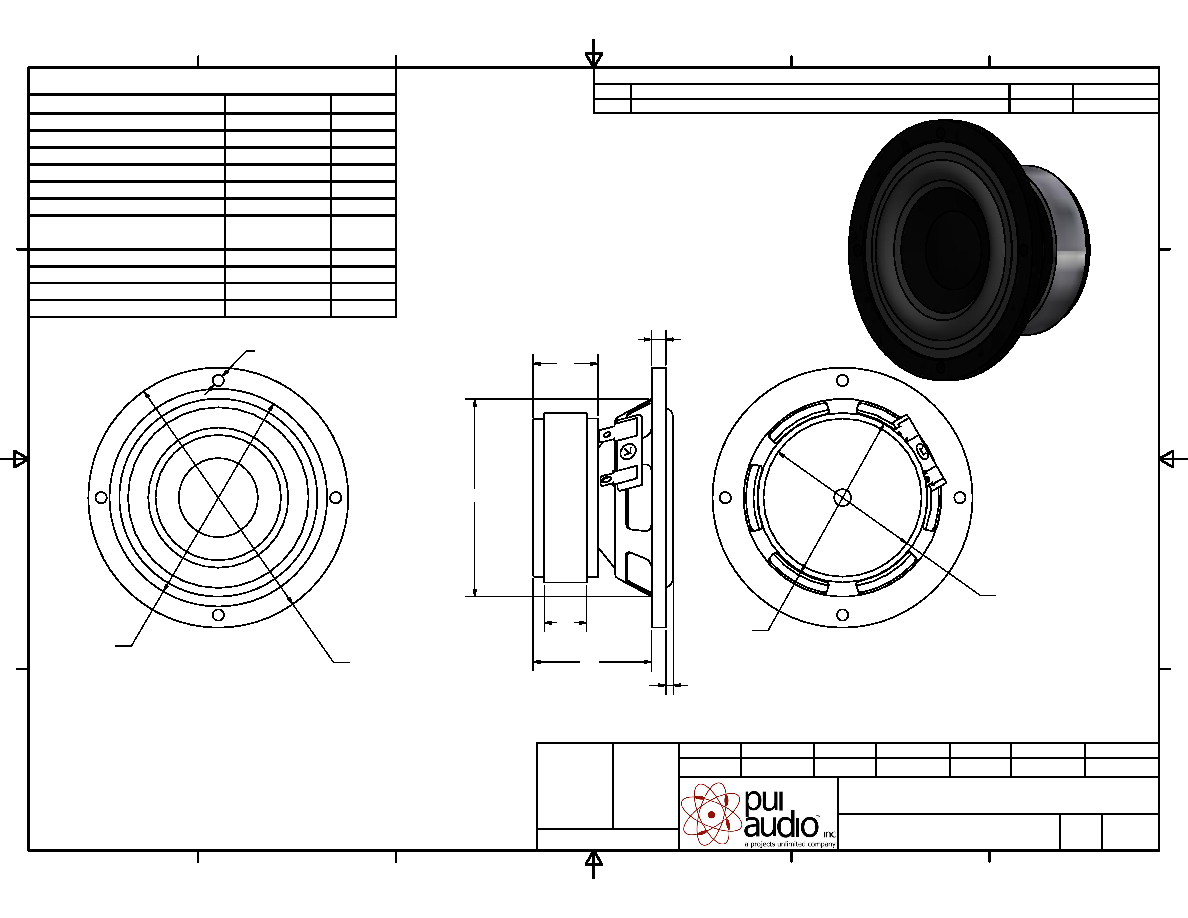

подробное описание детали	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	2 Pages

Scroll/Zoom	100%

производитель	PUI [Projects Unlimited, Inc.]

домашняя страница	http://www.pui.com

Logo

1 / 2 page

Speaker

AS09208AR-R

M.V.

B.R.

7/27/2016

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

7/27/2016

Date

7/27/2016

Date

7/27/2016

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS09208AR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

7/27/2016

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

10

W

MAX INPUT POWER

15

W

IMPEDANCE

8 15%

OHM

OUTPUT SPL @ 2.83V/1M

82

3

dBA

RESONANT FREQUENCY

90

20%

Hz

FREQUENCY RANGE

90 ~ 15,000

Hz

FRAME MATERIAL

STAMPED

STEEL

-

CONE MATERIAL

ALUMINUM

-

MAGNET MATERIAL

FERRITE

-

OPERATING TEMPERATURE

-20~ +60

C

WEIGHT

360

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

4 (X4)

92

77

70

5

15

23

42

55.9

60

2.6
